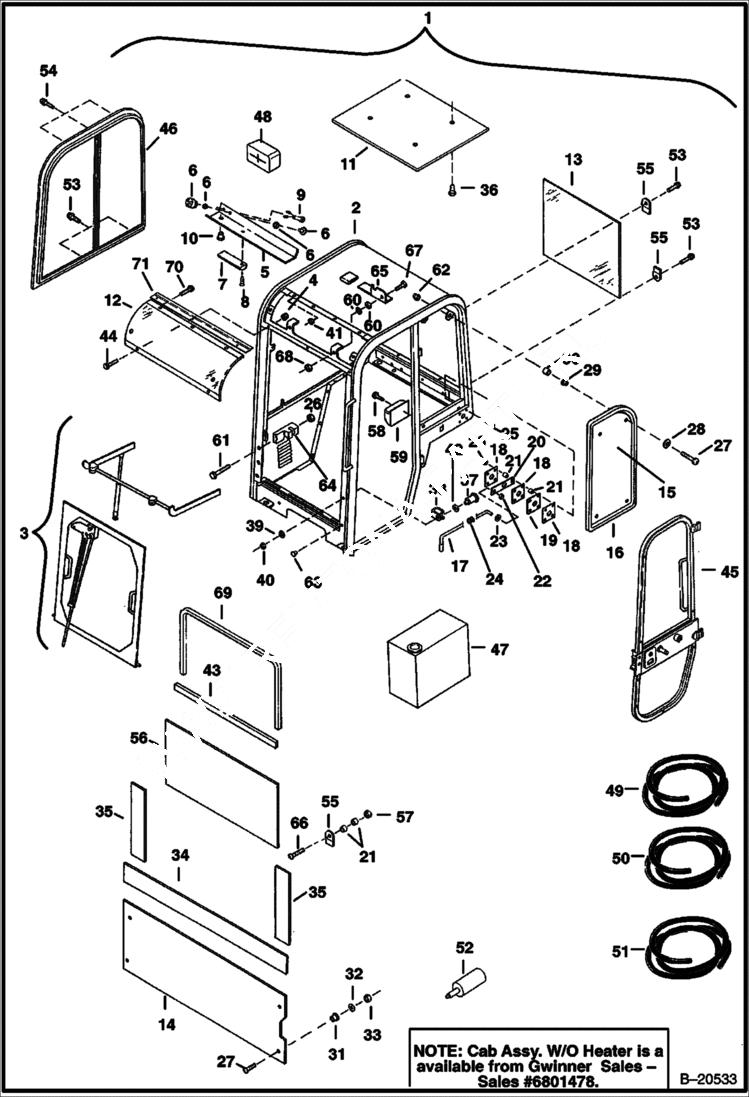

Запчасти Bobcat 331 OPERATOR CAB MAIN FRAME

1

CAB ASSY See Illustration OPERATOR CAB/ D2251 - NLA - W/Ref. 2-48 and all items on Ill. D2251, D2320, B20208, C3343 or D2314, & E2379 - Order 6810477

2

CAB NLA - Weldment - Order 6801477 - Was 6628839 - A

2

6801477

CAB Weldment

3

WINDOW See Illustration OPERATOR CAB/ D2251 - front

4

6664103

NUT Acorn #10

5

6628898

PLATE Was 6664564 - A

6

6669315

SWITCH Wiper/washer - Was 6664563 - A

7

6664084

LIGHT

7

6665367

BULB Was 6655055 - A

8

6664049

SCREW Dome light mounting

9

6513469

HOLDER Was 6654166 - A

9

6656270

FUSE 5amp.

10

6648358

GROMMET

11

6628899

INSULATION Headliner - Was 6664161 - A

12

6806131

WINDOW Curved - Was 6664176 - A

13

6664172

WINDOW Rear - Seal use Ref. 52

14

6664175

GLASS Lower front - W/Mtg Holes & Notch

15

6664171

GLASS Left

16

SEAL NLA - 105'' long (2680mm) - Order Ref. 49

17

6628900

ROD Door release - Was 6664137 - A

18

6628902

PLATE Was 6664134 - A

19

6664146

SEAL

20

6628901

LATCH Door hold open - Was 6664135 - A

21

6664085

BUSHING

22

6660979

NUT Push on

23

6660980

RETAINER Push on

24

6654147

SPRING

25

6664068

BOLT 1 1/4'' long

26

7031515

NUT Acorn 1/4'' - Was 6664056 - A

27

6648410

BOLT 3/4''

28

6664090

WASHER

29

6800788

GROMMET Was 6664087 - A

30

6664086

SPACER

31

6664089

GROMMET

32

6664065

WASHER

33

7031515

NUT Acorn 1/4'' - Was 6664056 - A

34

SEAL NLA - 36'' (914mm) long - Order Ref. 50

35

SEAL NLA - 12'' (305mm) long - Order Ref. 50

36

6664559

FASTENER Insulation

37

6664080

PIN Door striker - w/internal threads

37

6649483

STRIKER BOLT Door striker - w/external threads - Was 6654170 - A

38

6664083

COVER

39

27E6

WASHER 5 Was 25E000017B - D

40

61D7

NUT Use W/Ref. 37 w/external threads - Was 61D000006B - D

40

6664046

BOLT Use W/Ref. 37 w/internal threads

41

6664562

GROMMET

42

6660975

GROMMET

43

SEAL NLA - 33'' (838mm) - Order Ref. 51 - See Note

44

6657095

BOLT 1/2''

45

DOOR ASSY. See Illustration OPERATOR CAB/ E2379

46

WINDOW ASSY. See Illustration OPERATOR CAB/ C3343 - right side

47

HEATER ASSY. See Illustration HEATER/ B20534

48

LIGHT NLA - Order 6668721 - Was 6664106 - A

48

6665700

SEALED BEAM for light 6664106

48

6664106

LAMP Was 6668722 - A

48

6668721

BULB Replacement bulb for 6668722

49

6664088

SEAL Bulk - Order Per Foot

50

6648416

SEAL BULK /FT Bulk - Order Per Foot

51

6664102

SEAL Bulk - Order Per Foot

52

6654148

SEALANT Window Rear - 10 oz. tube

53

6654152

BOLT #10 x 3/4'' long

54

6665386

SCREW #10 x 1-3/4'' long

55

6665366

RETAINER Glass

56

6668111

WINDOW Lower Front -No Hole-No Notch

56

6800637

WINDOW Lower Front - Used with replacement Cab Assy. 6801478 only

57

6664103

NUT Acorn - #10 - Was 12D000010B - B

58

58G806

SCREW

59

6664075

ASH TRAY

60

6630038

WASHER See Note

61

6664066

BOLT 2'' (51mm) Long - See Note

62

6670760

GRIP See Note

63

6670761

CAP Hole Plug - See Note

64

6800651

MOUNT Lower Glass - See Note

65

6801032

HANDLE L.H. Shown - See Note

65

6801033

LATCH R.H. not shown - See Note

66

6657095

BOLT #10 x 1/2'' - Early cabs only

66

6801188

SCREW #10 x 1''- Used with replacement Cab 6801478 Only - See Note

67

6800857

BOLT See Note

68

87D5

NUT See Note

69

SEAL NLA - 56'' (1422mm) long - Order Ref. 49 - See Note

70

26GM6016

SCREW

71

6805291

BRACKET
