Запчасти Bobcat 331 TRACKS (Steel) ACCESSORIES & OPTIONS

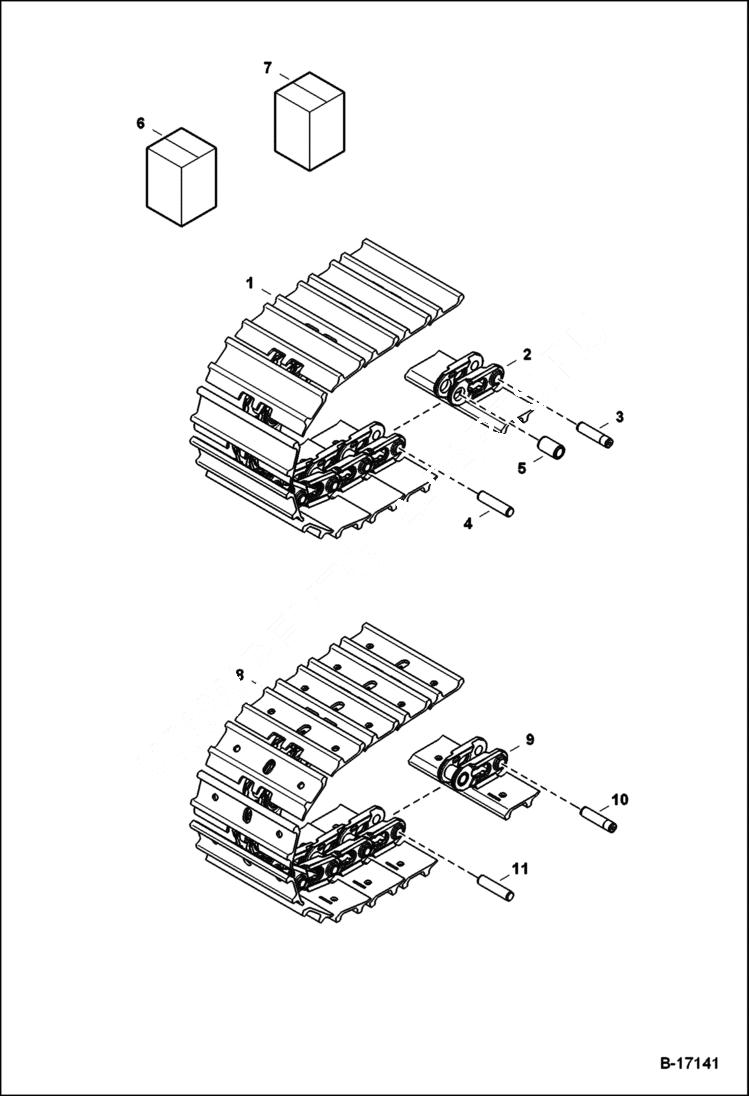

Схема запчастей Bobcat 331 - TRACKS (Steel) ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

TRACK ASSY. NLA - Steel W/Ref. 2, 4 & 5 - P/N is for (1) track. Also order Ref. 3 (1) per track - Order Ref. 8 - Was 6536161 - A

2

6536162

LINK qty. shown for 1 track

3

6805105

PIN Master - Press Fit qty. shown for 1 track - Was 6534248 - A

4

6805106

PIN Regular - Press Fit qty. shown for 1 track - Was 6535647 - A

5

6805098

BUSHING qty. shown for 1 track - Was 6534249 - A

6

KIT - NLA - Rubber Track - order components - Was 6800949 - A

7

KIT - NLA - Steel Track - order components - Was 6800951 - A

8

TRACK NLA - Berco - cast steel link track assy - Order track 6693493 - W/Ref. 9-11 - P/N is for (1) track - Was 6677638 - A

8

6693493

TRACK, STEEL welded steel link track assy - W/Ref. 9-11 - P/N is for 1 track

9

6677821

PAD for cast steel link track assy - quantity shown for 1 track

9

7008991

PAD for welded steel link track assy - quantity shown for 1 track

10

6677822

PIN for cast steel link track assy - quantity shown for 1 track

10

7008992

PIN for welded steel link track assy - quantity shown for 1 track

11

6677823

PIN, MASTER for cast steel link track assy - quantity shown for 1 track

11

7008993

PIN, MASTER for welded steel link track assy - quantity shown for 1 track
