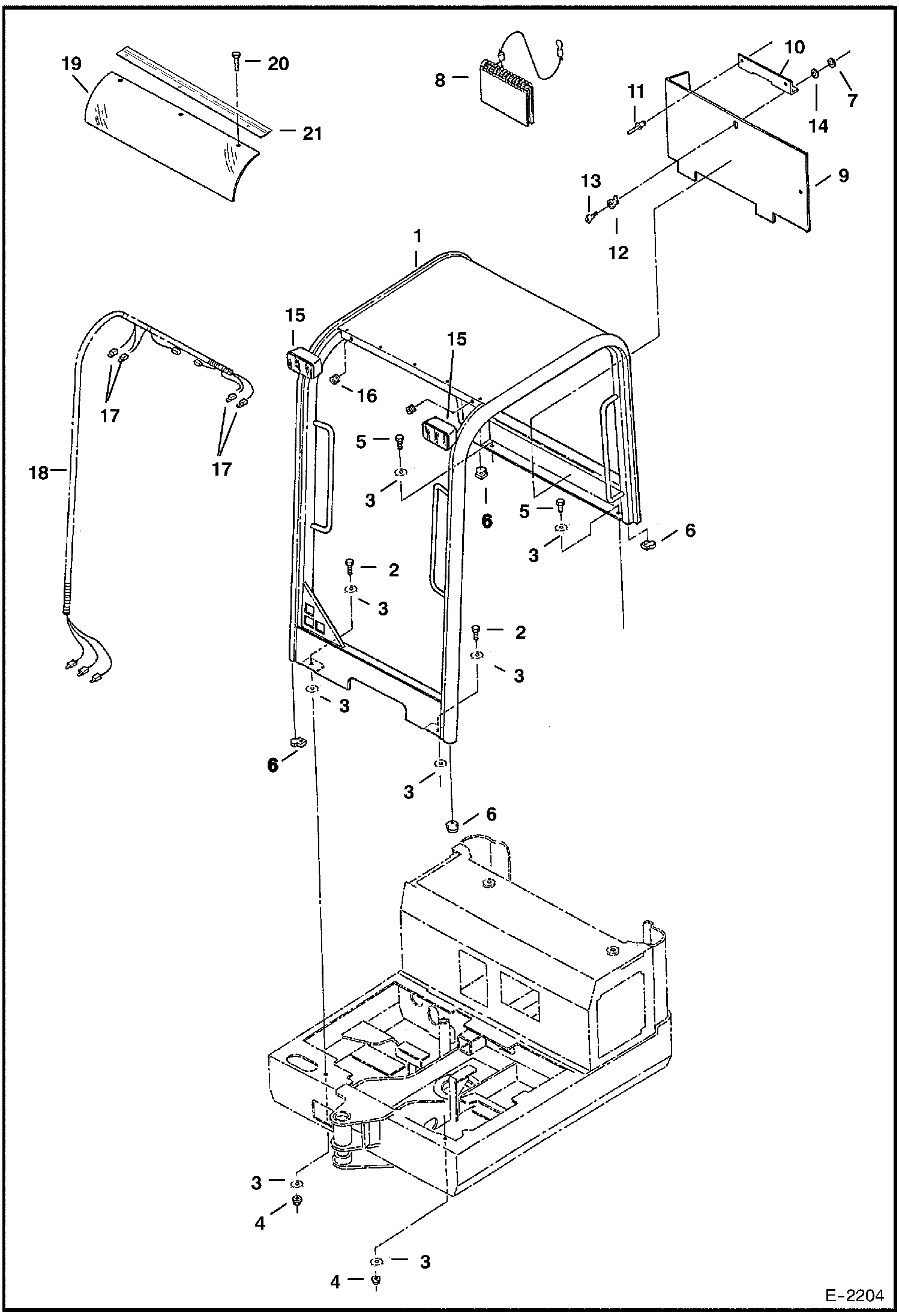

Запчасти Bobcat 331 CANOPY & MOUNTING MAIN FRAME

1

CANOPY SALES - See Note

2

7CM1240

SCREW

3

6808506

WASHER Was 6588177 - A

4

43DM12

NUT

5

7CM1225

BOLT

6

6807987

INSULATION Was 6589660 - A

7

6675843

NUT

8

6596919

HANDBOOK Operators - English

8

6596920

HANDBOOK Operators - Danish

8

6596921

HANDBOOK Operators - French

8

6596922

HANDBOOK Operators - German

8

6596924

HANDBOOK Operators - Italian

8

6596925

HANDBOOK Operators - Spanish

8

6596926

HANDBOOK Operators - Portuguese

8

6596927

HANDBOOK Operators - Dutch

8

6596928

HANDBOOK Operators - Japanese

8

6596929

HANDBOOK Operators - Norwegian

8

6596930

HANDBOOK Operators - Russian

8

6596931

HANDBOOK Operators - Swedish

8

6596932

HANDBOOK Operators - Finnish

8

6596933

HANDBOOK Operators - Greek

9

6589655

PANEL Storage - Canopy Models

9

6589656

PANEL Storage - Cab Models

10

6589657

ANGLE

11

6630207

RIVET 5

12

6674389

LOCK ASSY - Was 6661695 - A

13

6587458

KEY

14

6536802

WASHER

15

LIGHT NLA - Order 6668721 - Was 6664106 - A

15

6665700

SEALED BEAM for light 6664106

15

6664106

LAMP Was 6667822 - A

15

6668721

BULB replacement bulb for 6668722 - Was 6667821 - D

16

6664562

GROMMET Was 17EM00120B - B

17

6519548

CONNECTOR electrical

18

6628808

HARNESS canopy - Also Order Ref. 17

19

6806131

WINDOW Was 6595792 - A

20

6589675

SCREW

20

26GM6016

SCREW

21

6805291

BRACKET
