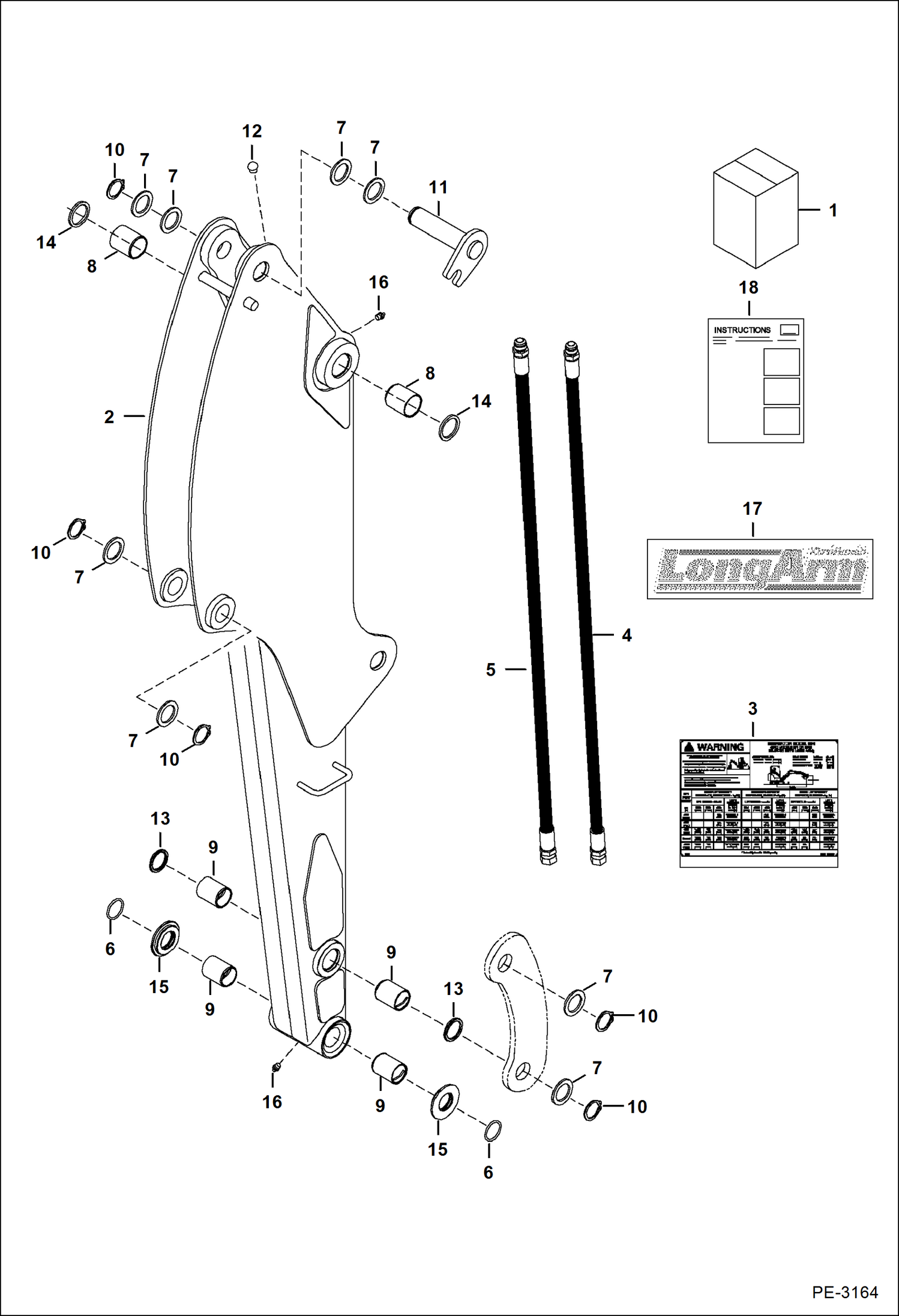

Запчасти Bobcat 331 LONG ARM KIT (S/N (331) 232513544 & Above, (334) 232612652 & Above) ACCESSORIES & OPTIONS

1

KIT SALES #6815280 - Ref. 2-17

2

7110543

ARM Was 7102694 - A

3

6810009

DECAL lift capacity - text - 331

3

7110138

DECAL lift capacity - text - 331

3

7120585

DECAL lift capacity - ESA No-text - 331

3

7107911

DECAL lift capacity - text - 430 - Was 6818043 - A

3

7121342

DECAL lift capacity - ESA No-text - 430

4

6814783

HOSE

5

6814784

HOSE

6

25K40112

O RING 10

7

6534111

WASHER

8

6815277

BUSHING Was 6803207 - A

9

6803213

BUSHING, PRESS FIT

10

6534154

RING

11

6595222

PIN

12

6597572

BUMPER

13

6652915

SEAL, OIL

14

6660075

SEAL

15

6810627

WASHER

16

10H25

FITTING, GREASE 5

17

7147433

DECAL, ARM LONG long arm

18

6904970

INSTRUCTIONS
