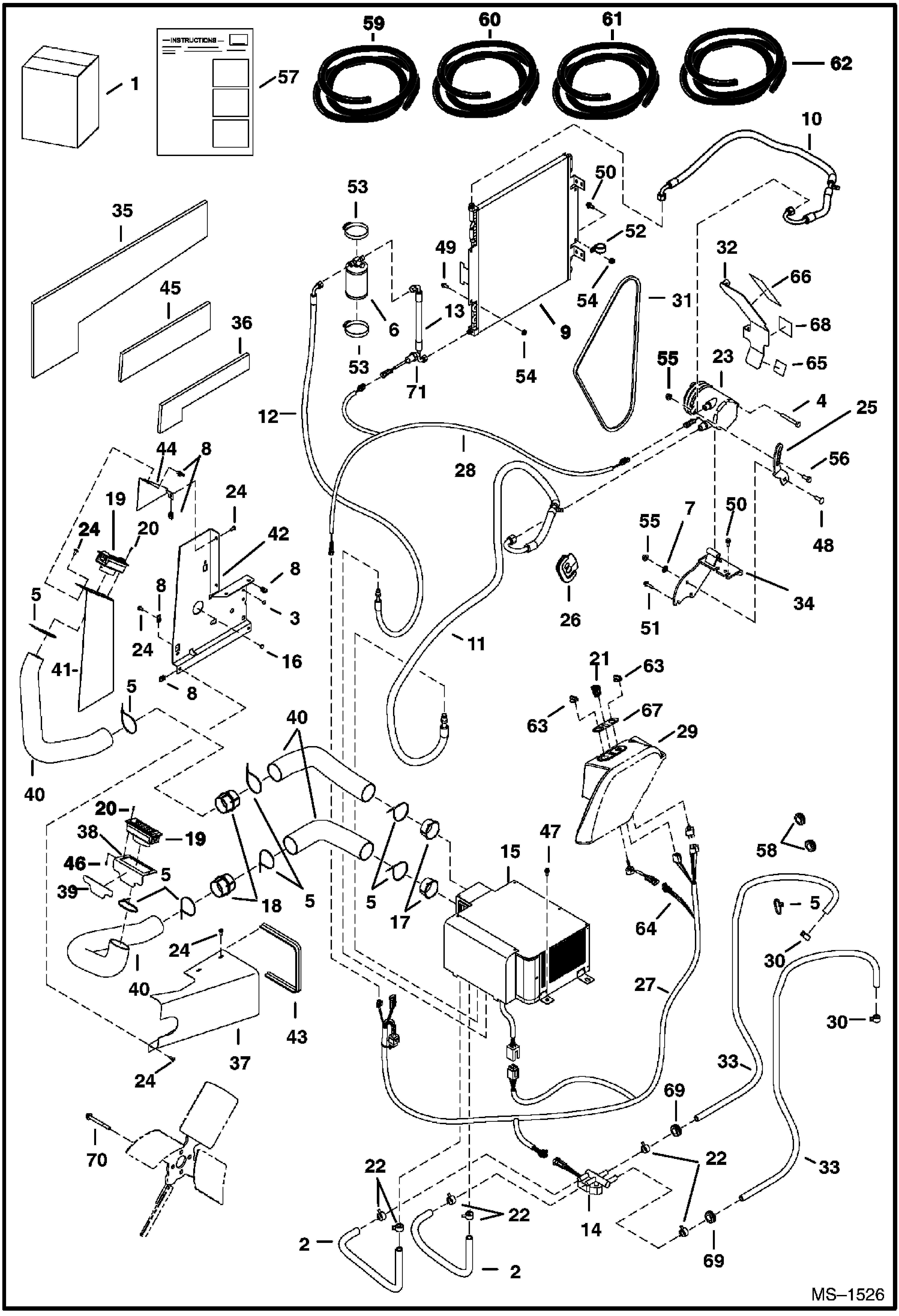

Запчасти Bobcat 331 HVAC KIT ACCESSORIES & OPTIONS

1

6814034

HVAC KIT W/Ref. 2 - 70

2

HOSE NLA - heater - use 26 in. of Ref. 59 - Was 6560649 - A

2

HOSE NLA - heater - use 23 in. of Ref. 59

3

6589675

SCREW

4

5CM1080

SCREW

5

6624289

STRAP, TIE

6

6674235

RECEIVER DRIER

7

6674264

RETAINER NUT

8

6676026

NUT

9

6676464

CONDENSER NOT IN KIT

9

6682037

CONDENSER

10

6676466

HOSE

10

7009977

O-RING #8 - Was 6675538 - A

11

6676467

HOSE

11

7009978

O-RING #10 - Was 6675825 - A

12

6681654

HOSE

12

7009976

O-RING #6 - Was 6675824 - A

12

6676468

HOSE not in kit

12

7009976

O-RING #6 - Was 6675824 - A

13

6681655

HOSE

13

7009976

O-RING #6 - Was 6675824 - A

13

6676469

HOSE not in kit

13

7009976

O-RING #6 - Was 6675824 - A

14

6676488

VALVE

15

6677478

HVAC BOX

15

6682036

HVAC

16

6678729

SEAL

17

6679846

INSERT 2 -1/2''

17

6676490

INSERT 3''

18

6679859

ADAPTER 3''

18

6680602

ADAPTER 2-1/2''

19

6680953

LOUVER

20

6680969

SCREW

21

7169112

SWITCH, ROCKER A/C Was 6719176 - A

22

5HM23

CLAMP

23

6733655

COMPRESSOR, A/C

24

6803202

SCREW

25

6807434

TENSIONER

26

6808436

GROMMET

27

6808547

HARNESS

27

6815104

HARNESS

28

6808548

HARNESS

29

6807989

CONSOLE HVAC - existing - not in kit - Was 6808757 - D

30

5HM20

CLAMP

31

6809790

BELT 331/334 w/adjustable idler

31

6808527

BELT 337/341 w/non-adjustable idler

32

6809853

GUARD fan

33

HOSE NLA - heater - use 134'' of Ref. 60 - Was 6810136 - A

34

6808988

BRACKET 337D/341D - A

34

6810342

BRACKET 331D/334D

35

6811374

INSULATION

36

6811437

INSULATION

37

6812277

COVER

38

6812278

BRACKET

39

6812280

ADHESIVE

40

HOSE NLA - use 124'' of Ref. 61 - Was 6813207 - A

41

6813242

COVER

42

6813250

BRACKET

43

SEAL NLA - use 21'' of Ref. 62 - Was6813255 - A

44

6813281

COVER

45

6813293

INSULATION

46

6813440

COVER

47

26GM8020

SCREW

48

28CM1030

BOLT

49

29CM816

SCREW

50

29CM820

SCREW

51

29CM835

BOLT

52

30H57

CLAMP

53

42H44

HOSECLAM5

54

51DM8

NUT

55

51DM10

NUT

56

5CM1025

BOLT

57

6902033

INSTRUCTIONS

58

1011708

GROMMET

59

889269

HOSE BULK/FT bulk - sold per foot

60

6565977

HOSE bulk - sold per foot

61

6679863

HOSE bulk - sold per foot

62

6675732

SEAL bulk - sold per foot

63

6675177

KNOB

64

6675846

POTENTIOMETER

65

6708929

DECAL, COOLANT propylene glycol

66

6804233

DECAL

67

6808433

DECAL heater

68

6809832

DECAL warning - hot/fan

69

6810133

GROMMET

70

60CM660

SCREW

71

6675779

SWITCH, PRESS
