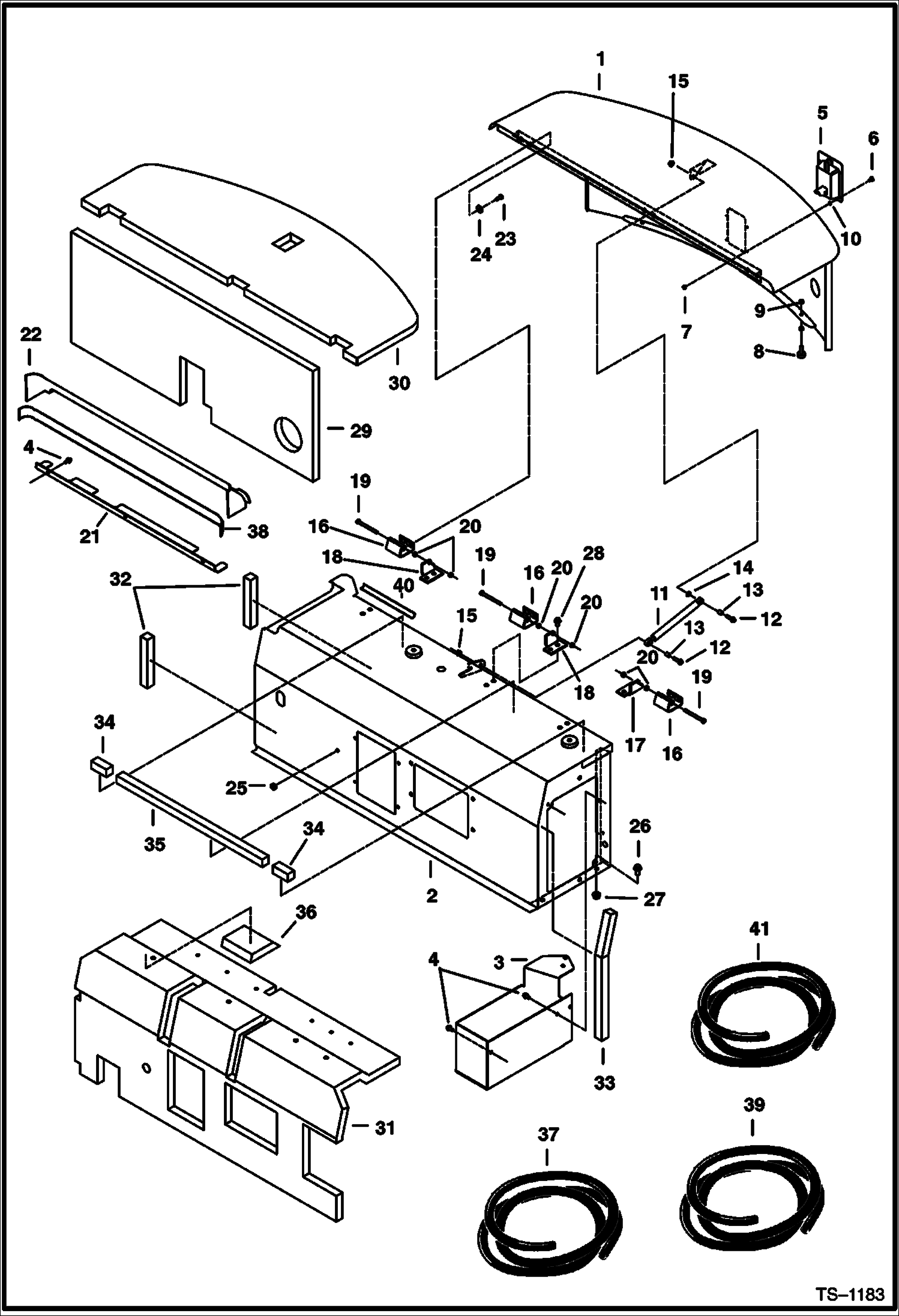

Запчасти Bobcat 331 ENGINE COVERS & INSULATION MAIN FRAME

1

6588526

COVER engine

2

6588438

COVER

3

6588534

TOOL BOX

4

29CM816

SCREW

5

6674239

LATCH, COVER ENG Was 6664447 - A

5

6587458

KEY

6

6587499

SCREW

7

49DM6

NUT

8

6655399

BUMPER

9

61D5

NUT

10

15EM60

WASHER

11

6664262

CYLINDER gas spring

12

29CM830

CAPSCREW

13

6588293

BUSHING

14

1EM80

WASHER

15

42DM8

NUT

16

6588133

HINGE welded onto Ref. 1 on later models

17

6589032

ANGLE

18

6589033

ANGLE

19

1CM890

BOLT

20

1DM8

NUT

21

6588648

SUPPORT

22

6588070

COVER

23

1CM820

BOLT

24

17EM80

WASHER

25

515069

GROMMET

26

29CM1225

BOLT

27

45DM12

NUT

28

26GM10020

BOLT Was 29CM01020B - B

29

6588541

INSULATION

30

6588542

INSULATION

31

6588543

INSULATION

32

INSULATION NLA - 8'' (206mm) long - Order Ref. 37

33

INSULATION NLA - 21'' (500mm) long - Order Ref. 37

34

INSULATION NLA - 3'' (76mm) long - Order Ref. 37

35

INSULATION NLA - 28'' (712mm) long - Order Ref. 37

36

6589244

INSULATION

37

6554274

INSULATION bulk - sold per foot

38

TAPE NLA - double backed - For attaching Ref. 22 to the Cab/Canopy - 48'' (1220mm) long - Order Ref. 39

39

6900669

TAPE bulk - sold per foot - Was 6665212 - A

40

SEAL NLA - drip rail - 12'' (305mm) long - Order Ref. 41

41

6670537

SEAL bulk - sold per foot
