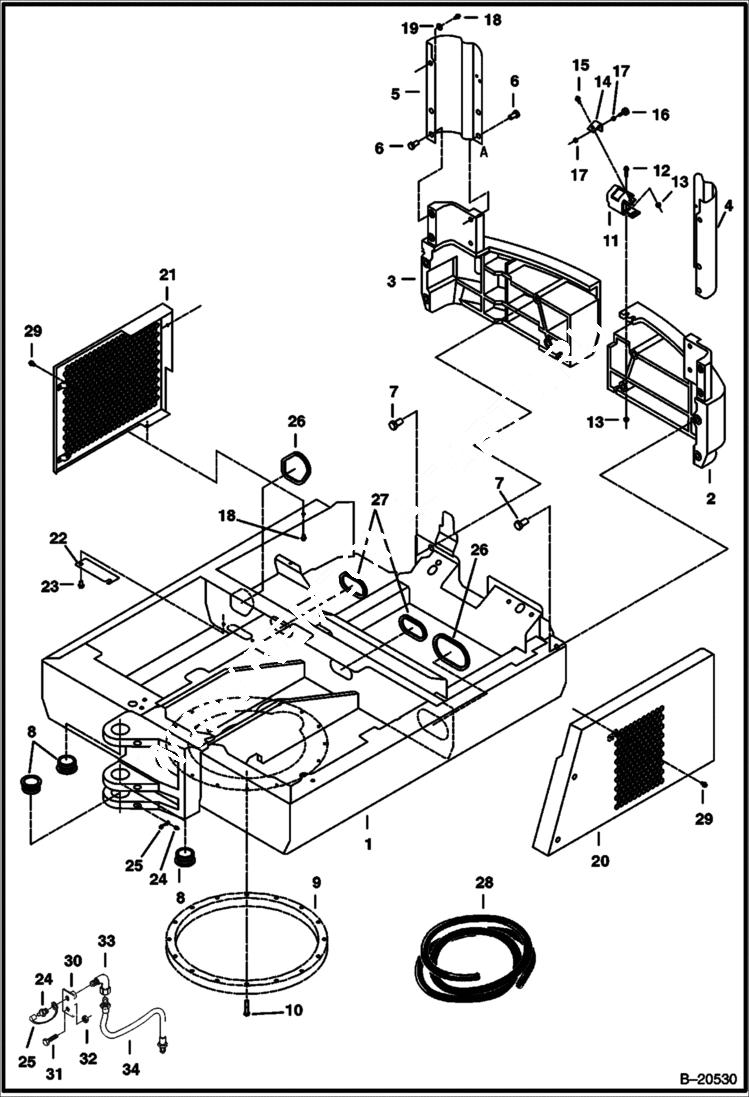

Запчасти Bobcat 331 UPPERSTRUCTURE , COUNTERWEIGHTS & SIDE COVERS MAIN FRAME

1

6588459

UPPERSTRUCTURE frame

2

6588425

COUNTERWEIGHT NLA - left hand - Was 6588425

3

6588426

COUNTERWEIGHT right hand

4

6587895

CORNER POST left hand

5

6588131

CORNER POST right hand

6

1CM1630

BOLT

7

1CM2040

BOLT

8

6588095

BUSHING, WELD-ON

9

BEARING See Illustration UNDERCARRIAGE/ E2080 - swing

10

7CM1260

BOLT

11

6589060

BRACKET latch - rear door

12

29CM840

SCREW

13

42DM8

NUT

14

6588539

ANGLE

15

29CM825

BOLT

16

6655399

BUMPER

17

61D5

NUT

18

29CM816

SCREW

19

17EM80

WASHER

20

6588530

COVER left hand

21

6588532

COVER right hand

22

6539292

COVER

23

26GM10020

BOLT Was 29CM01020B - B

24

10H25

FITTING, GREASE 5

25

6652943

COVER grease fitting

26

MOULDING NLA - 18'' (454 mm) long - Order Ref. 28

27

MOULDING NLA - 12'' (308mm) long - Order Ref. 28

28

6659603

MOLDING bulk - Order Per Foot

29

26GM8016

SCREW

30

6586104

PLATE Was 6583104 - D

31

29CM1020

BOLT

32

1DM10

NUT

33

26F1

PIPE FITG

34

6531180

HOSE
