Запчасти Bobcat 331 FUEL SYSTEM POWER UNIT

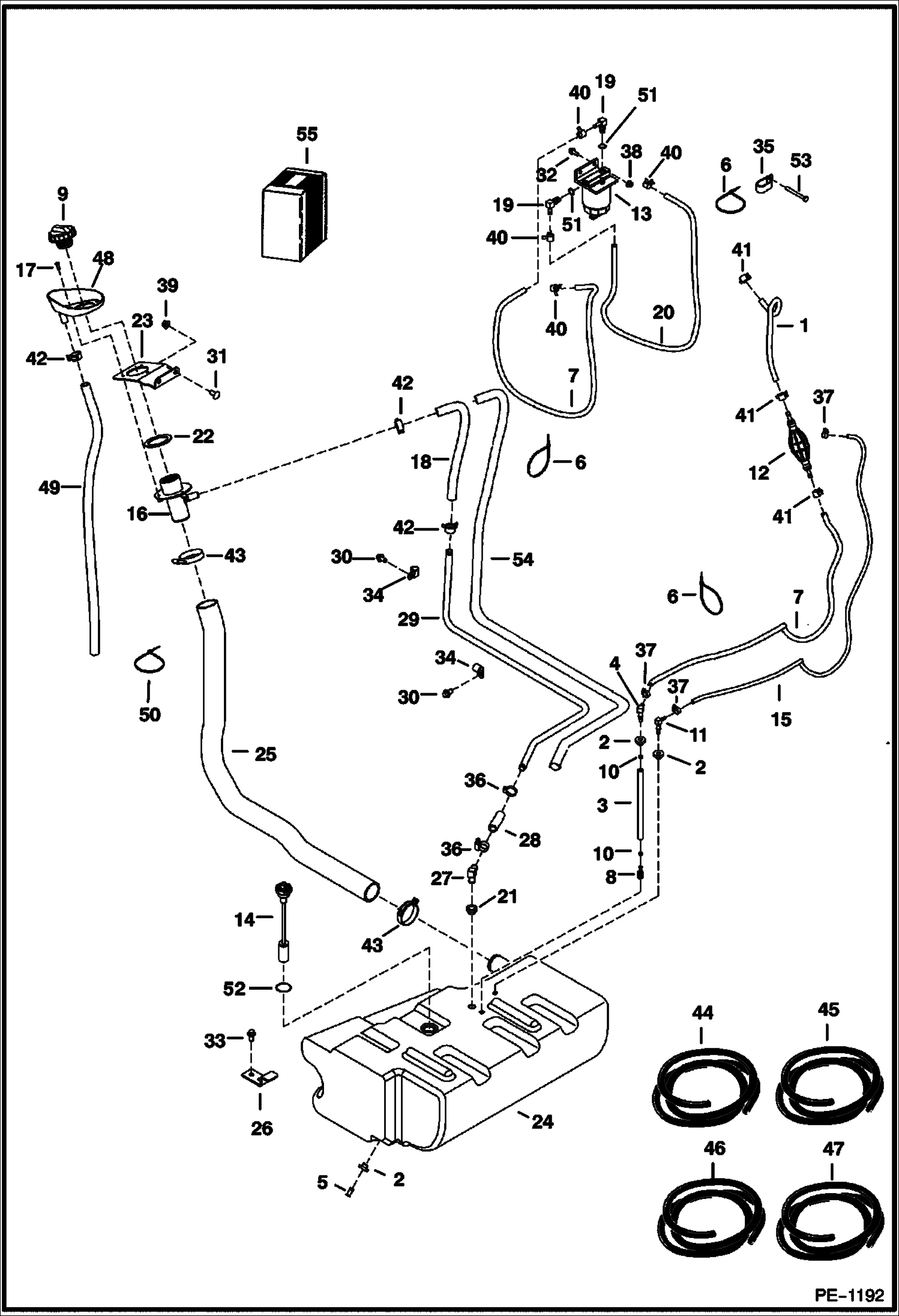

Схема запчастей Bobcat 331 - FUEL SYSTEM POWER UNIT

Артикул

Название

Примечание

Количество

1

HOSE NLA - Use 18'' (457.2mm) of Ref.44 - Was 6548762 - A

2

6553411

BUSHING 0.38'' ID

3

6576386

HOSE

4

6598908

ELBOW Was 6681492 - B

5

6599645

PLUG, STEEL

6

6610510

TIE

7

HOSE NLA - Use 51'' (1295.4mm) of Ref. 44 - Was 6617739 - A

8

6650239

SCREEN, FUEL PICKUP fuel

9

6661114

CAP. DIESEL

10

6661213

RING, COMPRESSION

11

6666302

FITTING, ELBOW barbed - Was 7126672 - B

12

6667170

PUMP 193 mm (7.6'') long

13

6667353

FILTER ASSY fuel

13

6667352

FILTER, FUEL W/SEPARATOR 12

13

6658180

PLUG, BLEED

14

7179838

SENSOR FUEL Was 6680437 - A

15

HOSE NLA - Use 64'' (1625.6mm) of Ref.45 - Was 6701096 - A

16

6701449

FILLER TUBE

17

6706517

SCREW

18

HOSE NLA - Use 16'' (406.4mm) of Ref. 47 - Was 6709751 - A

19

6715183

ELBOW W/Ref. 51 - check boss face to determine correct replacement ring

20

HOSE NLA - Use 55'' (1397mm) of Ref. 44 - Was 6717117 - A

21

6717402

BUSHING 0.54'' ID

22

6802558

GASKET

23

6807615

BRACKET

24

TANK NLA - Order 7109689 - Also order 65'' (1651mm) of Ref. 47 - Was 6808375 - A

25

6808377

HOSE

26

6808384

PLATE

27

6808798

ELBOW

28

HOSE NLA - Use 3.5'' (88.9mm) of Ref. 47 - Was 6808960 - A

29

TUBE NLA - Order Ref. 54 - A

30

26GM10020

BOLT

31

28CM1030

BOLT

32

29CM820

SCREW

33

29CM1020

BOLT

34

30H38

CLIP

35

31H42

CLIP

36

42H8

HOSE CLAMP 5

37

42HS04

CLAMP, HOSE

38

43DM8

NUT

39

43DM10

NUT

40

5HM14

CLAMP

41

5HM15

CLAMP

42

5HM23

CLAMP

43

5HM58

CLAMP

44

6577822

HOSE bulk - sold per foot

45

6578169

HOSE bulk - sold per foot - 0.19'' ID

46

6569752

HOSE BULK/FT bulk - sold per foot

47

6578172

HOSE bulk - sold per foot

48

6809964

GUARD splash

49

HOSE NLA - use 38'' (965.2mm) of Ref. 47

50

6624289

STRAP, TIE

51

79K5

O RING 10 flat boss face

51

99K5

O-RING tapered boss face

52

79K14

O RING 10

53

1CM870

BOLT

54

HOSE NLA - use 65'' (1575mm) of Ref. 45

54

HOSE NLA - use 58'' (1473mm) of Ref. 45

Выбрано товаров: 58
