Запчасти Bobcat 331 ELECTRICAL (Engine) ELECTRICAL SYSTEM

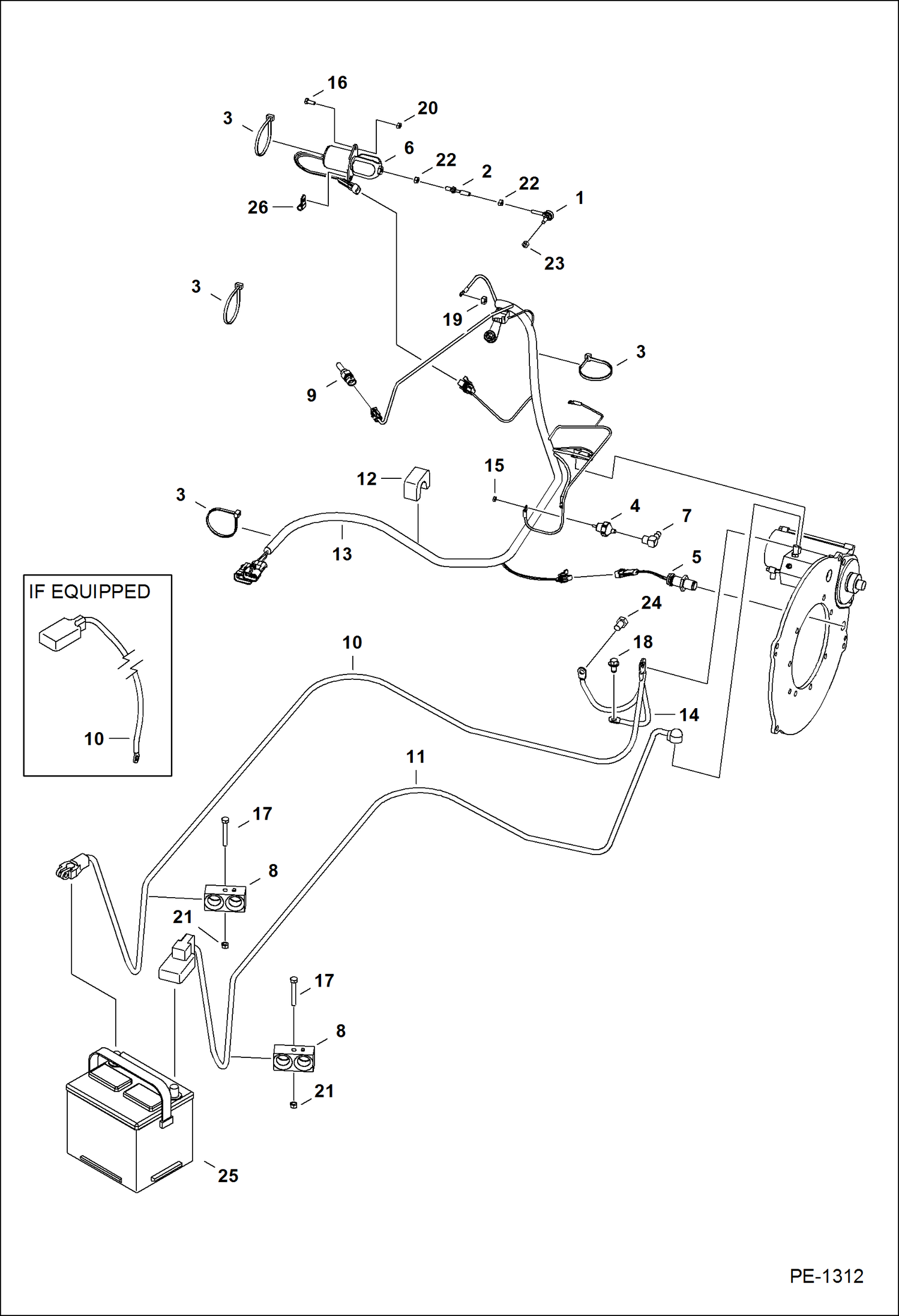

Схема запчастей Bobcat 331 - ELECTRICAL (Engine) ELECTRICAL SYSTEM

Артикул

Название

Примечание

Количество

1

6578363

ROD END

2

6578366

BALL JOINT

3

6624289

STRAP, TIE

4

6631010

SWITCH, PRESS OIL ENG oil pressure

5

6684037

SENSOR engine speed - Was 6684307 - D

6

6681513

SOLENOID engine shutoff - Was 6667993 - A

7

6707040

ELBOW

8

6715197

CLAMP

9

6718415

SWITCH engine temperature - Was 6718145 - D

10

6807431

CABLE negative

11

6809043

CABLE positive

12

6810364

GROMMET

13

6809355

HARNESS See BTIE-067 - engine - order 6810448

13

6810448

HARNESS engine

14

6809044

CABLE negative

14

6810763

CABLE negative

15

12D8

NUT

16

1CM616

SCREW

17

1CM860

BOLT

18

29CM1016

BOLT

19

4DM8

NUT

20

53DM6

NUT

21

53DM8

NUT

22

62D4

NUT

23

66D4

NUT

24

6CM1220

BOLT

25

6670251

BATTERY, DRY 530 AMP

26

30H19

CLIP

Выбрано товаров: 28
