Запчасти Bobcat 331 ELECTRICAL (Right Hand Console) ELECTRICAL SYSTEM

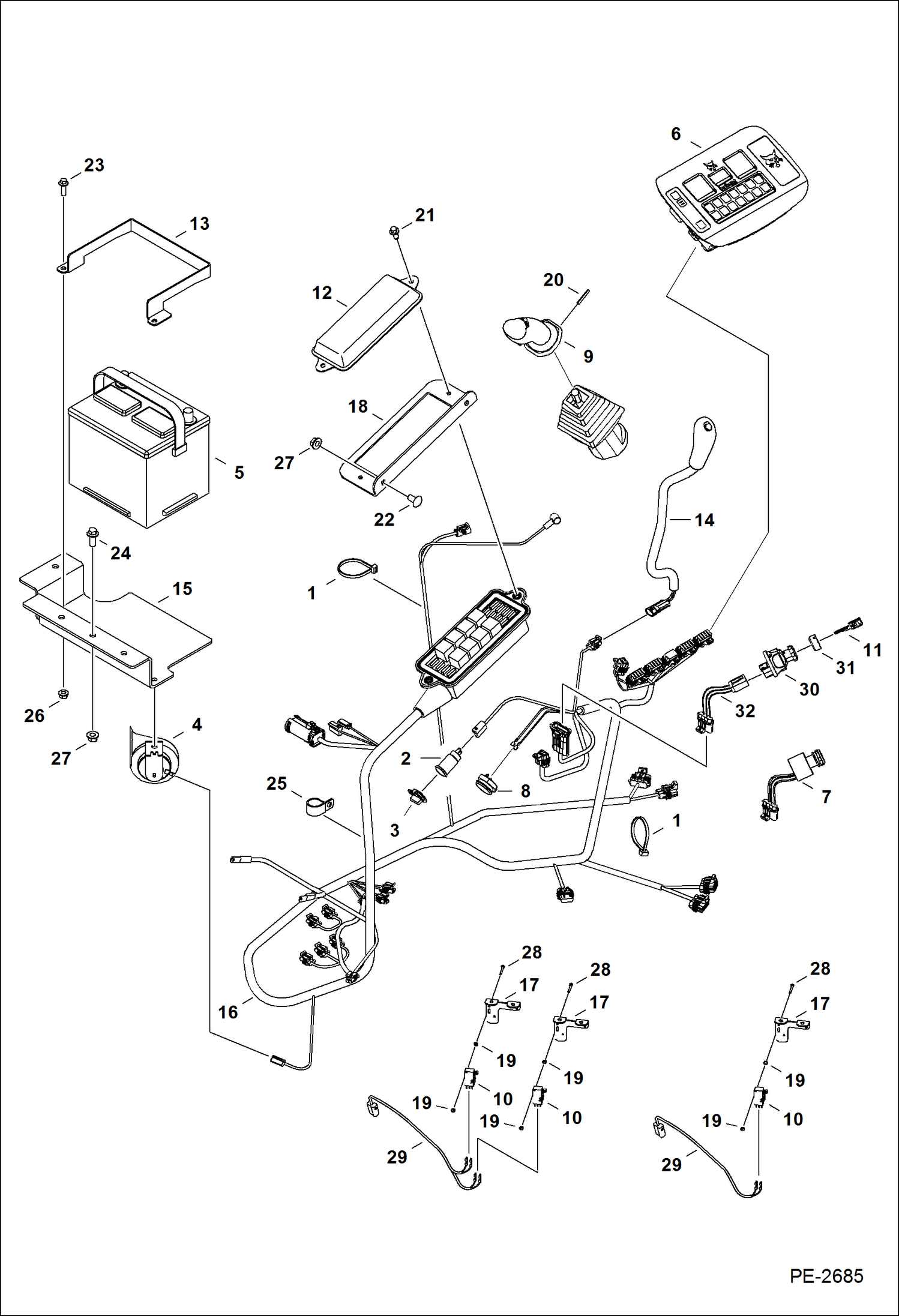

Схема запчастей Bobcat 331 - ELECTRICAL (Right Hand Console) ELECTRICAL SYSTEM

Артикул

Название

Примечание

Количество

1

6624289

STRAP, TIE

2

6664223

OUTLET

3

6664224

CAP

4

6665105

ALARM

5

6670251

BATTERY, DRY 530 AMP

6

6691430

CONTROLLER See BTI395exc - keyed - Was 6678683 - A

6

6691431

CONTROLLER, KEYLESS PANEL See BTI395exc - keyless - Was 6678684 - A

7

SWITCH NLA - ignition W/attached harness - Order Ref. 30-32 - Was 6679842 - A

8

6675705

ALARM

9

HANDLE See Illustration RH JOYSTICK/ B16420 - joystick RH

9

HANDLE See Illustration RH JOYSTICK/ MS1352 - joystick RH

10

6675929

SWITCH roller

11

KEY NLA - ignition - includes two keys W/ring - Order 6693241 - Was 6709527 - A

11

6693241

KEY 10 ignition - single key W/O ring

12

6716621

COVER fuse box

12

6736071

KIT extreme applications - W/decal & insulation

12

6718774

DECAL fuse/relay

12

6731275

INSULATION

13

6806991

BRACKET battery

14

BLADE LEVER NLA - blade W/2 speed switch - Order components - Was 7117039 - A

14

6675721

SWITCH momentary - two speed

14

6675831

HANDLE front half

14

6675832

HANDLE back half

14

7117038

TUBE

14

SCREW NLA - #6 x 5/8 pan head

15

6808876

BRACKET

16

6809046

HARNESS R.H. console

16

6810761

HARNESS, CONSOLE RH R.H. console

16

6654803

FUSE 5A

16

6654806

FUSE, 15A

16

6702444

FUSE 25A 5

16

6718034

FUSE, 30A

16

6718659

HOUSING

16

6673200

FUSE BLOCK

16

6679820

RELAY relay - Was 6674376 - A

17

6809096

BRACKET

17

6809096

BRACKET

18

6809110

BRACKET

19

12D4

NUT

19

12D4

NUT

20

14J1820

PIN

21

26GM8020

SCREW

22

28CM1020

BOLT

23

29CM825

BOLT

24

29CM1025

BOLT

25

30H50

CLIP

26

51DM8

NUT

27

51DM10

NUT

28

87G414

SCREW

28

87G414

SCREW

29

6810762

HARNESS jumper

29

6811484

HARNESS dual switch

29

6813156

HARNESS dual switch

30

6693245

SWITCH, IGN W/O attached harness

31

7000328

ADAPTER, SWITCH IGN

32

6697965

HARNESS

Выбрано товаров: 56
