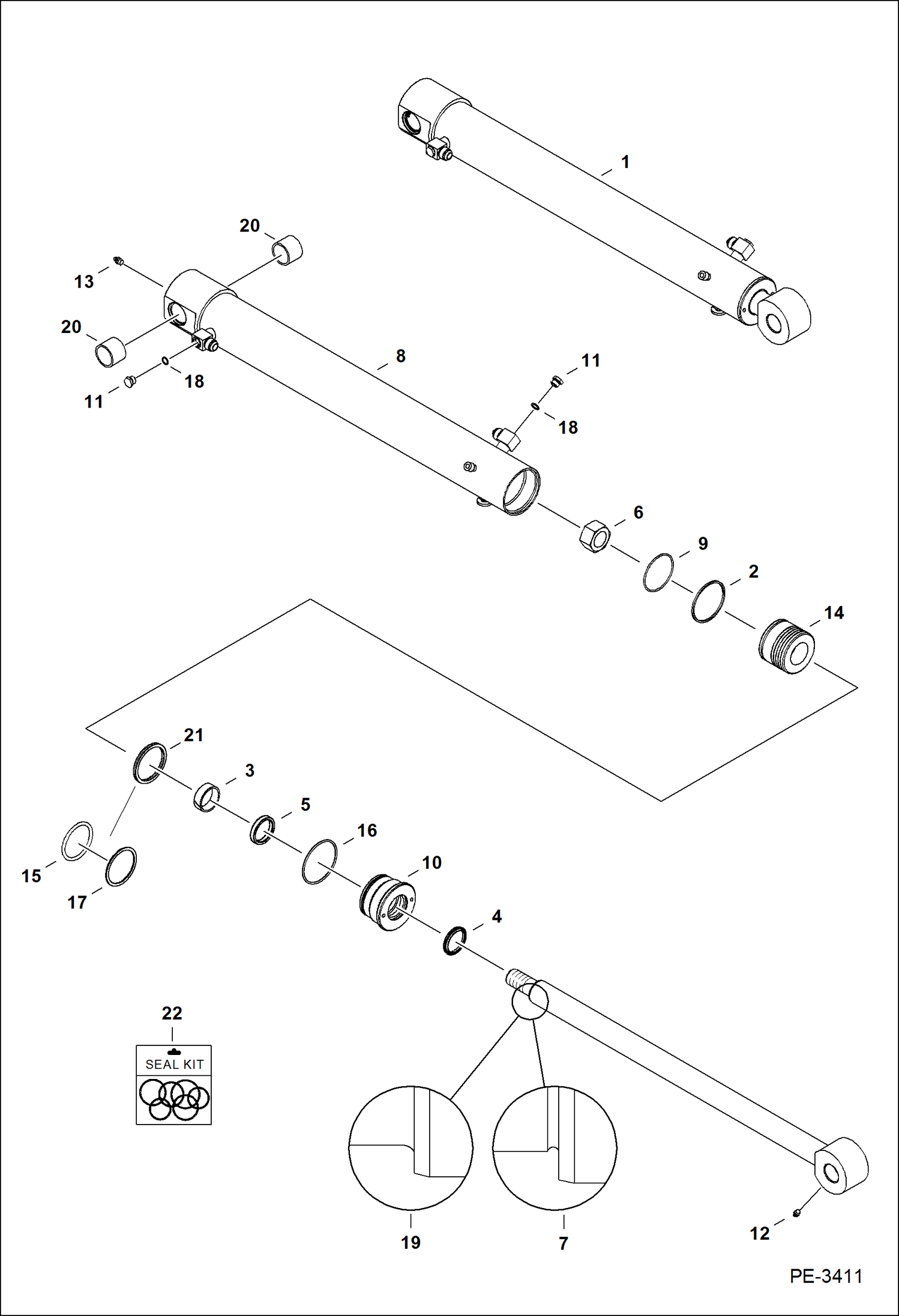

Запчасти Bobcat 331 BOOM CYLINDER (S/N 232513729, 232711597, 2326 12761 & Above) HYDRAULIC SYSTEM

1

CYLINDER NLA - W/Refs. 2-19 - Order 7156579 - Also Order Ref. 12, 13, 20, & (2) of 6652915 dust seal - Was 6814980 - A

1

7156579

CYLINDER, BOOM Also Order Ref. 12, 13, 20, & (2) of 6652915 dust seal - Was 7148239 - A

2

6513466

PISTON RG

3

7000771

RING, WEAR Was 6698133 - A

4

6667327

SEAL

5

6686999

WIPER, ROD CYL Was 6666544 - A

6

6810540

NUT

7

ROD NLA - Order 7148237 rod & 7147318 piston - Also Order Ref. 12 - Was 6810560 - A

8

6814981

HOUSING Also Order Ref. 13, 20 & (2) of 6652915 dust seal

9

25K30226

O RING 10 Was 54K30226 - B

10

6814983

HEAD

11

6816855

PLUG W/Ref. 19

12

10H25

FITTING, GREASE 5 grease

13

12H15

FITTING, GREASE 5 grease

14

7147318

PISTON Was 6814984 - A

15

58K234

O RING 10 Was 54K40300 - B

16

82K236

O-RING

17

73K234

BACK-UP RING back-up - Was 80K234 - A

18

75K7

O-RING

19

7148237

ROD Also Order Ref. 12

20

6803982

BUSHING

21

7008354

SEAL, QUAD

22

7162060

KIT, SEAL Ref. 2, 4-6, 9, 16, & 21 - Was 7156581 - A
