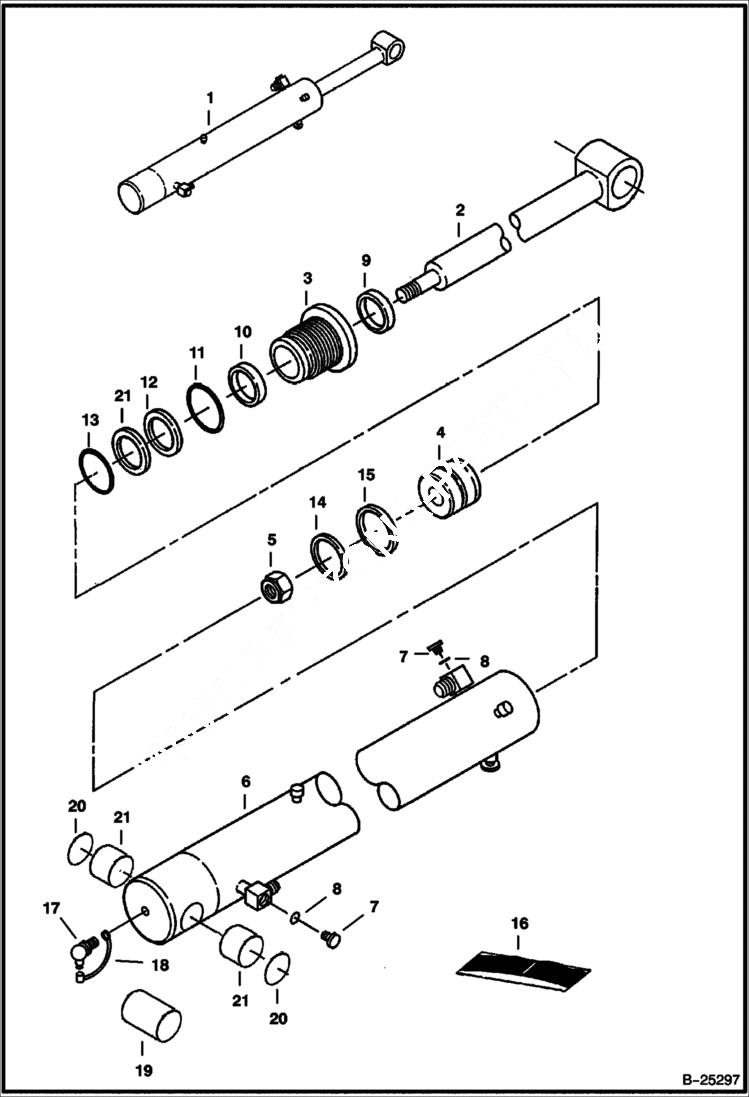

Запчасти Bobcat 331 BOOM CYLINDER (S/N 232513728, 232711596, 232612760 & Below) HYDRAULIC SYSTEM

1

CYLINDER See Illustration BOOM CYLINDER/ B22375 - NLA - W/Refs. 2 - 15 - Order 7148239 - Also Order (2) Ref. 20 & (2) Ref. 19 - - Was 6810559 - A

2

7148237

ROD Was 6810560 - A

3

6586570

HEAD

4

6809502

PISTON Was 6802051 - A

5

6810540

NUT Was 92D000020B - A

6

HOUSING NLA - Also order (2) Ref. 20 & (2) Ref. 19 - order cylinder 6814980 - Was 6803811

7

47K5

PLUG W/Ref. 8 - tapered boss face - allen socket head

7

6812171

PLUG W/Ref. 8 - flat boss face - hex head

8

79K6

O RING 10 tapered boss face

8

75K6

O-RING flat boss face

9

6686999

WIPER, ROD CYL Was 6666544 - A

10

6667327

SEAL

11

82K236

O-RING Was 58K000236B - A

12

73K234

BACK-UP RING back-up - Was 80K234 - A

13

58K234

O RING 10 Was 54K40300 - B

14

25K30226

O RING 10 Was 54K30226 - B

15

6513466

PISTON RG piston

16

7162060

KIT, SEAL Ref. 5 & 9-15 - Was 7156581 - A

17

12H15

FITTING, GREASE 5

18

6652943

COVER grease fitting

19

BUSHING NLA - Use W/Cylinder 6803801 & Housing 6803811 - Order Ref. 21 (2) - Was 6803685 - A

20

6652915

SEAL, OIL

21

6803982

BUSHING
