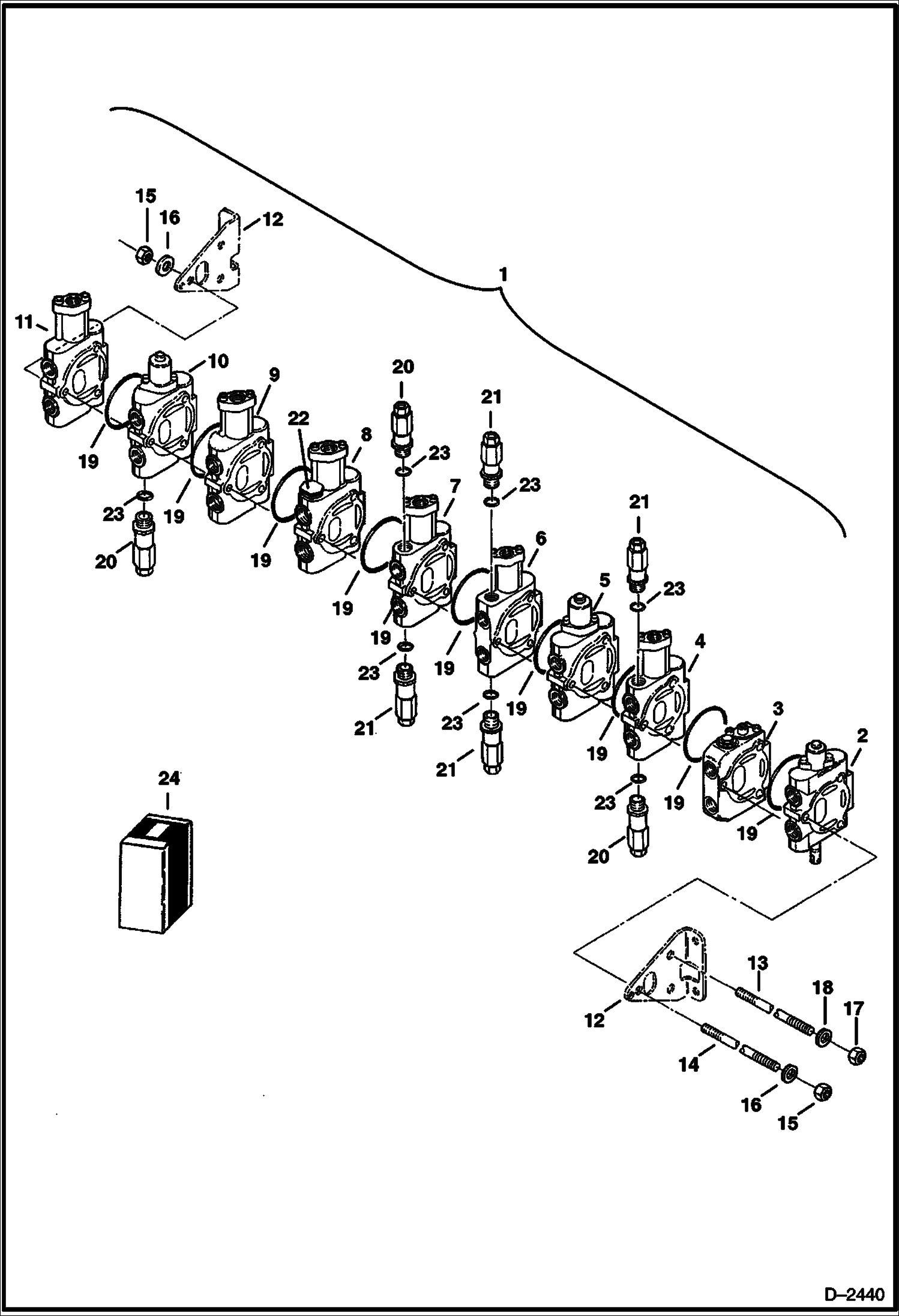

Запчасти Bobcat 331 CONTROL VALVE (S/N 232512782 & Below, 232711433 & Below, 232612157 & Below) HYDRAULIC SYSTEM

1

6677107

VALVE control - assy

2

6677993

VALVE See Illustration VALVE SECTION/ MS1217 - section - right travel

3

6677992

VALVE SECTION See Illustration VALVE SECTION/ MS1218 - section - boom offset

4

6677991

VALVE See Illustration VALVE SECTION/ MS1219 - section - boom

5

6677990

VALVE See Illustration VALVE SECTION/ MS1221 - section - left travel

6

6677989

VALVE See Illustration VALVE SECTION/ B17416 - section - arm

7

6677988

VALVE See Illustration VALVE SECTION/ MS1450 - section - bucket

8

6677437

VALVE See Illustration VALVE SECTION/ MS1223 - section - auxiliary

9

6677436

VALVE See Illustration VALVE SECTION/ B17319 - section - boost

10

6677435

VALVE See Illustration VALVE SECTION/ MS1225 - section - blade

11

6677434

VALVE See Illustration VALVE SECTION/ MS1227 - section - slew

12

6676365

BRACKET

13

6677450

ROD

14

6677449

ROD

15

62D6

NUT 5

16

6668973

WASHER

17

61D5

NUT

18

6668961

WASHER

19

6646691

O-RING

20

6674260

RELIEF VALVE relief 3400# W/Ref. 23

21

6674259

VALVE relief 2950# - W/Ref. 23

22

6671699

PLUG

22

O-RING NSS - order plug

23

79K10

O RING 10

24

6665458

SEAL KIT for Ref. 20, 21
