Запчасти Bobcat 331 HYDRAULIC CONTROL VALVE (S/N 232512783, 232711434, 232612158 & Above) HYDRAULIC SYSTEM

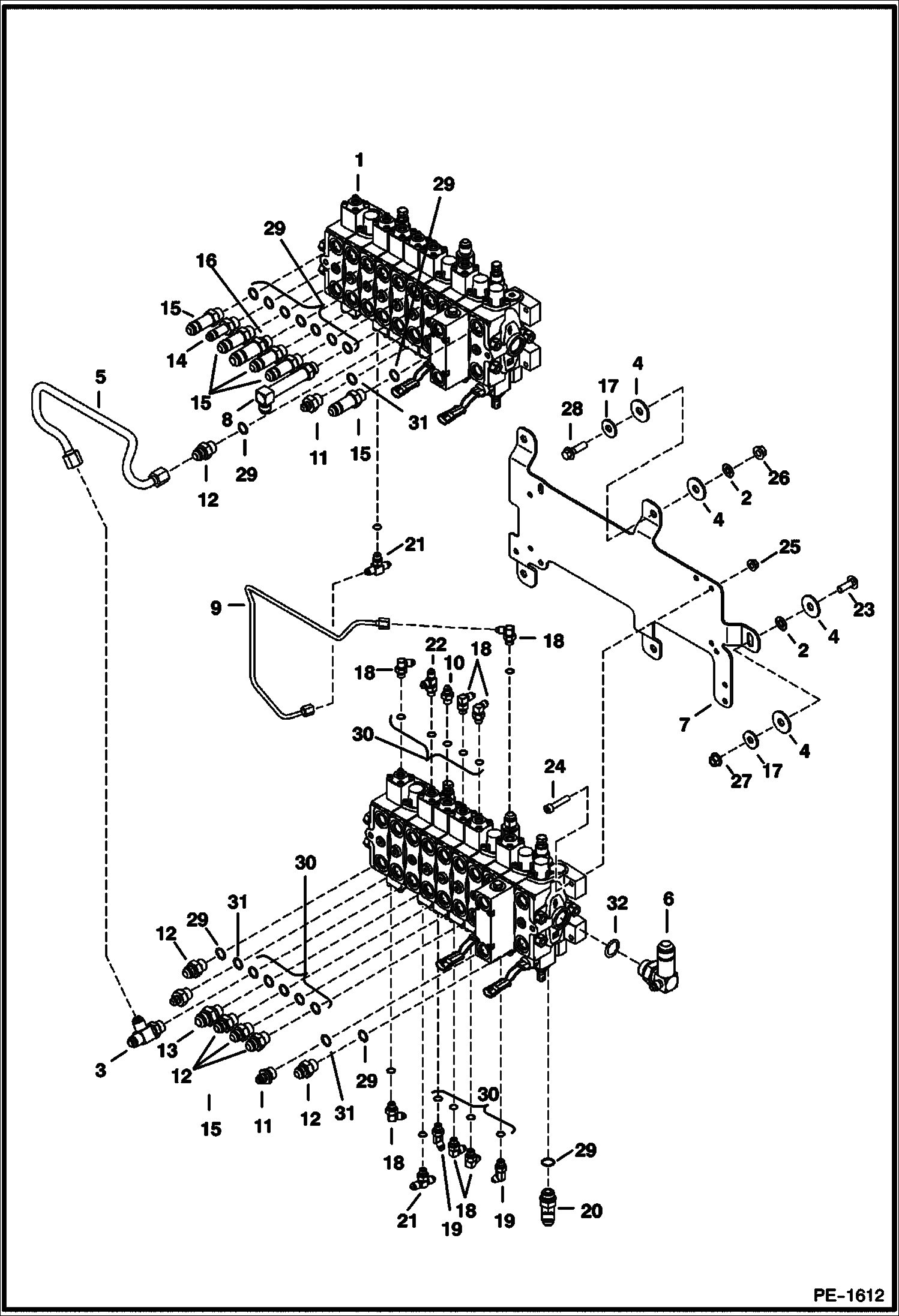

Схема запчастей Bobcat 331 - HYDRAULIC CONTROL VALVE (S/N 232512783, 232711434, 232612158 & Above) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

6678063

VALVE

2

6674264

RETAINER NUT

3

6680968

TEE W/ check - W/Ref. 29

4

6806720

INSULATOR

5

6813653

TUBELINE Was 6810404 - A

6

6811168

TEE W/Ref. 32

7

7123862

MOUNT Was 7106787 - A

8

6812821

ELBOW W/Ref. 29

9

6812960

TUBELINE

10

15KB0404

FTG HYD S Connector W/Ref. 30 - flat boss face

11

15KB0606

FITTING, HYD CONNECTOR W/Ref. 31

12

15KB0808

FITTING, HYD CONNECTOR W/Ref. 29

13

15KB1008

FITTING, HYD CONNECTOR W/Ref. 29

14

16KB0608

FITTING, HYD CONNECTOR W/Ref. 29

15

16KB0808

FITTING, HYD CONNECTOR W/Ref. 29

16

16KB1008

FITTING, HYD ELBOW W/Ref. 29

17

17EM100

WASHER

18

17KB0404

FTG HYD ELBOW 90 W/Ref. 30

19

18KB0404

FTG HYD ELBOW 45 W/Ref. 30

20

18KB0808

FTG HYD ELBOW 45 W/Ref. 29

21

19KB0404

FITTING, HYD TEE W/Ref. 30

22

21KB0404

FITTING, HYD TEE W/Ref. 30

23

28CM1030

BOLT

24

3GM840

SCREW

25

43DM8

NUT

26

43DM10

NUT

27

51DM10

NUT

28

59CM1035

BOLT

29

79K8

O RING 10

30

79K4

O RING 10

31

79K6

O RING 10

32

79K12

O RING 10

Выбрано товаров: 32
