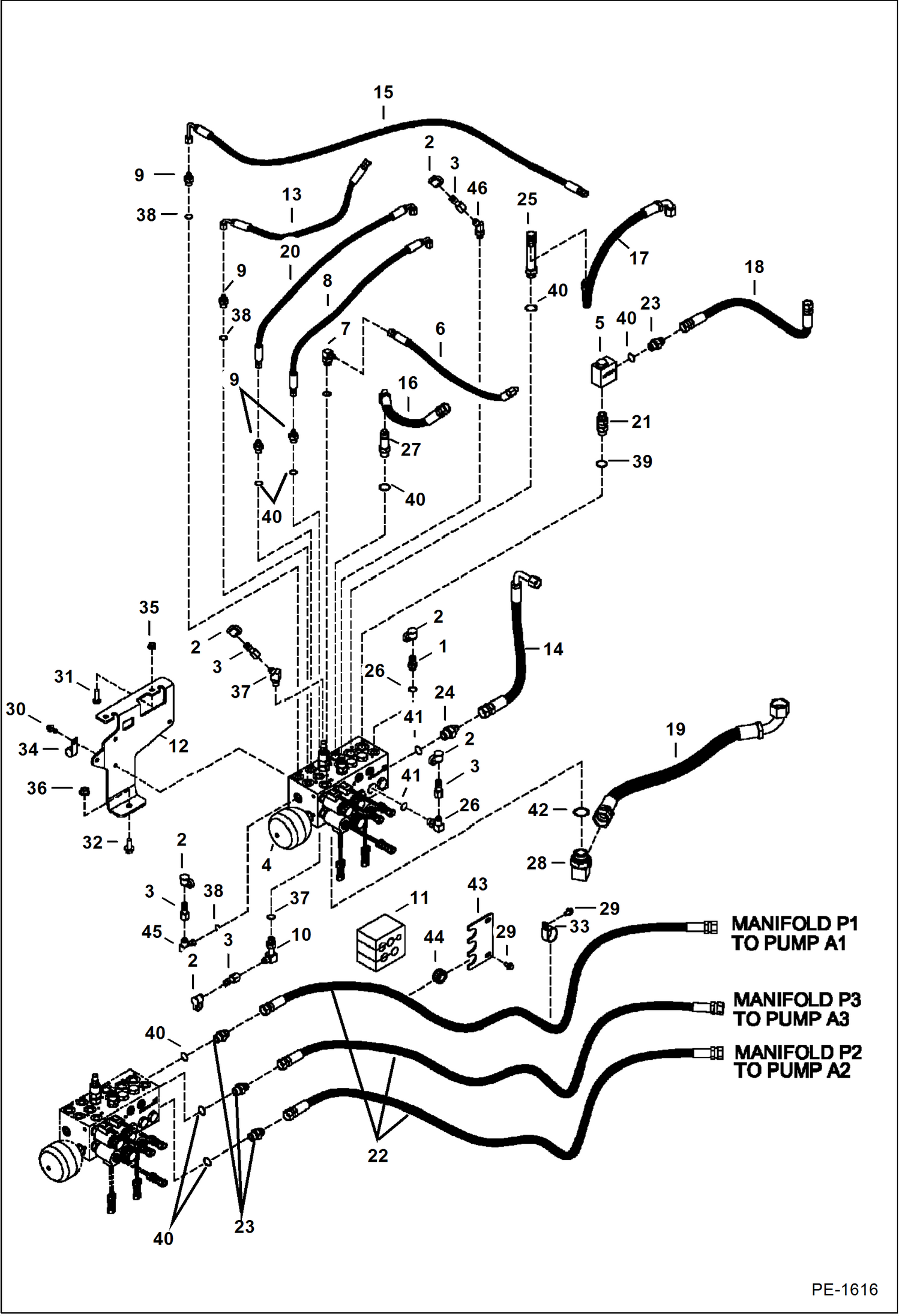

Запчасти Bobcat 331 HYDRAULIC CIRCUITRY (Manifold) HYDRAULIC SYSTEM

1

6630168

COUPLER W/Ref. 37

2

6630367

CAP dust

3

6661753

PLUG

4

MANIFOLD See Illustration HYDRAULIC CIRCUITRY/ PE1214 See Illustration MANIFOLD ASSY/ B17318 See Illustration MANIFOLD ASSY/ B17317

5

6676658

VALVE

6

6704212

HOSE

7

ELBOW NLA - W/Ref. 38 - tapered boss - Was 6715652 - A

7

17KB0406

FITTING, HYD ELBOW W/Ref. 38 - flat boss

7

97K4

O'RING flare end

8

6800677

HOSE

9

ADAPTER NLA - W/Ref. 38 - tapered boss - Was 6804359 - A

9

15KB0406

FTG HYD S CONNECTOR W/Ref. 38 - flat boss face

9

97K4

O'RING flare end

10

ELBOW NLA - W/Ref. 37 - Was 6805242 - A

10

97K6

O RING flare end

10

6812815

FITTING

11

6807629

BLOCK

12

6808593

MOUNT

13

6809329

HOSE

14

6809331

HOSE

15

6809332

HOSE Was 6909332 - D

16

6810494

HOSE Was 6809334 - A

17

6809335

HOSE

18

6809336

HOSE

19

6810219

HOSE Was 6809431 - A

20

6809772

HOSE

21

6812822

CONNECTOR W/Ref. 39 - Was 6809795 - A

22

6809893

HOSE

23

CONNECTOR NLA - W/Ref. 40 - tapered boss - Was 15KN00006B - A

23

15KB0808

FITTING, HYD CONNECTOR W/Ref. 40 - flat boss

23

97K8

O-RING flare end

24

CONNECTOR NLA - W/Ref. 41 - tapered boss - Was 15KV00007B - A

24

15KB1010

FITTING, HYD CONNECTOR W/Ref. 41 - flat boss

24

97K10

O-RING 10 flare end

25

CONNECTOR NLA - W/Ref. 40 - tapered boss - Was 16KN00006B - A

25

16KB0808

FITTING, HYD CONNECTOR W/Ref. 40 - flat boss

25

ELBOW NLA - W/Ref. 40 - tapered boss

25

6812821

ELBOW W/Ref. 40 - flat boss

25

97K8

O-RING flare end

26

17KB0606

FITTING W/Ref. 38 - Was 17KV00005B - A

26

97K6

O RING flare end

27

17KB0808

FITTING, HYD ELBOW W/Ref. 40 - Was 17KN00006B - A

27

97K8

O-RING flare end

28

ELBOW NLA - W/Ref. 42 - tapered boss - Was 17KN00010B - A

28

17KB1616

FITTING, HYD ELBOW W/Ref. 42 - flat boss

28

97K16

O-RING flare end

29

26GM8016

SCREW

30

29CM816

SCREW

31

29CM820

SCREW

32

26GM8020

SCREW Was 29CM01025B - B

33

30H60

CLIP Was 30H000058B - B

34

30HJ512

CLAMP

35

43DM8

NUT

36

51DM10

NUT

37

79K6

O RING 10

38

99K6

O RING tapered boss

38

79K6

O RING 10 flat boss

39

79K8

O RING 10

39

79K8

O RING 10 flat boss

40

99K8

O-RING

41

99K10

O'RING tapered boss

41

79K16

O RING 10 flat end

42

99K16

O-RING

43

6810142

PLATE

44

6810143

GROMMET

45

ELBOW NLA - W/Ref. 38 - tapered boss face - Order 17KB606 - Was 17KN5 - A

45

17KB0606

FITTING W/Ref. 38 - flat boss face

45

97K6

O RING flared end

46

CONNECTOR NLA - W/Ref. 38 - tapered boss

46

18KB0606

FITTING, HYD ELBOW W/Ref. 37 - flat boss
