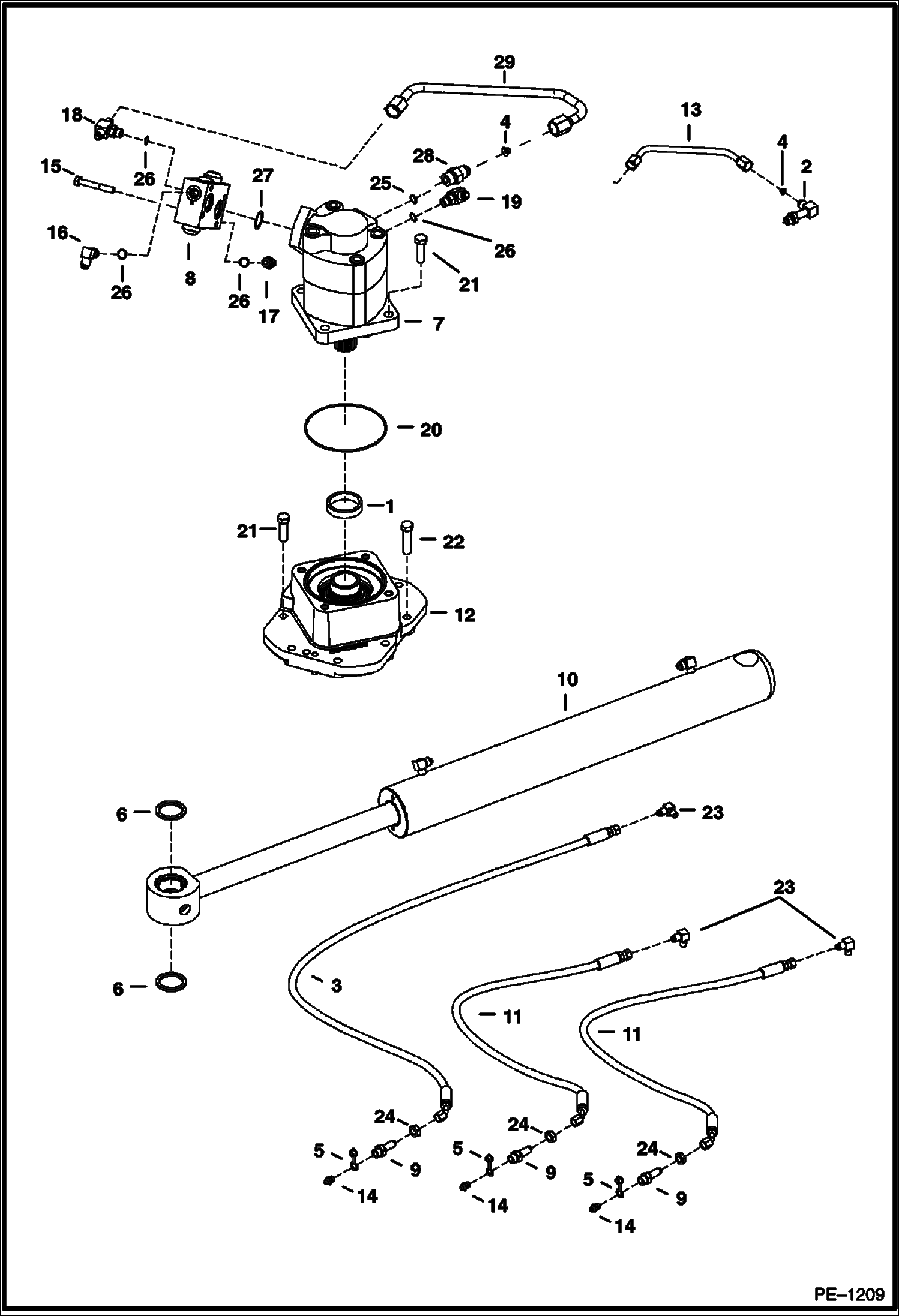

Запчасти Bobcat 331 HYDRAULIC CIRCUITRY (Upper) HYDRAULIC SYSTEM

1

6513681

BEARING

2

6558510

ELBOW W/Ref. 25

3

6578185

HOSE

4

6593801

ORIFICE

5

6652943

COVER grease fitting

6

6660075

SEAL dust

7

6667882

MOTOR, DRIVE HYD See Illustration SWING MOTOR/ C3421

8

VALVE See Illustration CROSSPORT RELIEF VALVE/ B14785

9

6807184

FITTING

10

6807971

CYLINDER See Illustration SWING CYLINDER/ C3287 - Swing - Was 6807970 - D

11

6808692

HOSE

12

6808833

CARRIER

13

TUBELINE NLA - order Refs. 28 & 29 - Was 6809398 - A

14

10H25

FITTING, GREASE 5

15

17C640

BOLT 5

16

ELBOW NLA - W/Ref. 26 - tapered boss - Was 17KV00005B - A

16

17KB0606

FITTING W/Ref. 26 - flat boss

16

97K6

O RING flare end

17

ELBOW NLA - W/Ref. 26 - tapered boss - Was 18KN00005B - A

17

18KB0606

FITTING, HYD ELBOW W/Ref. 26 - flat boss

17

97K6

O RING flare end

18

TEE NLA - W/Ref. 26 - tapered boss - Was 19KV00005B - A

18

19KB0606

TEE W/Ref. 26 - flat boss

18

97K6

O RING flare end

19

TEE NLA - W/Ref. 26 - tapered boss - Was 21KV00005B - A

19

21KB0606

FTG HYD STRAIGHT TEE W/Ref. 26 - flat boss

19

97K6

O RING flare end

20

25K30508

O-RING, 10

21

55CM1240

SCREW Was 7CM01240B - B

22

55CM1250

SCREW Was 7CM01250B - B

23

ELBOW NLA - Was 83FN00003B - A

23

83F3

ELBOW 5

23

97K4

O'RING flare end

24

86F3

LOCKNUT

25

79K6

O RING 10

26

99K6

O RING tapered boss

26

79K6

O RING 10 flat boss

27

6669213

O-RING

28

CONNECTOR NLA - W/Ref. 26 - tapered boss - Was 15KV00005B - A

28

15KB0606

FITTING, HYD CONNECTOR W/Ref. 26 - flat boss face

28

97K6

O RING flare end

29

6810073

TUBE
