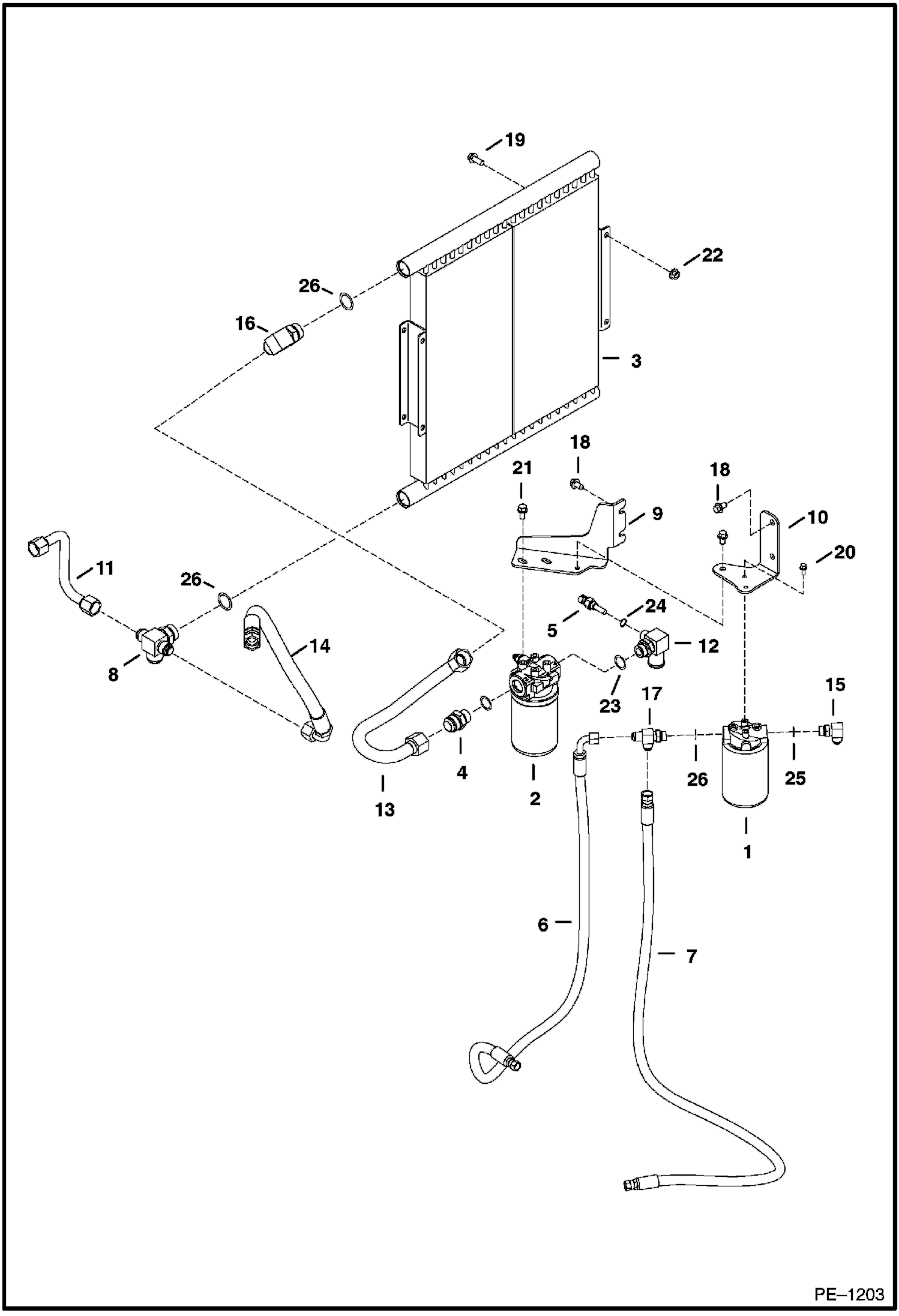

Запчасти Bobcat 331 HYDRAULIC CIRCUITRY (Cooler/Filters) (S/N 232513895, 232712885, 232611629 & Below) HYDRAULIC SYSTEM

1

FILTER ASSY NLA - Order 6686217 filter assy - Was 6682415 - A

1

6686217

FILTER ASSY

1

6516722

FILTER element - Was 6660728 - A

2

6661247

FILTER hydraulic

2

6661248

FILTER, OIL HYD 12 #3 media - 152,4 mm (6'') long

2

6660260

SWITCH hydraulic pressure

3

6679844

HEAT EXCHANGE oil cooler - Was 6675283 - A

4

15KB1612

FITTING, HYD CONNECTOR W/Ref. 23 - Was 6715878 - A

5

6718417

SENDER hydraulic temp. - W/Ref. 24

6

6808677

HOSE to slew motor drain

7

6809397

HOSE to swivel port H

8

FITTING NLA - W/Ref. 26 - tapered boss - Was 6809418 - A

8

6812825

FITTING W/Ref. 26 - flat boss

8

97K16

O-RING flare end

8

97K12

O'RING flared end

9

6809545

MOUNT

10

MOUNT NLA - Order 7104428 bracket - Was 6809546 - A

10

7104428

BRACKET

11

6809664

TUBE

12

6809666

ELBOW W/Ref. 23

13

6812963

TUBELINE Was 6809674 - A

14

6809948

HOSE 25'' (635 mm) long - Was 6809782 - A

14

6811166

HOSE 37.5'' (952,5 mm) long

15

ELBOW NLA - W/Ref. 25 - tapered boss - Was 17KN00006B - A

15

17KB0808

FITTING, HYD ELBOW W/Ref. 25 - flat boss face

15

97K8

O-RING flare end

16

ELBOW NLA - W/Ref. 26 - tapered boss - Was 17KN00010B - A

16

17KB1616

FITTING, HYD ELBOW W/Ref. 26 - flat boss

16

97K16

O-RING flare end

17

FITTING NLA - W/Ref. 25 - tapered boss - Was 21KN00006B - A

17

21KB0808

FTG HYD STRAIGHT TEE W/Ref. 25 - flat boss

17

97K8

O-RING flare end

18

26GM10020

BOLT

19

29CM1025

BOLT

20

35C410

BOLT 5

21

35C612

BOLT

22

43DM10

NUT

23

79K12

O RING 10

24

79K6

O RING 10

25

99K8

O-RING tapered boss

25

79K8

O RING 10 flat boss

26

99K16

O-RING tapered boss

26

79K16

O RING 10 flat boss - Was 99K16 - D
