Запчасти Bobcat 331 UNDERCARRIAGE UNDERCARRIAGE

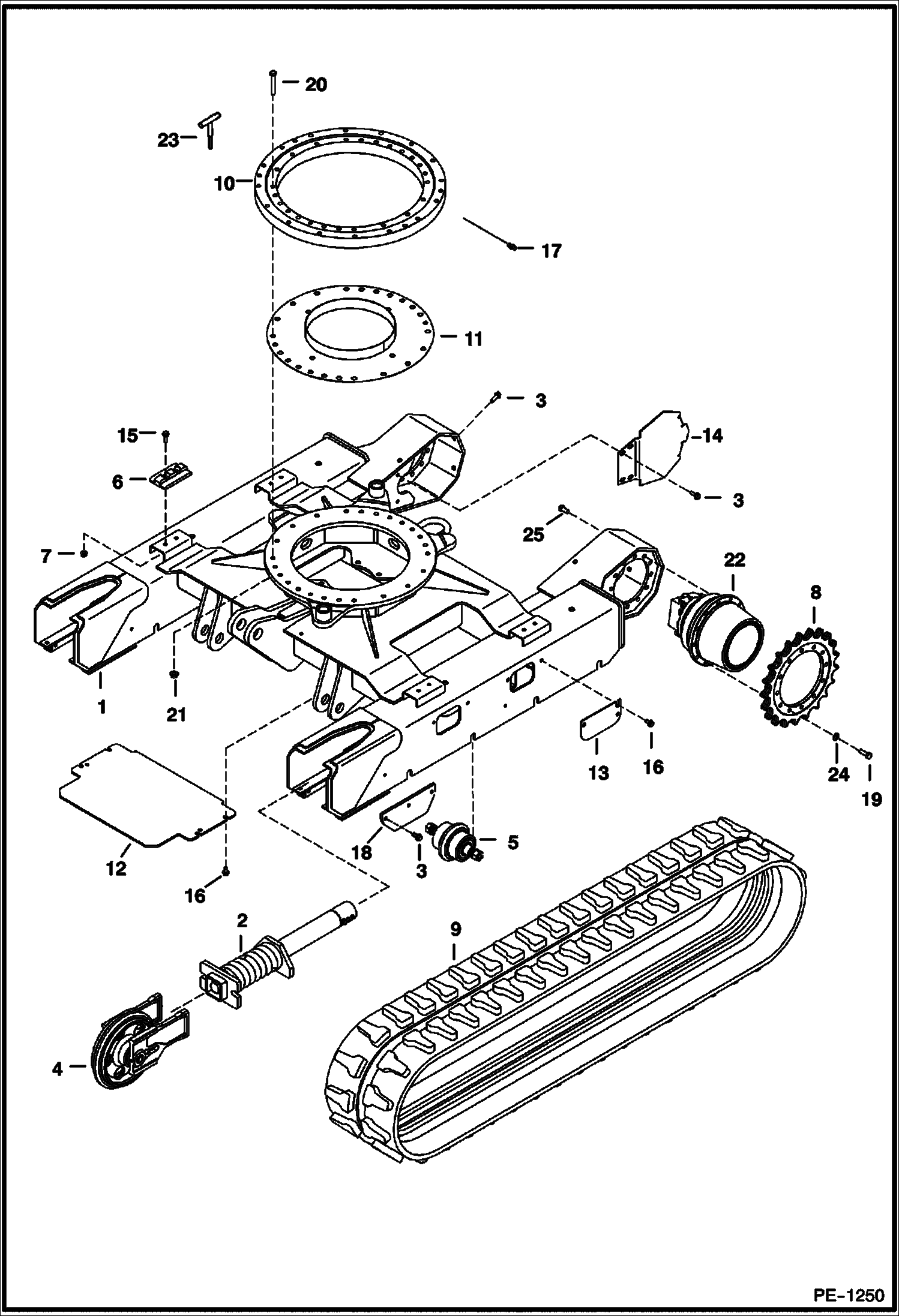

Схема запчастей Bobcat 331 - UNDERCARRIAGE UNDERCARRIAGE

Артикул

Название

Примечание

Количество

1

TRACK FRAME See BTIE-082 - NLA - 9 hole - Was 6807594 - A

1

TRACK FRAME See BTIE-082 - NLA - 12 hole - Was 6809707 - A

2

SPRING ASSY See Illustration TRACK TENSIONER/ PE3459 - Recoil

3

26GM10030

BOLT

4

IDLER ASSY See Illustration FRONT IDLER/ PE1404 - rubber track

4

IDLER ASSY See Illustration FRONT IDLER/ PE1404 - steel track

5

6807916

TRACK ROLLER See Illustration TRACK ROLLER/ B17112 - rubber track

5

ROLLER ASSY See Illustration TRACK ROLLER/ B22162 - steel track

6

6534234

BRACKET track slide

7

51DM10

NUT

8

6814137

SPROCKET, MOTOR DRIVE TRACK 21 tooth - 9 hole - Was 6811940 - A

8

6813372SUB

SPROCKET, MOTOR DRIVE TRACK, PAINTED 12 hole - Was 6811939 - A

9

TRACK, RUBBER See Illustration TRACKS/ NA6195

9

TRACK, STEEL See Illustration TRACKS/ B17141

10

6655124

BEARING swing - 96 teeth on swing gear

11

6535548

FLANGE

12

6597346

COVER

13

6596723

COVER

14

COVER NLA - 2 hole cover - Order 7115357 - Was 6807599 - A

14

7115357

COVER

15

29CM1030

BOLT

16

26GM10020

BOLT Self tapping

17

6652970

GREASE FITTING

18

6596396

PLATE guide - steel track

19

55CM1235

BOLT

19

55CM1235

BOLT

20

7CM1280

BOLT

21

51DM12

NUT

22

DRIVE MOTOR See Illustration TRAVEL MOTOR/ D2373

23

6586495

PIN alignment -service tool for aligning swing bearing when upperstructure has been removed from undercarriage

24

18EM1224

WASHER

24

18EM1224

WASHER

25

55CM1225

BOLT

25

55CM1225

BOLT

Выбрано товаров: 34
