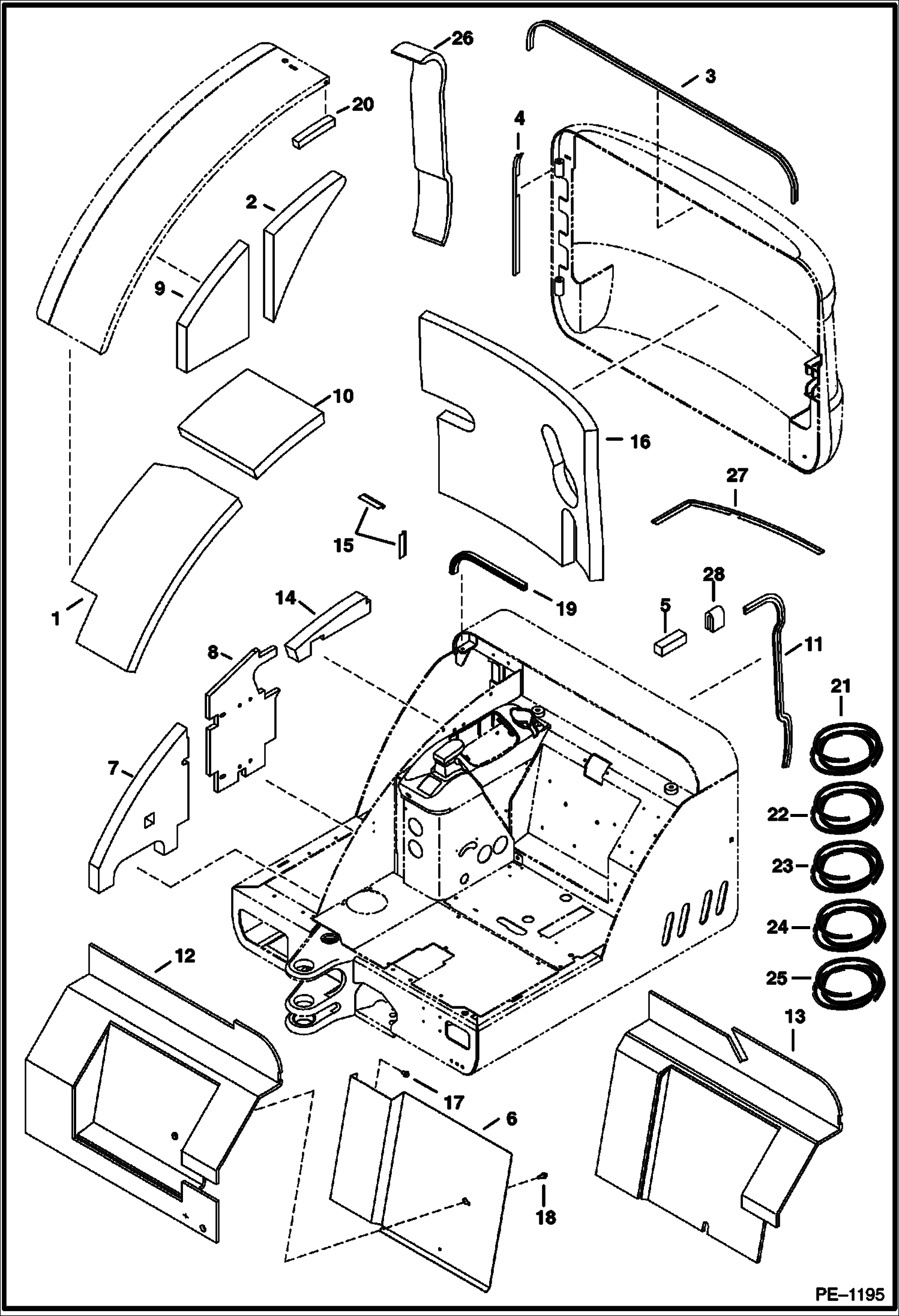

Запчасти Bobcat 331 INSULATION MAIN FRAME

1

6808484

INSULATION hood

2

6808485

INSULATION hood

3

SEAL NLA - tailgate - use 64'' of Ref. 22 - Was 6808486 - A

4

SEAL NLA - tailgate - use 8'' of Ref. 22 - Was 6808493 - A

5

SEAL NLA - foam - use 8'' of Ref. 23 - Was 6808497 - A

6

6808808

PLATE

7

6809238

INSULATION

8

6809240

INSULATION

8

6811150

INSULATION

9

6809269

INSULATION hood

10

6809270

INSULATION hood

11

SEAL NLA - bulb - use 42'' of Ref. 24 - Was 6809579 - A

12

6809652

INSULATION

13

6809653

INSULATION

14

6809799

INSULATION

15

SEAL NLA - bulb - use 4'' of Ref. 25 - Was 6809800 - A

16

6809808

INSULATION

17

26GM10020

BOLT

18

26GM10030

BOLT

19

SEAL NLA - use 18'' of Ref. 21

20

6810273

INSULATION

21

6675410

SEAL bulk - sold per foot

22

6676395

SEAL bulk - sold per foot

23

6554274

INSULATION bulk - sold per foot

24

6675732

SEAL bulk - sold per foot

25

6676396

SEAL bulk - sold per foot

26

7114282

INSULATION Was 6815951 - A

27

SEAL NLA - use 30'' of Ref. 25

28

6816407

SEAL
