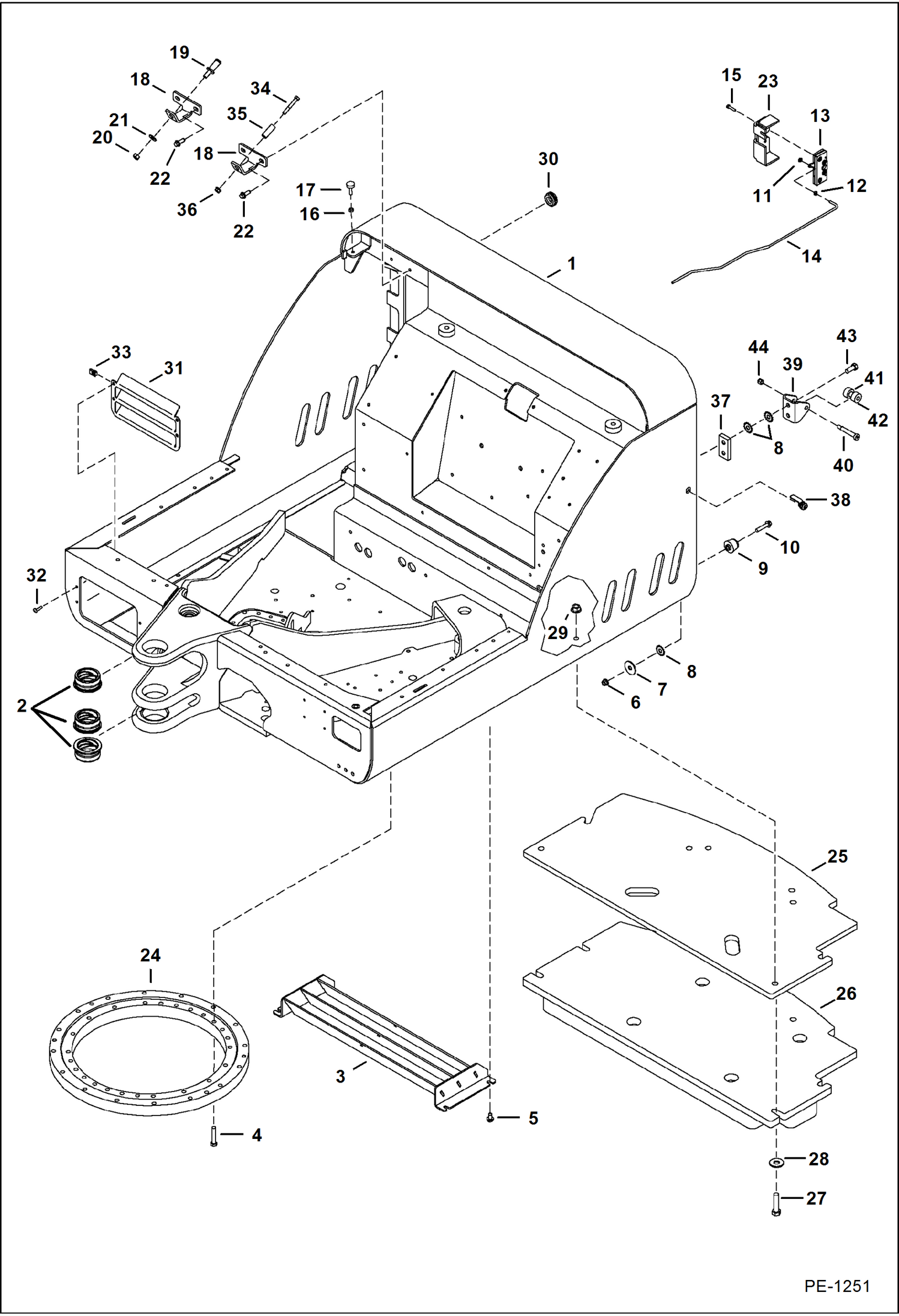

Запчасти Bobcat 331 UPPERSTRUCTURE MAIN FRAME

1

UPPERSTRUCTURE See Illustration ENGINE & ATTACHING PARTS/ PE1201 See Illustration TAILGATE/ PE1405 - NLA - Order 6810129, Ref. 37- 44, all items on Ill. PE-1405, Refs. 4, 28, 33, 34, 36, 38, 43, 45, 4

1

6810129

UPPERSTRUCTURE See Illustration TAILGATE/ PE1405 - Order 6810129, Ref. 37- 44, all items on Ill. PE-1405

1

UPPERSTRUCTURE NLA

1

6808306

HINGE PLATE

2

6807956

BUSHING

3

6808051

LOUVER

4

55CM1260

SCREW Was 7CM01260B - B

5

26GM10020

BOLT

6

51DM10

NUT

7

6560899

WASHER

8

6675273

WASHER

9

6808365

BUMPER

10

29CM1050

BOLT

11

85D4

NUT 5

12

7D4

NUT

13

6675687

LATCH

14

6809385

ROD

15

1CM630

BOLT

16

61D5

NUT

17

6655399

BUMPER

18

MOUNT NLA - Order 6810664 & Ref. 34, 35, 36 - Was 6809918 - A

18

6810664

MOUNT

19

6676341

STRIKER

20

61D7

NUT

21

27E6

WASHER 5

22

26GM10030

BOLT

23

6808230

MOUNT

24

6655124

BEARING

25

7131894

PLATE, COUNTERWEIGHT 331 - Was 7125927 - A

26

7126437

COUNTERWEIGHT 331D, 331ED W/long arm kit & 334D - Was 6810120 - A

27

1CM1665

SCREW

28

25E26

WASHER

29

51DM16

NUT

30

6810133

GROMMET

31

6810578

LOUVER

32

6809030

SCREW

33

6676026

NUT clip

34

17C640

BOLT 5

35

6719550

TUBE

36

55D6

NUT

37

6810802

BAR bar

38

6678025

LOCK W/O key - Ignition key 6693241

38

KEY NLA - two keys W/ring - Order 6693241 - Was 6709527 - A

38

6693241

KEY 10 ignition - single key W/O ring

39

6809727

CHANNEL

40

38C840

BOLT

41

6809726

ROLLER

42

6809734

BUSHING

43

17C820

BOLT

44

59D6

NUT
