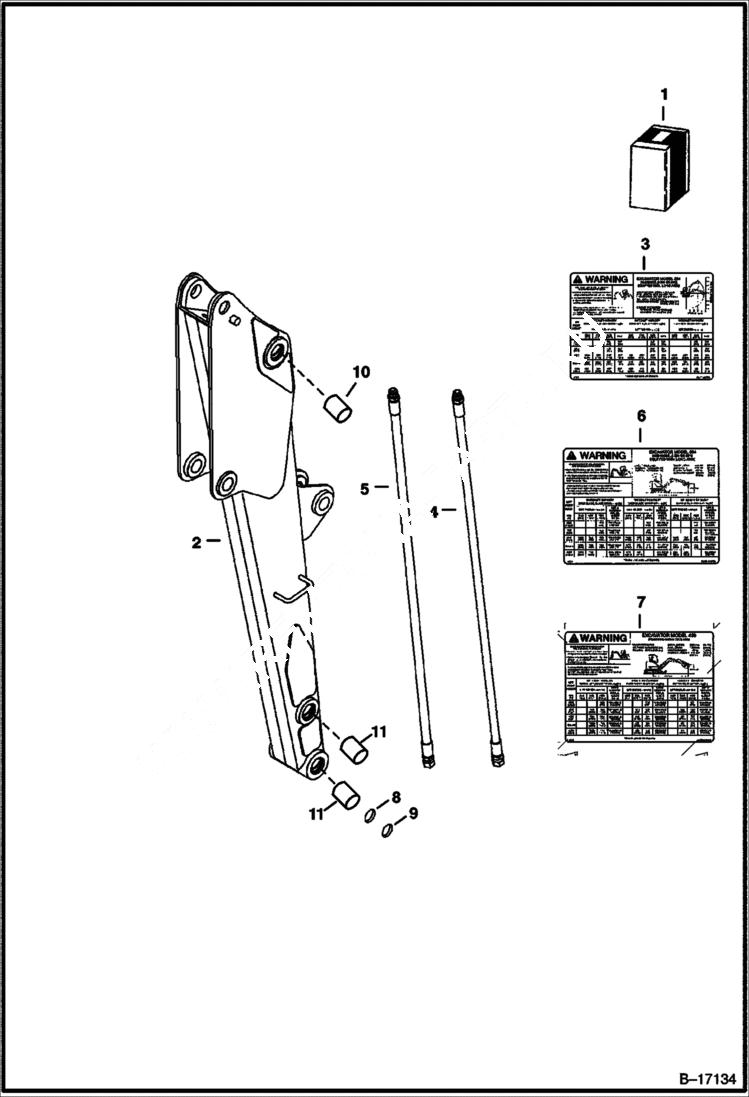

Запчасти Bobcat 331 LONG ARM KIT ACCESSORIES & OPTIONS

1

KIT NLA - Order components - Was Sales #6803896 - A

2

6812291

ARM Was 6803894 - A

3

6805626

DECAL

4

6803909

HOSE

5

6809573

HOSE replaces (1) Ref. 4 & (1) Ref. 7 on rod end bucket cylinder

6

6810009

DECAL

7

87F7

UNION

8

25K40112

O RING 10 Use W/Ref. 2 (6812291 Arm) - Not in Kit

9

6811260

O-RING Use W/Ref. 2 (6812291 Arm) - Not in Kit

10

6815277

BUSHING Was 6803207 - A

11

6803213

BUSHING, PRESS FIT
