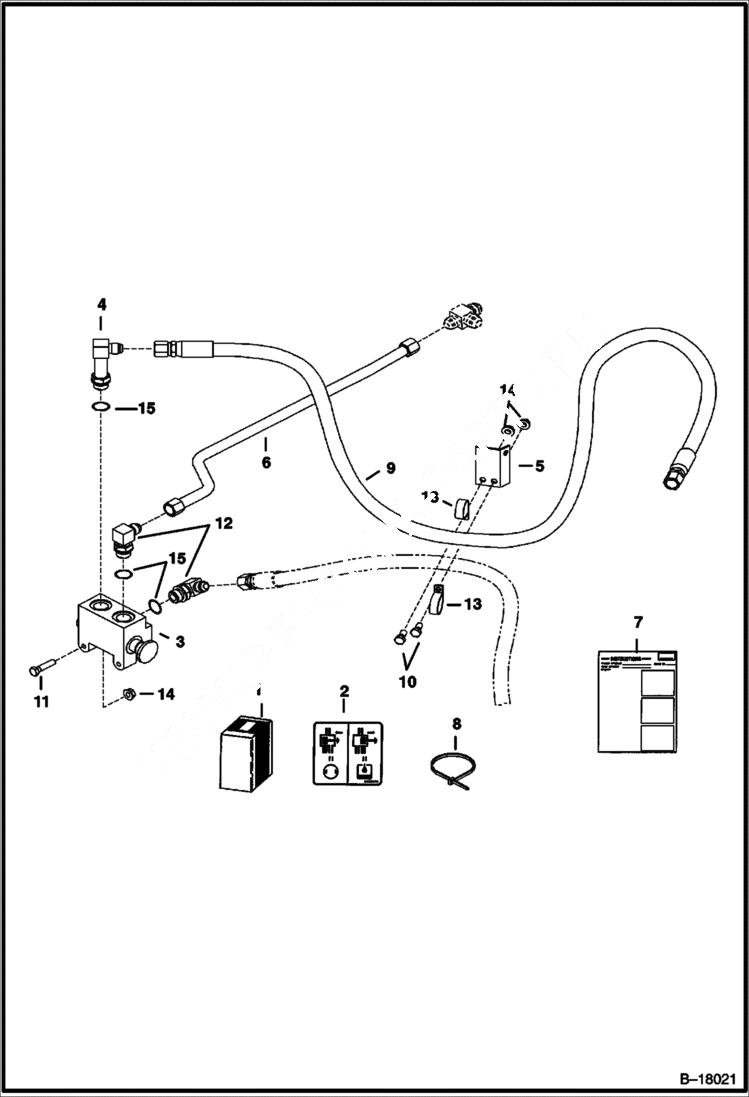

Запчасти Bobcat 331 DIRECT-TO-TANK KIT (S/N 512918212 & Above, 517711001 & Above and 516711721 & Above) ACCESSORIES & OPTIONS

1

6806683

KIT

2

6539812

DECAL

3

6660267

VALVE See Illustration DIRECT-TO TANK/ B13660

4

6804339

CONNECTOR W/Ref. 15

4

97K12

O'RING flared end

5

6806194

TUBE

6

6806195

HOSE

7

6806200

BRACKET

8

1CM820

BOLT

9

1CM845

BOLT

10

17KB1212

FITTING, HYD ELBOW Was 17KV00008B - A

10

97K12

O'RING flared end

11

30H56

CLIP

12

30H60

CLIP

13

43DM8

NUT

14

6900936

INSTRUCTIONS

15

99K12

O RING
