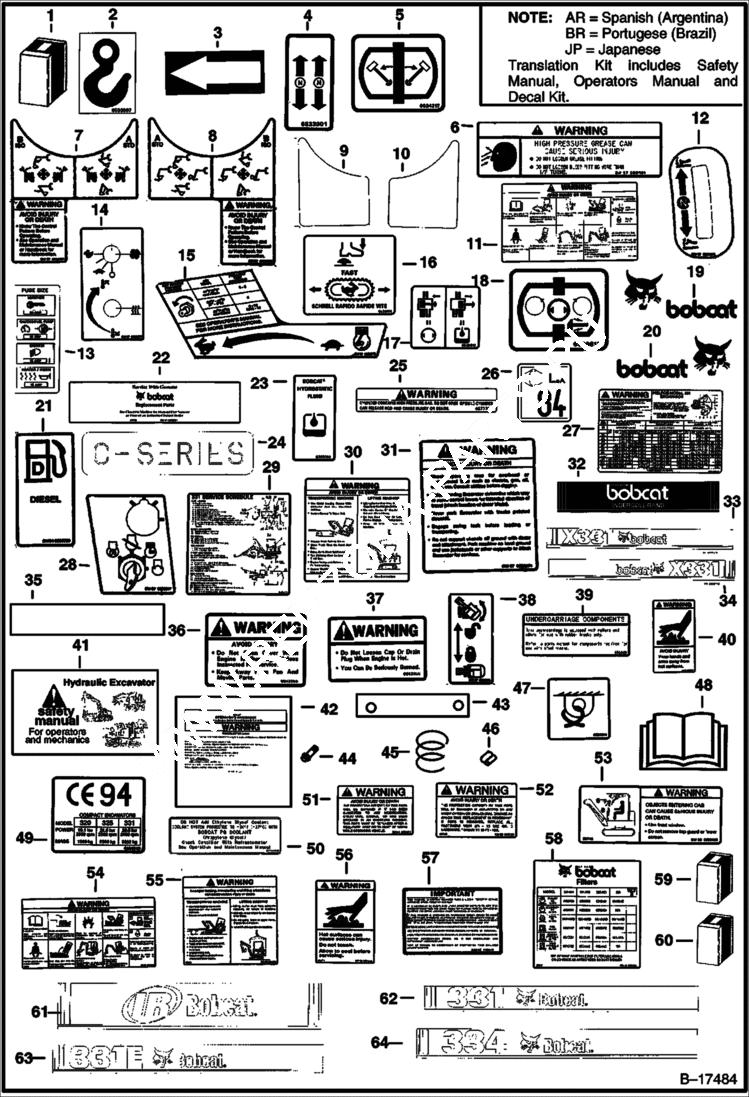

Запчасти Bobcat 331 DECALS (S/N 512915200 & Above, 516711001 & Above and 517711001 & Above) ACCESSORIES & OPTIONS

1

6900576

KIT, DECAL Includes Refs. 2-32, 35-40, 47, 48 & 50 - for model 334 - Also Order (1) ea. of Ref. 33 (6804317 Decal), Ref. 34 (6804318 Decal) & Ref.27 (NLA/6804320 Decal)

2

6594897

DECAL Hook

3

6533899

DECAL Arrow

4

6533901

DECAL Drive

5

6534217

DECAL Boom Swing Pedal

6

7168039

DECAL, WARNING See Illustration DECALS/ NA6216 - high pressure grease - Was 6804114 - A

7

6802981

DECAL L.H. - Control, Standard and ISO

8

6802980

DECAL R.H. - Control, Standard and ISO

9

6804024

DECAL Control, Pattern Mask

10

6804025

DECAL Control, Pattern Mask

11

DECAL NLA - Order Ref. 54 (6807776 Decal) - Warning - Was 6588380 - A

12

6802978

DECAL Blade

13

6588921

DECAL Fuse

14

6802975

DECAL Heater

15

6802979

DECAL Engine speed and Pre-Heat

16

6804116

DECAL Two Speed Travel - A

17

6628802

DECAL Valve - Aux. Selector

18

6539813

DECAL Auxiliary pedal

19

6557412

DECAL Bobcat head

20

6557413

DECAL Bobcat head

21

6589739

DECAL Diesel

22

6565200

DECAL, FILTER

23

6565990

DECAL, OIL HYD 5 hydrostatic fluid fill

24

6708207

DECAL C-Series

25

6577754

DECAL, WARNING 5 gas spring

26

6560573

DECAL spark arrestor

27

6806615

DECAL Lift Chart - 331 - Was 6589745 - A

27

6805625

DECAL Lift Chart - 331 W/Counterweight & X-Change Kit

27

DECAL NLA - Order 6806616 - Lift Chart - 334 & 331 W/Long Arm Kit - Was 6804320 - A

27

6805626

DECAL Lift Chart - 334 & 331 W/Long Arm Kit - W/Counterweight Kit & X-Change

27

6806615

DECAL 331 W/X-Change

27

6806616

DECAL 334/331, 331E W/Long Arm & X-Change

27

6804687

DECAL 331E W/Counterweight & X-Change & 331 of 334 W/Extendable Arm Kit

28

6802977

DECAL Key Switch

29

6804326

DECAL Service Schedule

30

DECAL NLA - Order Ref. 55 (6804231 Decal) - Warning - Was 6588382 - A

31

DECAL NLA - Warning - Order Ref. 55 (6804231 Decal) & 56 (6804232 Decal), Also See Refs. 11 (NLA/6588380 Decal) & 30 (NLA/6588382 Decal) - Was 6802974 - A

32

DECAL NLA - Bobcat engine cover - Was - A

33

6588718

DECAL Bobcat - R.H. - 331 - Not in Kit - revised decal now W/O X

33

6804317

DECAL Bobcat - R.H. - 334 - Not in Kit - revised decal now W/O X

33

6805175

DECAL Bobcat - R.H. - 331E - Not in Kit - revised decal now W/O X

34

6588719

DECAL Bobcat - L.H. - 331 - Not in Kit - revised decal now W/O X

34

6804318

DECAL Bobcat - L.H. - 334 - Not in Kit - revised decal now W/O X

34

6805176

DECAL Bobcat - L.H. - 331E - Not in Kit - revised decal now W/O X

35

6593245

TREAD

36

6643355

DECAL Warning - not used on later models

37

DECAL NLA - Order Ref. 57 (6804233 Decal) - Warning - Was 6643356 - A

38

6809713

DECAL Swing Lock

39

6589129

DECAL Track-Rubber

40

DECAL NLA - Order Ref. 56 (6804232 Decal) - Warning - Was 6589697 - A

41

6570354

MANUAL Safety

42

6900465

HANDBOOK Operators - English

43

6589347

STRAP elastic - for holding the operator handbook

44

29CM812

BOLT For attaching the strap to the cab

45

6558309

WIRE ROPE 46'' (1170 mm) long - Bulk Sold Per Foot - Also Order (2) of Ref. 46 (6558310 Sleeve)

46

6558310

SLEEVE

47

6727595

DECAL Was 6595014 - B

48

6707971

DECAL Operators Manual

49

6595015

DECAL CE94 - not used on U.S. models

50

6708929

DECAL, COOLANT propylene glycol

51

6596361

DECAL Warning - ROPS

52

6596261

DECAL Warning - FOPS

53

6596163

DECAL Warning - FOPS

54

6807776

DECAL warning - Was 6804230 - A

55

6804231

DECAL warning

56

6804232

DECAL warning

57

6804233

DECAL warning

58

6805015

DECAL filters

59

6804175AR

KIT Decal - SEE NOTE

59

6804175BR

KIT Decal - SEE NOTE

59

6804175JP

KIT Decal - SEE NOTE - Was 6801475JP - D

60

6804176AR

KIT Translation - SEE NOTE

60

6804176BR

KIT Translation - SEE NOTE

61

DECAL NLA - Logo - rear - not in kit - Was 6808533 - A

62

6808534

DECAL Model R.H. - 331 - Not in Kit

62

6808535

DECAL Model L.H. - 331 - Not in Kit

63

6808538

DECAL Model R.H. - 331E - Not in Kit

63

6808539

DECAL Model L.H. - 331E - Not in Kit

64

6808536

DECAL Model R.H. - 334 - Not in Kit

64

6808537

DECAL Model L.H. - 334 - Not in Kit
