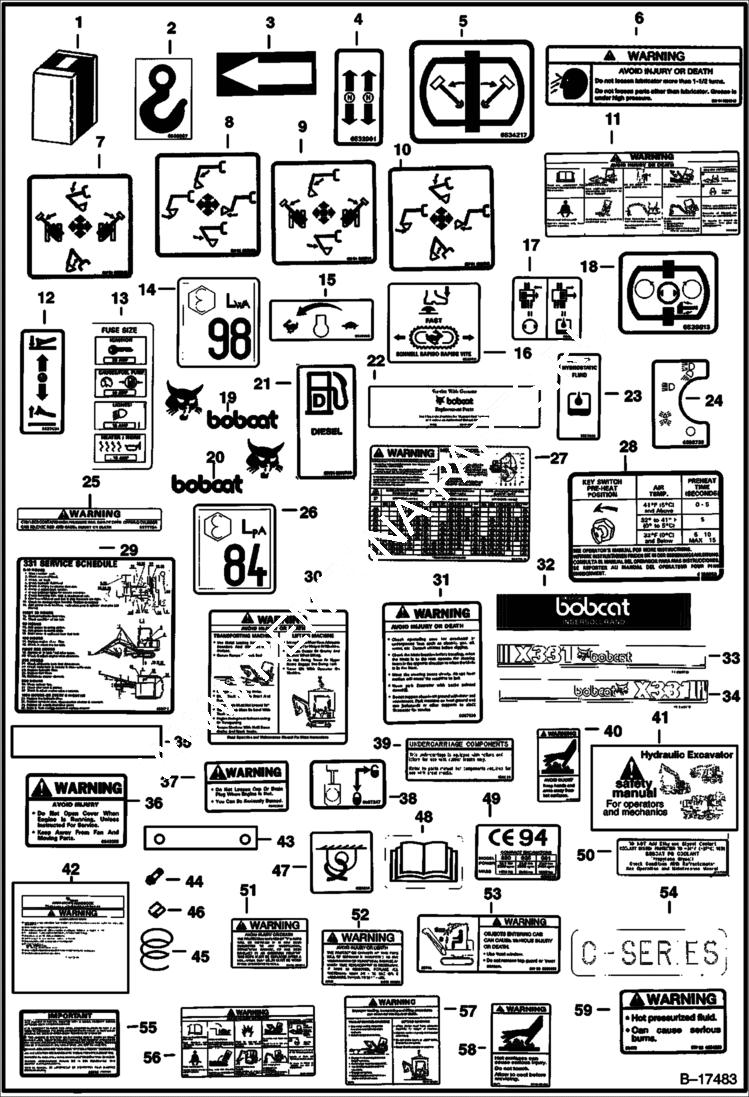

Запчасти Bobcat 331 DECALS (S/N 512913001 - 512915199) ACCESSORIES & OPTIONS

1

6589071

KIT, DECAL Includes Refs. 2-40, 47, 48, 50 & 54

1

6801249

DECAL KIT Spanish - Incl. Refs. 6, 11, 13, 17, 21-23, 25, 27-31, 36, 37, 39, 40 & 51

2

6594897

DECAL Hook

3

6533899

DECAL Arrow

4

6533901

DECAL Drive

5

6534217

DECAL Boom Swing Pedal

6

7168039

DECAL, WARNING Track Adjustment Warning - Was 6589742 - A

6

DECAL NSS - Warning - Spanish - Order Kit 6801249

7

6589842

DECAL Control - L.H. - Standard Control

8

6589843

DECAL Control - R.H. - Standard Control

9

6589741

DECAL Control - L.H. - I.S.O. Control

10

6589740

DECAL Control - R.H. - I.S.O. Control

11

DECAL NLA - Order Ref. 56 (6804230 Decal) - Warning - Was 6588380 - A

11

DECAL NSS - Order Ref. 1 (6801249 Kit) - Warning - Spanish

12

6537634

DECAL Blade

13

6588921

DECAL Fuse

13

DECAL NSS - Order Ref. 1 (6801249 Kit) - Fuse - Spanish

14

6539686

DECAL Noise warning - 98

15

6539688

DECAL Engine speed

16

6804116

DECAL Two Speed Travel - Was 6801914 - A

17

6628802

DECAL Valve - Aux. Selector

17

DECAL NSS - Order Ref. 1 (6801249 Kit) - Valve - Aux. Selector - Spanish

18

6539813

DECAL Auxiliary pedal

19

6557412

DECAL Bobcat head

20

6557413

DECAL Bobcat head

21

6589739

DECAL Diesel

21

DECAL NSS - Order Ref. 1 (6801249 Kit) - Diesel - Spanish

22

6565200

DECAL, FILTER

22

DECAL NSS - Order Ref. 1 (6801249 Kit) - Filter - Spanish

23

6565990

DECAL, OIL HYD 5 hydrostatic fluid fill

23

DECAL NSS - Order Ref. 1 (6801249 Kit) - Hydraulic Fluid - Spanish

24

6588730

DECAL Light Switch

25

6577754

DECAL, WARNING 5 gas spring

25

DECAL NSS - Order Ref. 1 (6801249 Kit) - Waring - Spanish

26

6579384

DECAL Noise Warning - 84

27

6806615

DECAL Lift Chart - Was 6589745 - A

27

DECAL NSS - Order Ref. 1 (6801249 Kit) - Lift Chart - Spanish

28

6589059

DECAL Pre-Heat

28

DECAL NSS - Order Ref. 1 (6901249 Kit) - Pre-Heat - Spanish

29

6628906

DECAL Service Schedule - W/Inline Filter

29

DECAL NSS - Order Ref. 1 (6801249 Kit) - Service Schedule - W/Inline Filter - Spanish

30

DECAL NLA - Order Ref. 57 (6804231 Decal) - Warning - Was 6588382 - A

30

DECAL NSS - Order Ref. 1 (6801249 Kit) - Warning - Spanish

31

DECAL NLA - Warning - Was 6587139 - A

31

DECAL NSS - Order Ref. 1 (6801249 Kit) - Warning - Spanish

32

DECAL NLA - Bobcat engine cover - Was - A

33

6588718

DECAL Bobcat - R.H.

34

6588719

DECAL Bobcat - L.H.

35

6593245

TREAD

36

6643355

DECAL Warning

36

DECAL NSS - Order Ref. 1 (6801249 Kit) - Warning - Spanish

37

DECAL NLA - Order Ref. 59 (6804233 Decal) - Warning - Was 6643356 - A

37

DECAL NSS - Order Ref. 1 (6801249 Kit) - Warning - Spanish

38

6587247

DECAL Swing Lock

39

6589129

DECAL Track-Rubber

39

DECAL NSS - Track-Rubber - Spanish - Order Kit

40

DECAL NLA - Order Ref. 58 (6804232 Decal) - Warning - Was 6589697 - A

40

DECAL NSS - Order Ref. 1 (6801249 Kit) - Warning - Spanish

41

6570354

MANUAL Safety

42

6900465

HANDBOOK Operators - English

43

6589347

STRAP elastic - for holding the operator handbook

44

29CM812

BOLT For attaching the strap to the cab

45

6558309

WIRE ROPE 46'' (1170 mm) long - Bulk Sold Per Foot - Also Order (2) of Ref. 46 (6558310 Sleeve)

46

6558310

SLEEVE

47

6727595

DECAL Was 6595014 - B

48

6707971

DECAL Operators Manual

49

6595015

DECAL CE94-not used on U.S. models

50

6708929

DECAL, COOLANT propylene glycol

50

DECAL NSS - Order Ref. 1 (6801249 Kit) - PG Coolant - Spanish

51

6596361

DECAL Warning - ROPS

52

6596261

DECAL Warning - FOPS

53

6596163

DECAL Warning - FOPS

54

6708207

DECAL C-Series

55

6560573

DECAL spark arrestor

56

6807776

DECAL warning - Was 6804230 - A

57

6804231

DECAL warning

58

6804232

DECAL warning

59

6804233

DECAL warning
