Запчасти Bobcat 331 ENGINE MOUNTING, FLYWHEEL & STARTER (S/N 512915200 & Above, 516711001 & Above, 517711001 & Above) POWER UNIT

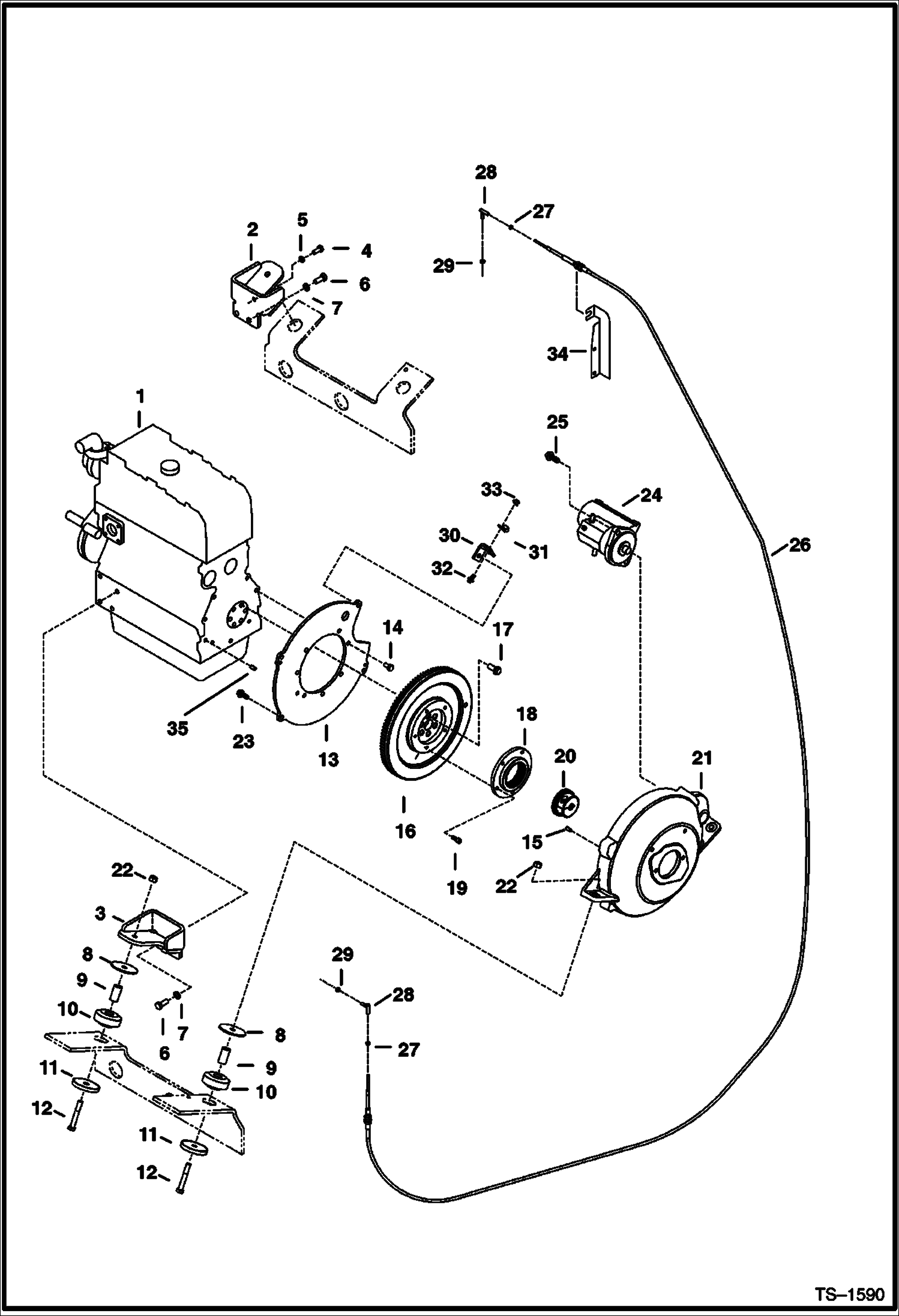

Схема запчастей Bobcat 331 - ENGINE MOUNTING, FLYWHEEL & STARTER (S/N 512915200 & Above, 516711001 & Above, 517711001 & Above) POWER UNIT

Артикул

Название

Примечание

Количество

1

ENGINE See Illustration ENGINE & GASKET KITS/ B16450 NLA - Was 6704441 - A

2

6589110

MOUNT

3

6589107

MOUNT

4

5CM1025

BOLT

5

6EM100

WASHER

6

6CM1230

BOLT

7

6EM120

WASHER

8

6705106

WASHER

9

6706043

SPACER

10

6661785

MOUNT, ENG

11

6661787

WASHER

12

1CM1280

BOLT

13

6801237

PLATE

14

5CM1020

SCREW

15

21JM816

PIN

16

7158136

FLYWHEEL, ENG ASSY See BTI388exc - Was 7102172 - A

16

6510470

RING GEAR

17

6598275

BOLT Was 6652487 - A

18

6670757

COUPLER

19

3GM820

SCREW

20

6850038

COUPLING

21

6801199

HOUSING

22

53DM12

NUT

23

29CM1025

BOLT

24

STARTER See Illustration STARTER/ D2437

25

29CM1235

BOLT

26

6660293

CABLE Engine speed control

27

14D10

NUT

28

6644965

BALL JOINT

29

62D4

NUT

30

6804078

BRACKET

31

30H22

CLIP

32

29CM816

SCREW

33

43DM8

NUT

34

6595422

BRACKET

35

3974868

PIN Dowel

Выбрано товаров: 36
