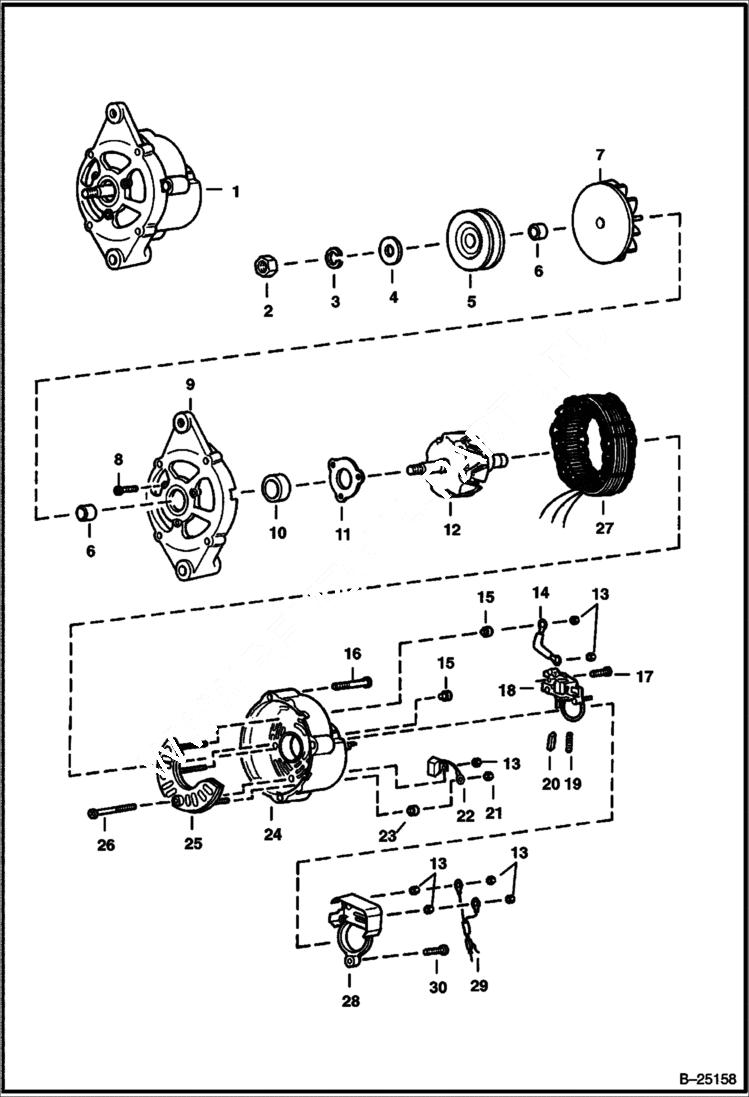

Запчасти Bobcat 331 ALTERNATOR ELECTRICAL SYSTEM

1

6661611

ALTERNATOR See BTIE-022 - Less pulley & fan - W/Refs. 2-4, 6 & 8-30

1

6661611REM

ALTERNATOR, 55 AMP

1

6661611EF

ALTERNATOR

2

6659371

NUT

3

6659372

WASHER

4

6632323

WASHER

5

6571536

PULLEY Was 6659373 - D

6

6571554

SPACER Was 6659374 - D

7

6659375

FAN

8

6659378

BOLT

9

6659376

BRACKET W/Ref. 8, 10 & 11

10

6659379

BEARING

11

RETAINER NLA - Was 6632228 - A

12

6659380

ROTOR

13

6659387

NUT

14

6659397

TERMINAL

15

6659386

HOLDER

16

6659392

BOLT

17

6659396

SCREW

18

7031637

REGULATOR, VOLTAGE W/Ref. 19 & 20 - Was 6659393 - A

19

6659395

SPRING

20

6659394

BRUSH

21

6659391

NUT

22

6659388

CONDENSER

23

6659390

HOLDER

24

6659382

BRACKET W/Ref. 13, 15 & 21-27

25

6659384

RECTIFIER

26

6659385

SCREW

27

6659381

STATOR

28

6659398

COVER

29

6659400

CONNECTOR Assy.

30

6659399

SCREW
