Запчасти Bobcat 331 EXTENDABLE ARM CYLINDER (S/N 517711001 & Above) HYDRAULIC SYSTEM

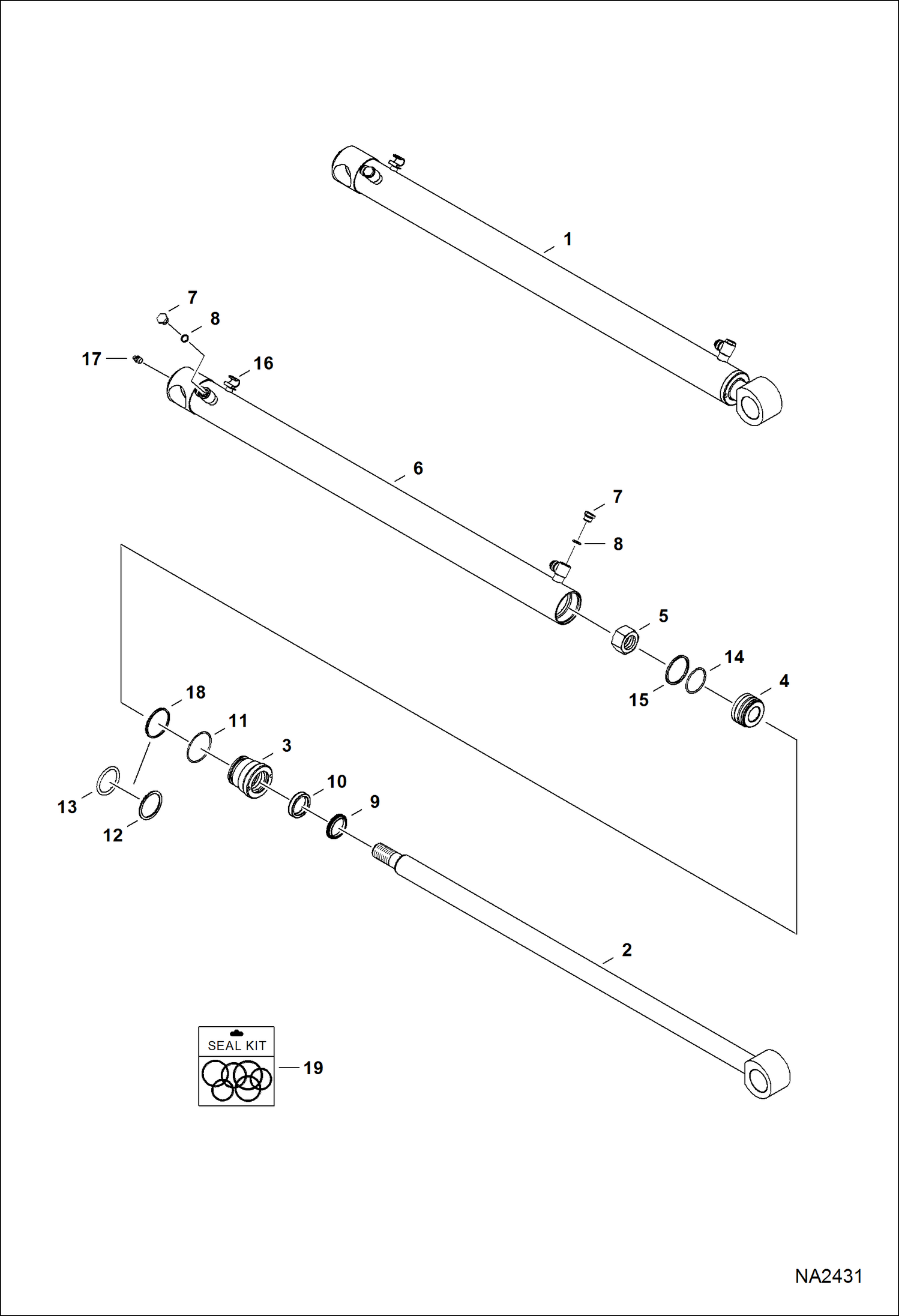

Схема запчастей Bobcat 331 - EXTENDABLE ARM CYLINDER (S/N 517711001 & Above) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

6810433

CYLINDER W/Ref. 2-15 - Was 6805637 - A

2

6810434

ROD Was 6805692 - A

3

6539236

HEAD

4

6807879

PISTON Was 6806356 - A

5

6810539

NUT Was 6804592 - A

6

6807996

HOUSING Was 6805694 - A

7

90KV5

PLUG W/Ref.

8

75K6

O-RING

9

6690707

WIPER, ROD CYL Was 6665086 - A

10

6667326

SEAL rod

11

82K140

O-RING Was 58K000140B - B

12

73K328

RING Back-up

13

25K60128

O RING 10 Was 54K60128 - A

14

25K30126

O RING 10 Was 54K30126 - B

15

6519328

SEAL

16

6690911

CLAMP

17

10H25

FITTING, GREASE 5

18

SEAL. QUAD NLA - Order Ref. 12 & 13 - Was 7207334 - A

19

7135557

KIT, SEAL Ref. 5, 9-15 - Was 6816535 - A

Выбрано товаров: 19
