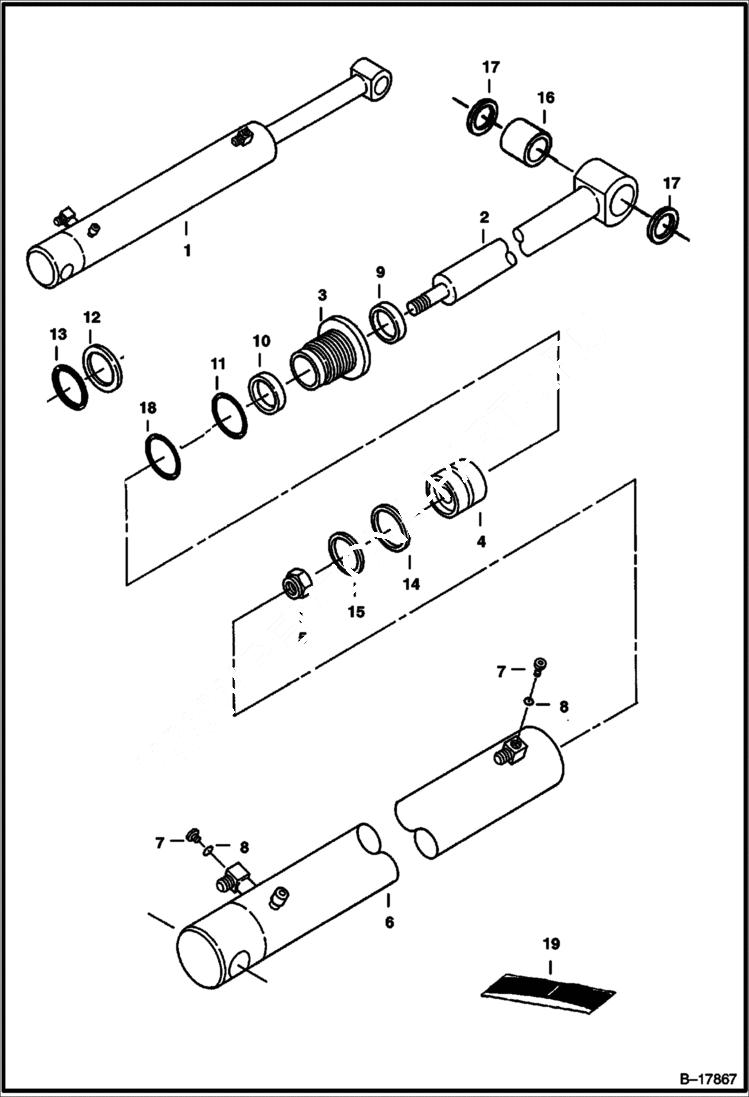

Запчасти Bobcat 331 ARM CYLINDER (S/N 512915338 & Above, 517711001 & Above, and 516711001 & Above) HYDRAULIC SYSTEM

1

7148240

CYLINDER W/Ref. 2-15 - Also Order Ref. 16 & (2) Ref. 17 - Was 6810563 - A

2

7148238

ROD Also Order Ref. 16 & (2) Ref. 17 - Was 6810564 - A

3

6586568

HEAD

4

6803006

PISTON

5

6810540

NUT Was 92D000020B - A

6

6803254

HOUSING

7

47K5

PLUG W/Ref. 8

8

79K6

O RING 10

9

6686999

WIPER, ROD CYL Was 6666544 - A

10

6667327

SEAL Was 6538140 - A

11

58K234

O RING 10 Was 54K40300 - B

12

73K232

RING, BACK-UP back-up - Was 80K232 - A

13

25K40224

O RING 10 Was 54K40224 - B

14

25K30218

O RING 10 Was 54K30218 - B

15

947088

RING, BACK-UP piston seal

16

6803863

BUSHING Was 6803683 - D

17

6652915

SEAL, OIL dust

18

7008355

SEAL, QUAD

19

6810719

SEAL KIT W/Refs. 5 & 9-15 - Was 6810719 - A
