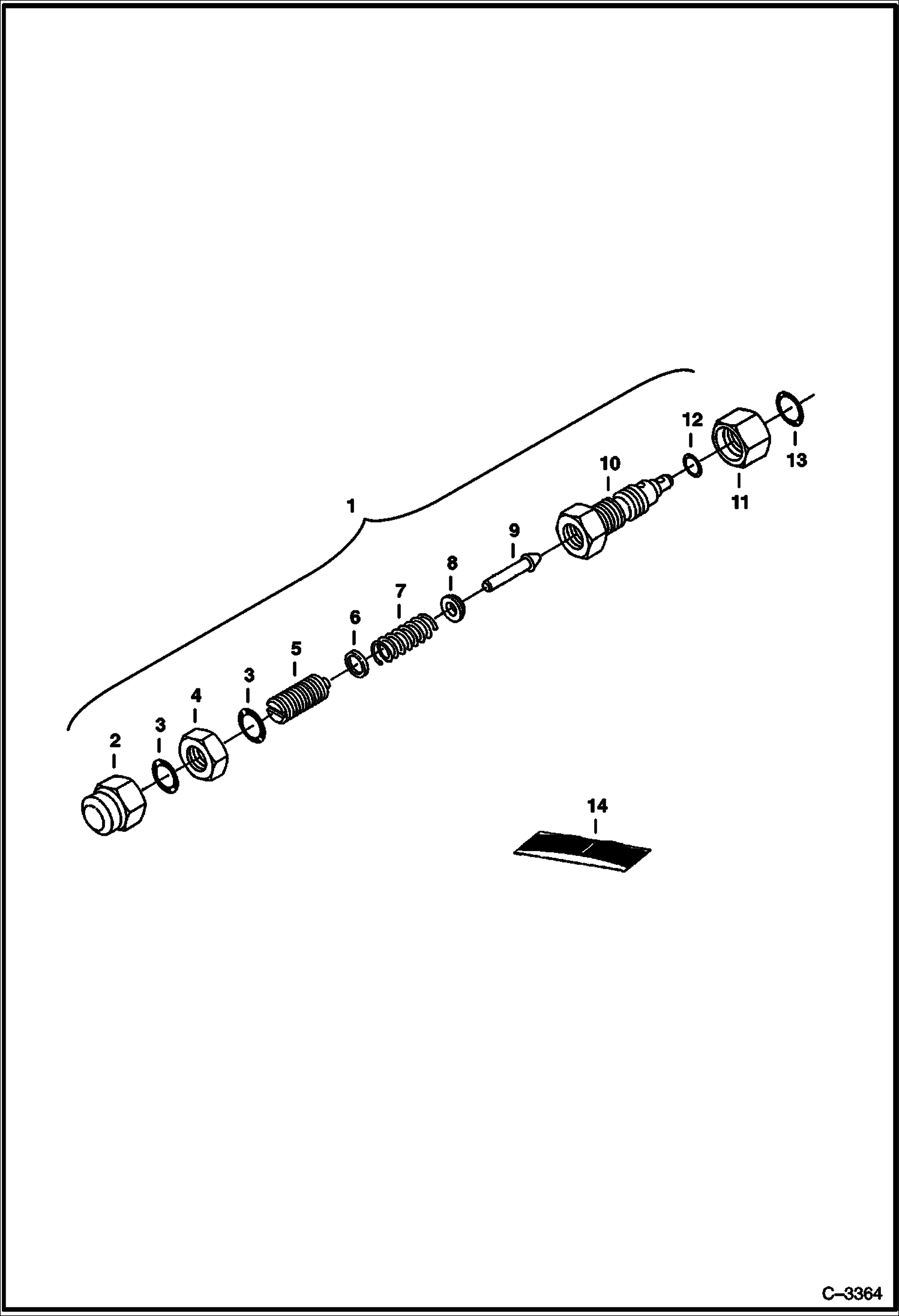

Запчасти Bobcat 331 RELIEF VALVE (S/N 512913001 & Above, 517711001 & Above, and 516711001 & Above) HYDRAULIC SYSTEM

1

6669022

RELIEF VALVE Set at 2500 PSI (17242 kPa) @ 7.6 GPM - W/Ref. 2-13

1

6669020

RELIEF VALVE Set at 2500 PSI (17242 kPa) @ 9 GPM - W/Ref. 2-13

1

6669021

RELIEF VALVE Set at 4000 PSI (27587 kPa) @ 9 GPM - W/Ref. 2-13

2

6665461

NUT End Cap

3

O-RING NSS - Order Ref. 14

4

6665460

NUT

5

SCREW NSS - Adjusting - Order Ref. 1

6

6665529

SHIM

7

SPRING NSS - Order Ref. 14

8

STOP NSS - Spring - Order Ref.

9

POPPET NSS - Order Ref. 1

10

HOUSING NSS - Order Ref. 1

11

NUT NSS - Order Ref. 1

12

O-RING NSS - Order Ref. 14

13

O-RING NSS - Order Ref. 14

14

6665459

KIT Seal & Spring - Incl. Ref. 3, 7, 12 & 13
