Запчасти Bobcat 331 TRAVEL MOTOR (S/N 512913930 & Above, 517711001 & Above, and 516711001 & Above) HYDRAULIC SYSTEM

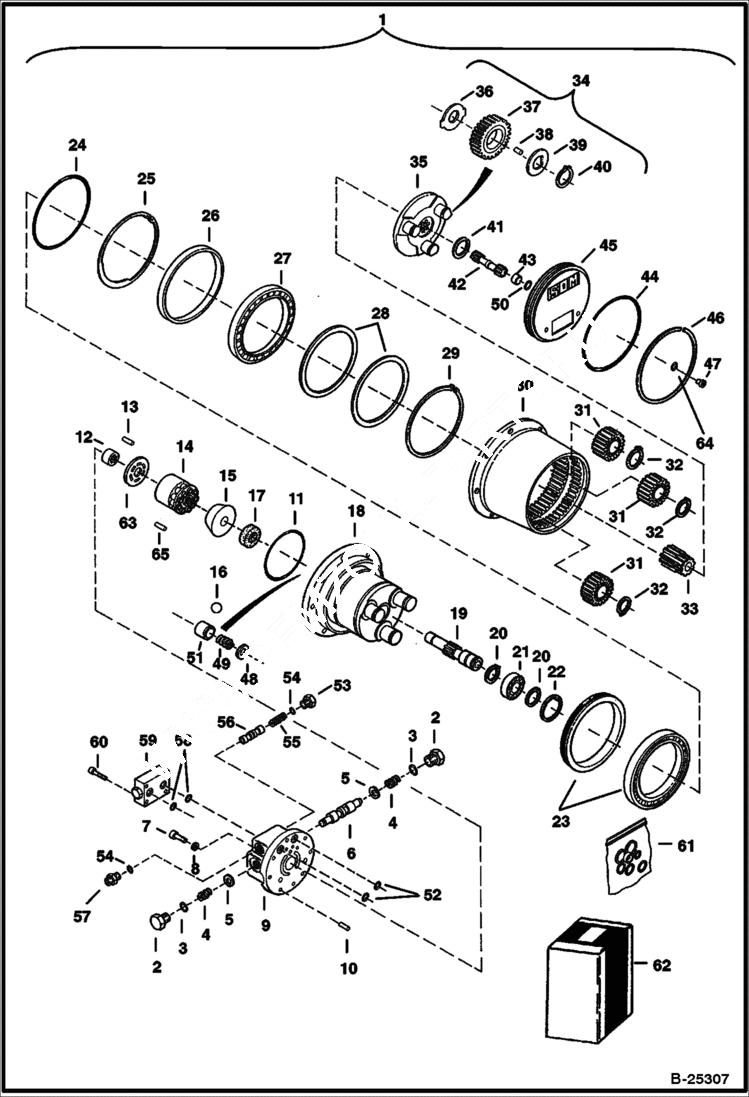

Схема запчастей Bobcat 331 - TRAVEL MOTOR (S/N 512913930 & Above, 517711001 & Above, and 516711001 & Above) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

6670667

MOTOR W/Refs. 2-60

2

6671915

PLUG

3

6671911

O-RING Incl. W/Ref. 61

4

6670138

SPRING Was 6671916 - A

5

6671917

WASHER

6

6671918

SPOOL

7

6671919

SCREW

8

6671920

WASHER

9

6671901

HOUSING, MOTOR TRAVEL

10

6671913

PIN

11

6671912

O-RING Incl. W/Ref. 61

12

6671914

BEARING

13

6667782

DOWEL PIN

14

6671902

PISTON ASSY W/Ref. 63

15

6671909

PLATE swash

16

6670130

BALL

17

6671908

SEAL Incl. W/Ref. 61

18

6686332

HOUSING Was 6669094 - B

19

6671903

SHAFT

20

6669130

SNAP RING

21

6669124

BEARING

22

6669131

SNAP RING

23

6669101

BEARING W/Seal

24

6669108

O-RING Incl. W/Ref. 61

25

6669105

SNAP RING

26

6669100

SPACER

27

6669110

BEARING, MOTOR DRIVE

28

6669119

SHIM 0,2 mm thick

28

6669120

SHIM 0,3 mm thick

28

6669121

SHIM 0,4 mm thick

28

6669122

SHIM 0,9 mm thick

28

6669123

SHIM 0,95 mm thick

29

6669104

SNAP RING

30

6669096

HOUSING

31

6669097

GEAR, MOTOR SPRING W/Bearing

32

6669102

SNAP RING

33

6669098

GEAR

34

6670127

GEAR ASSY W/Refs. 33 & 35-40

35

CARRIER NSS

36

WASHER NSS

37

GEAR NSS

38

BEARING NSS - Needle - (18) needed for each gear

39

WASHER NSS

40

SNAP RING NSS

41

6669103

SNAP RING

42

6670126

SHAFT

43

6667747

SPACER

44

6669107

O-RING Incl. W/Ref. 61

45

COVER NLA - Uses plug W/Washer - Order Ref. 45 (6669093 Cover) & Ref. 47 (6676161 Plug) - Was 6669093 - A

45

6669093

COVER

46

6669106

SNAP RING

47

6667771

PLUG W/Ref. 64 (6675272 Washer)

47

6676161

PLUG W/Ref. 64 O-Ring

48

6670133

WASHER metal

49

6670132

SPRING

50

6669597

SHIM .0007'' (0,2 mm) thick

50

6669598

SHIM .012'' (0,3 mm) thick

50

6669599

SHIM .019'' (0,5 mm) thick

51

6670131

PISTON

52

6671910

O-RING Incl. W/Ref. 61

53

6671933

PLUG Was 6670139 - B

54

6679861

O-RING Incl. W/Ref. 61 - Was 6671922 - B

55

6686078

SPRING Was 6670138 - B

56

6670704

SPOOL

57

6670136

ADAPTER

58

6671922

O-RING Incl. W/Ref. 61

59

6670134

VALVE ASSY Relief - Available as an assembly only

59

6679326

WASHER sealing - for plug

60

6670135

BOLT

61

6670129

SEAL KIT includes Ref. 3, 11, 17, 24, 44, 52, 54 & 58

62

6670128

KIT, SEAL Incl. Ref. 23 & 61

63

6671904

PLATE valve plate only - included W/Ref. 14

64

6675272

WASHER

64

O-RING NSS - order 6676161

65

6667776

DOWEL PIN dowel

Выбрано товаров: 75
