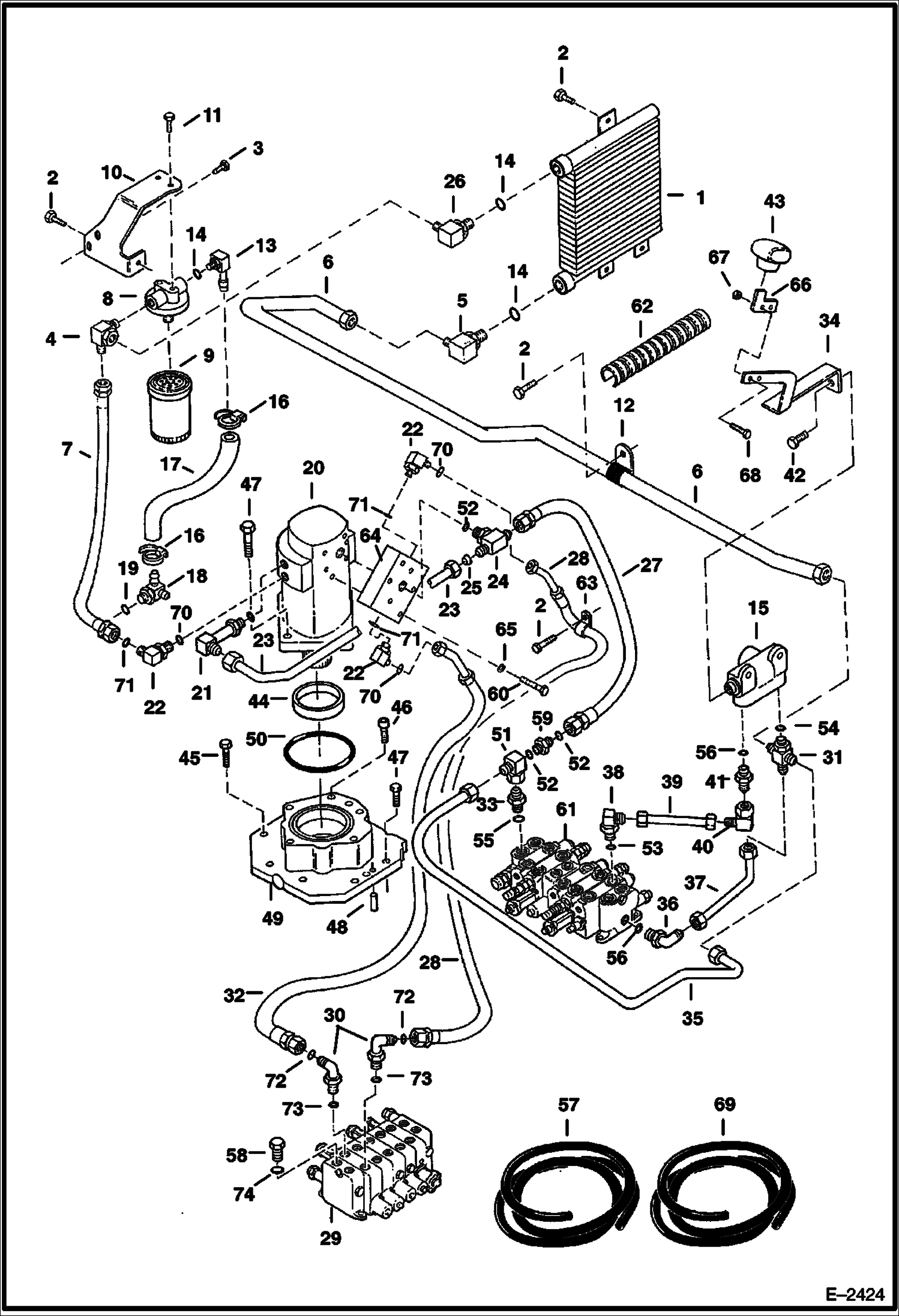

Запчасти Bobcat 331 HYDRAULIC CIRCUITRY (Valve to Swing Motor to Selector Valve to Cooler to Filter) (S/N 512915200 & Above, 517711001 & Above, and 516711001 & Above) HYDRAULIC SYSTEM

1

6666610

OIL COOLER

2

26GM8016

SCREW

3

26GM8013

BOLT

4

6628814

ELBOW W/Ref. 14

5

17K10

FITTING W/Ref. 14

6

6628554

TUBE

7

6805310

HOSE Was 6628812 - A

8

6654897

FILTER ASSY Assy - W/Ref. 9

9

6653336

ELEMENT

10

6596909

BRACKET

11

17C612

BOLT 5

12

30H57

CLAMP

13

1312337

ELBOW W/Ref. 14

14

79K16

O RING 10

15

6660267

VALVE See Illustration SELECTOR VALVE/ B21980 - Selector - Was 6668877 - A

16

42H24

CLAMP-5

17

HOSE NLA - Order Ref. 57 - 16'' (400 mm) long

18

6596791

TEE W/Ref. 19

19

79K20

O RING 10

20

6667882

MOTOR, DRIVE HYD See Illustration SWING MOTOR/ C3421 - Swing

21

6558510

ELBOW W/Ref. 52

22

ELBOW NLA - W/Ref. 70 & 71 - tapered boss face - Order 17KB606 - Was 17KN5 - A

22

17KB0606

FITTING W/Ref. 71 - flat boss face

23

6800305

TUBE

24

19K5

FITTING W/Ref. 52

25

6593801

ORIFICE .065'' (1,65 mm) - Was 6618286 - B

26

6702096

ELBOW W/Ref. 14

27

6587975

HOSE

28

6800325

HOSE

29

6670319

VALVE See Illustration CONTROL VALVE/ D2339 - Control

30

17KB0808

FITTING, HYD ELBOW W/Ref. 72 & 73 - Was 17KN00006B - A

31

6628387

TEE W/Ref. 54

32

6800322

HOSE

33

6800567

ADAPTER W/Ref. 55

34

6803381

LEVER

35

6628558

TUBE

36

17K8

FITTING W/Ref. 56

37

6628552

TUBE

38

763818

ELBOW W/Ref. 53

39

6628551

TUBE

40

6669333

ELBOW

41

15KB1012

FITTING, HYD CONNECTOR W/Ref. 56 - Was 755055B - A

42

35C612

BOLT

43

6802567

KNOB

44

6513681

BEARING

45

7CM1250

BOLT

46

3GM12100

BOLT

47

7CM1240

SCREW

48

20JM1025

DOWEL PIN Incl. W/Ref. 49

49

6628417

MOUNT See Illustration MOUNT ASSY/ C3393 - Assy. - Drive Motor

50

25K30508

O-RING, 10

51

6800254

ELBOW

52

79K6

O RING 10

53

79K8

O RING 10

54

79K14

O RING 10

55

79K10

O RING 10

56

79K12

O RING 10

57

6673825

HOSE bulk - sold per foot - Was 1310909B - A

58

24K7

PLUG W/Ref. 74

59

15K5

FITTING W/Ref. 52

60

17C640

BOLT 5

61

6670320

VALVE See Illustration CONTROL VALVE/ B25309 - Control

62

CONDUIT NLA - Order Ref. 69 - 16'' (406 mm) long

63

30H42

CLAMP

64

6669278

VALVE See Illustration CROSSPORT RELIEF VALVE/ B14785 - Cross Port

65

27E6

WASHER 5

66

6804046

BRACKET

67

6667837

NUT

68

6648410

BOLT

69

6643249

CONDUIT bulk - sold per foot

70

97K6

O RING 37 degree Flare End

71

99K6

O RING O-Ring Boss End

71

79K6

O RING 10 flat boss face

72

97K8

O-RING 37 degree Flare End

73

99K6

O RING O-Ring Boss End - Was 99K-7 - D

74

99K8

O-RING O-Ring Boss End
