Запчасти Bobcat 331 HYDRAULIC CIRCUITRY (L.H. Joystick Controls - Swing Motor & Arm) (ISO Control Pattern) (S/N 512915200 - 512917112 and 516711001 - 516711270) HYDRAULIC SYSTEM

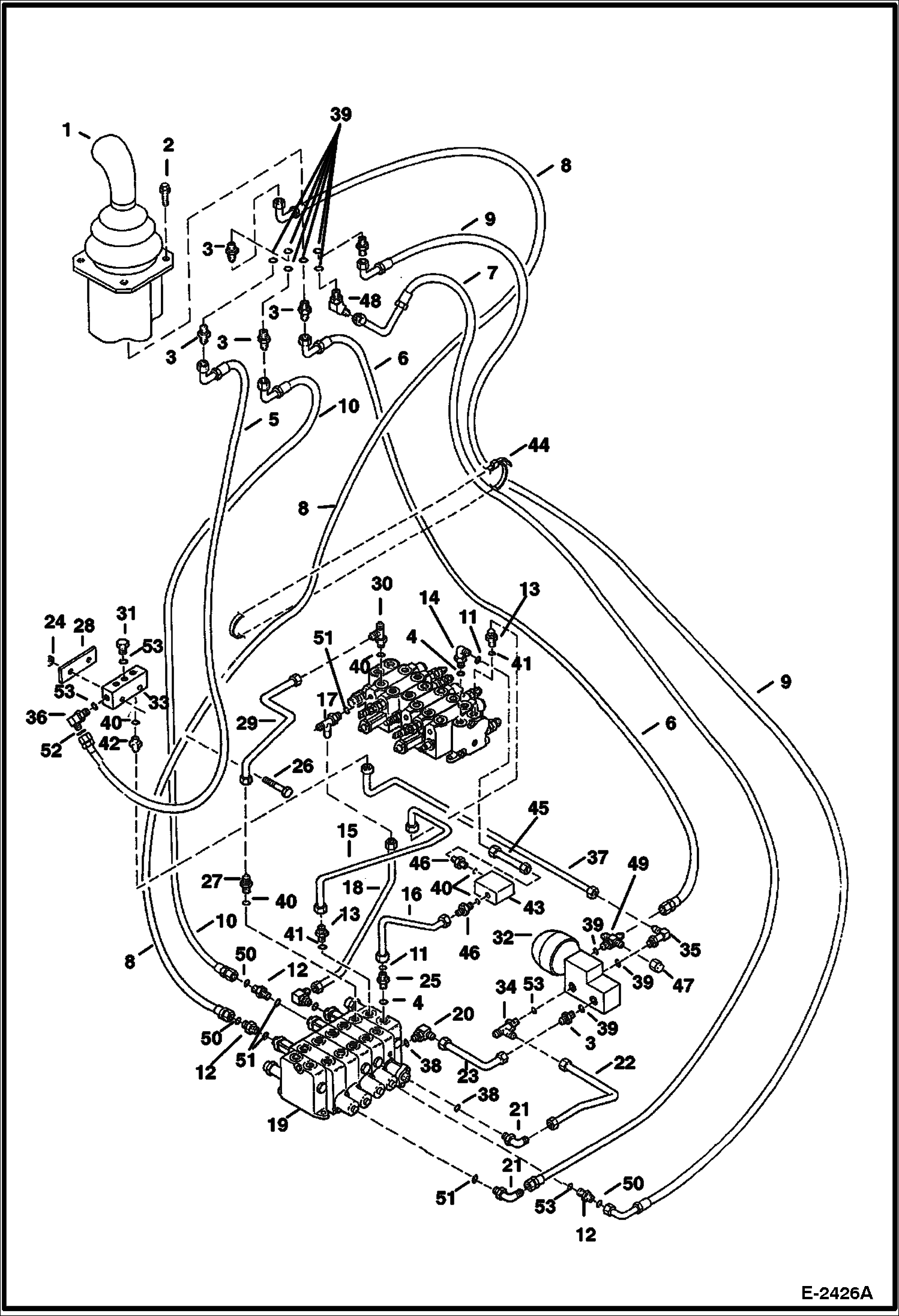

Схема запчастей Bobcat 331 - HYDRAULIC CIRCUITRY (L.H. Joystick Controls - Swing Motor & Arm) (ISO Control Pattern) (S/N 512915200 - 512917112 and 516711001 - 516711270) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

6667721

JOYSTICK See Illustration L.H. JOYSTICK CONTROLS/ B14600 - LH

2

26GM8020

SCREW

3

1308081

ADAPTER W/Ref. 39

4

99K8

O-RING O-Ring Boss End

5

6804000

HOSE

6

6804001

HOSE

7

6804106

HOSE Was 6804006 - D

8

6804002

HOSE

9

6804105

HOSE

10

6803074

HOSE

11

97K8

O-RING 37 degree Flare End

11

6670320

VALVE See Illustration CONTROL VALVE/ B25309 Control

12

15KB0404

FTG HYD S Connector W/Ref. 50 & 51

13

6800567

ADAPTER W/Ref. 41

14

17KN7

FITTING W/Ref. 4 & 11

15

6628471

TUBE

16

6801029

TUBE

17

21K3

CONNECTOR W/Ref. 38 - flat boss face

17

21KB0404

FITTING, HYD TEE W/Ref. 38 - tapered boss face - Was 21KN00003B - A

17

97K4

O'RING flared end

18

6628672

TUBE

19

6670319

VALVE See Illustration CONTROL VALVE/ D2339 Control

20

17K3

ELBOW W/Ref. 38 - flat boss face

21

17KB0604

ELBOW UNION W/Ref. 38 - Was 6579647 - A

22

6628671

TUBE

23

6800090

TUBE

24

4DM8

NUT

25

15KB1010

FITTING, HYD CONNECTOR W/Ref. 4 & 11 - Was 15KN00007B - A

26

1CM885

BOLT

27

6656391

CHECK VALVE W/Ref. 40

28

6628721

PLATE

29

6628464

TUBE

30

21K6

FITTING W/Ref. 40

31

24K5

PLUG W/Ref. 53 - Was 24KN00005B - A

32

6667819

VALVE See Illustration ACCUMULATOR VALVE/ C3418 Accumulator

33

6667830

DRAIN BLOCK

34

21KB0606

FTG HYD STRAIGHT TEE W/Ref. 52 & 53 - Was 21KN00005B - A

35

6558510

ELBOW W/Ref. 39

36

ELBOW NLA - W/Ref. 52 & 53 - tapered boss face - Order 17KB606 - Was 17KN5 - A

36

17KB0606

FITTING W/Ref. 53 - flat boss face

37

6628562

TUBE

38

79K4

O RING 10 flat boss face

38

99K4

O'RING tapered boss face - Was 99K-7 - B

39

79K6

O RING 10

40

79K8

O RING 10

41

79K10

O RING 10

42

6676658

VALVE assy - Was 6669593 - A

42

6672514

VALVE check

42

6672515

KIT, SEAL

43

743108

FITTING W/Ref. 40

44

6624289

STRAP, TIE

45

6628551

TUBE

46

731793

CONNECTR W/Ref. 40

47

36K5

CAP

48

6707895

ELBOW W/Ref. 39

49

6578209

TEE W/Ref. 39

50

97K4

O'RING 37 degree Flare End

51

99K4

O'RING O-Ring Boss End

52

97K6

O RING 37 degree Flare End

53

99K6

O RING tapered boss face

53

79K6

O RING 10 flat boss face
