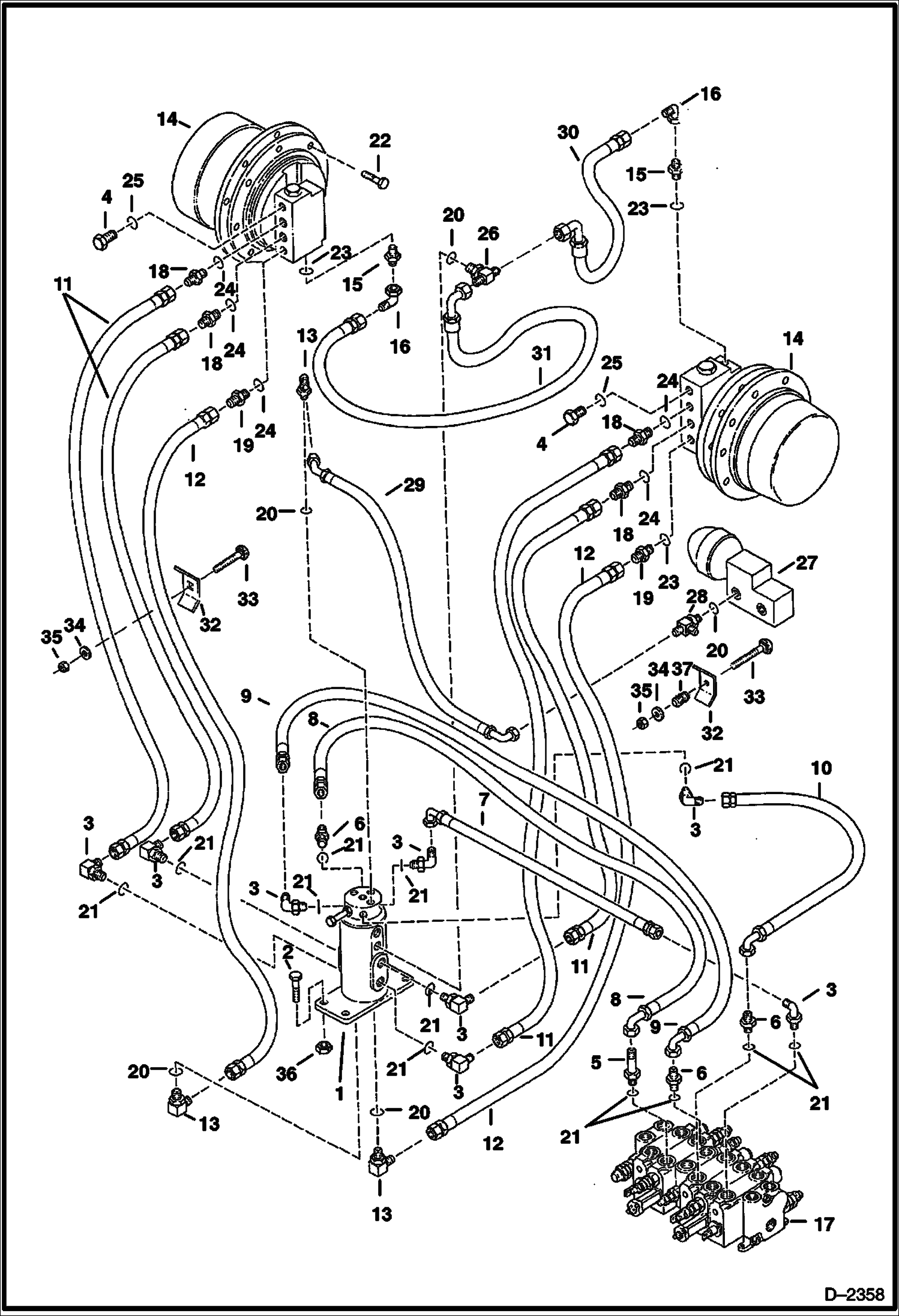

Запчасти Bobcat 331 HYDRAULIC CIRCUITRY (Valve to Swivel Joint to Travel Motor) (S/N 512913001 & Above, 516711001 & Above and 517711001 & Above) HYDRAULIC SYSTEM

1

7123864

SWIVEL ASSY See Illustration SWIVEL JOINT/ PE3057 - Was 6800524 - A

2

1CM1240

BOLT Was 1CM01230B - B

3

17K6

ELBOW W/Ref. 21

4

6653022

PLUG W/Ref. 25

4

91F5

O-RING

4

24K5

PLUG W/Ref. 25

5

16K6

FITTING W/Ref. 21

6

15K6

ADAPTER W/Ref. 21

7

6628800

HOSE

8

6628583

HOSE

9

6628782

HOSE

10

6628801

HOSE

11

6800815

HOSE

12

6534012

HOSE

13

17K5

ELBOW W/Ref. 20

14

TRAVEL MOTOR See Illustration TRAVEL MOTOR/ D2172 - Drive

15

6654895

ADAPTER W/Ref. 23

15

6670136

ADAPTER Incl. W/Ref. 14

16

11K5

FITTING

17

6668197

VALVE See Illustration CONTROL VALVE/ B25309 - Control

17

6670320

VALVE See Illustration CONTROL VALVE/ B25309 - Control

18

6655835

ADAPTER W/Ref. 24

18

15K6

ADAPTER

18

79K8

O RING 10

19

6654895

ADAPTER W/Ref. 23

19

15K5

FITTING

19

79K6

O RING 10

20

79K6

O RING 10

21

79K8

O RING 10

22

1CM1225

BOLT

23

6655250

O-RING

23

79K6

O RING 10

24

6655245

O-RING

24

79K8

O RING 10

25

6655244

O-RING

25

91F5

O-RING

26

19K5

FITTING W/Ref. 20

27

6667819

VALVE See Illustration ACCUMULATOR VALVE/ C3418 Accumulator

28

21K5

TEE W/Ref. 20

29

6628809

HOSE

30

6618198

HOSE

31

6587294

HOSE

32

6597380

CLAMP

33

21CM1070

BOLT

34

17EM100

WASHER

35

43DM10

NUT

36

51DM12

NUT

37

6805602

SPACER
