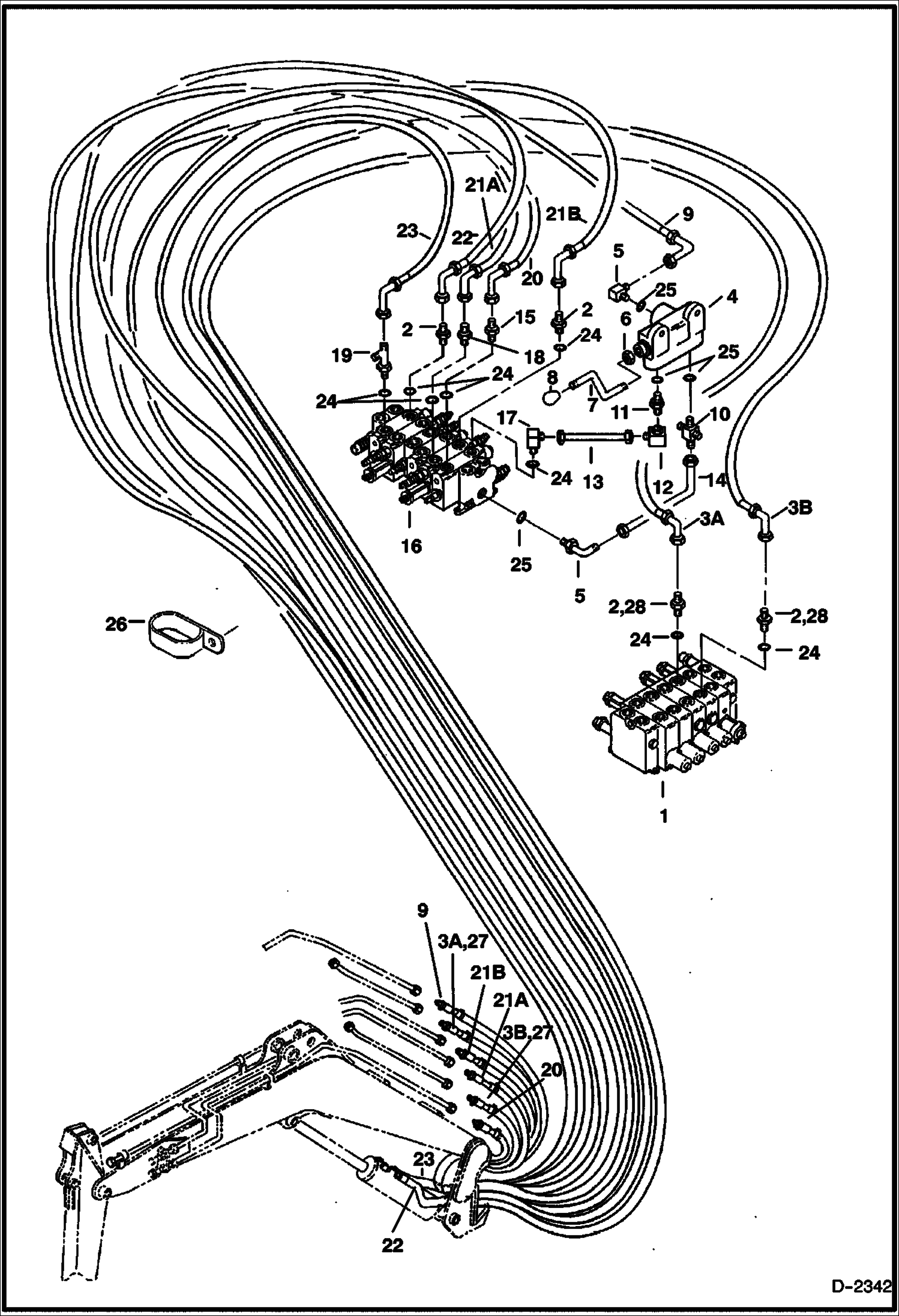

Запчасти Bobcat 331 HYDRAULIC CIRCUITRY (Boom, Arm Bucket & Auxiliary) (S/N 512913001 - 512915199) HYDRAULIC SYSTEM

1

6668196

VALVE See Illustration CONTROL VALVE/ D2339 Control

2

15K6

ADAPTER W/Ref. 24

3

HOSE NLA - Order Ref. 27 (2) & Ref. 28 (2)

4

6660267

VALVE See Illustration SELECTOR VALVE/ B21980 Selector - Was 6668877 - A

5

17K8

FITTING W/Ref. 25

6

61D6

NUT 5

7

6628783

ROD

8

6634534

KNOB

9

6668774

HOSE Auxiliary

10

6628387

TEE W/Ref. 25

11

15KB1012

FITTING, HYD CONNECTOR W/Ref. 25 - Was 755055B - A

12

6669333

ELBOW

13

6628551

TUBE

14

6628552

TUBE

15

6539572

ADAPTER W/Ref. 24

16

6668197

VALVE See Illustration CONTROL VALVE/ B25309 Control

16

6669386

VALVE See Illustration CONTROL VALVE/ B25309 Control

17

763818

ELBOW W/Ref. 24

18

16K6

FITTING W/Ref. 24

19

21K6

FITTING W/Ref. 24

20

6628357

HOSE Auxiliary

21

6589616

HOSE Bucket

22

6800631

HOSE Boom - Rod End

23

6800630

HOSE Boom - Base End

24

79K8

O RING 10

25

79K12

O RING 10

26

31H46

CLAMP

27

6804022

HOSE See Ref. 3 for additional info

28

16K6

FITTING W/Ref. 24 - See Ref. 3 for additional information
