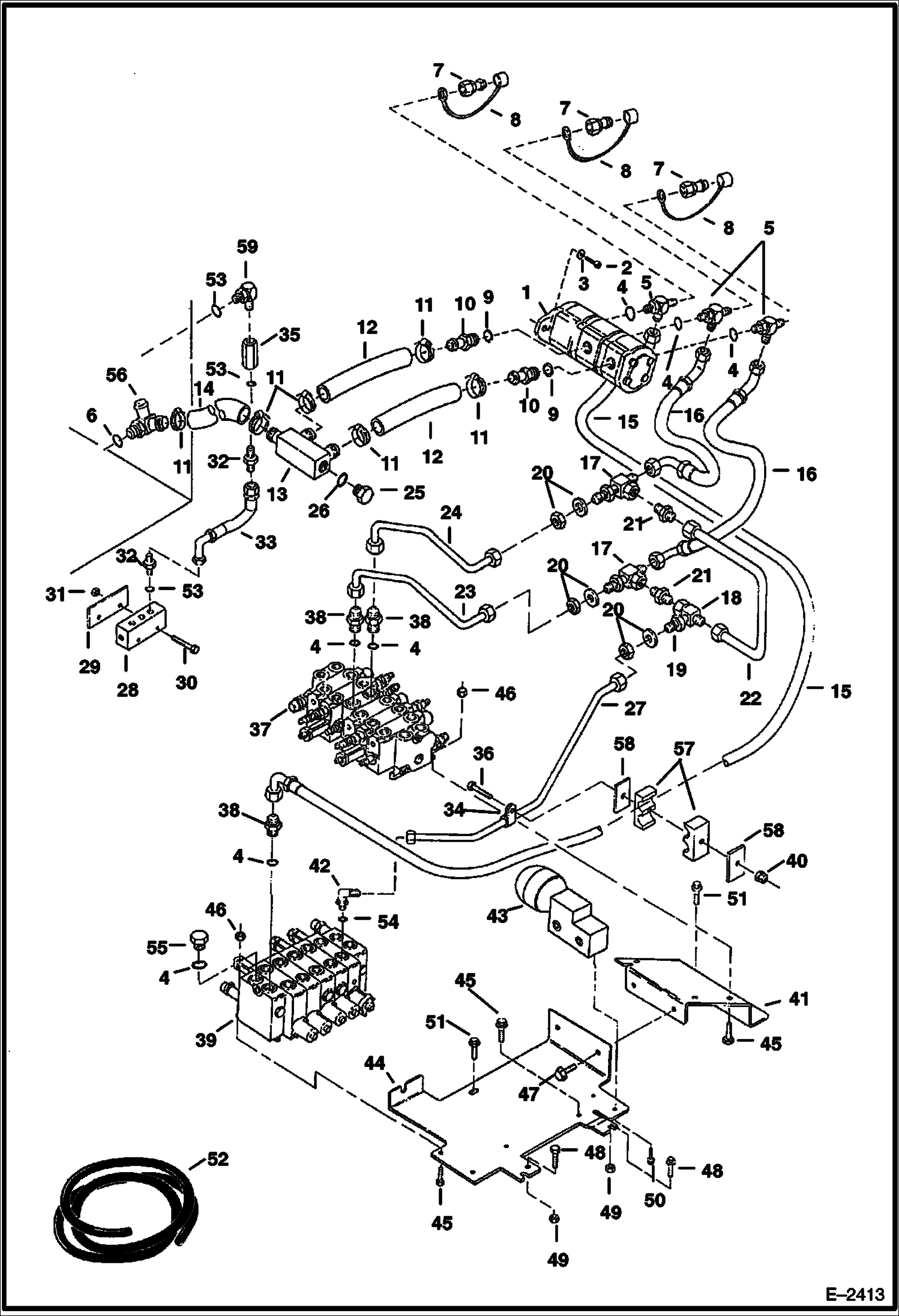

Запчасти Bobcat 331 HYDRAULIC CIRCUITRY (Tank To Pump To Valve) (S/N 512913001 - 512915199) HYDRAULIC SYSTEM

1

6668699

PUMP, GEAR TRIPLE See Illustration TRIPLE GEAR PUMP/ B25308

2

3GM1025

BOLT

3

15EM100

WASHER

4

79K10

O RING 10 flat boss face

4

99K10

O'RING tapered boss face - Was 98K000010B - A

5

TEE NLA - W/Ref. 4 - flat boss face

5

TEE NLA - W/Ref. 4 - tapered boss face - Was 6805165 - A

5

97K8

O-RING 37 degree Flared end - Was 96K000008B - D

5

21KB0810

FITTING, HYD TEE W/Ref. 4

6

79K20

O RING 10

7

6646635

COUPLER Diagnostic

8

6630367

CAP

9

79K16

O RING 10

10

6587972

FITTING W/Ref. 9

11

5HM44

CLAMP

12

HOSE NLA - Order Ref. 52 - 8'' (204 mm) long

13

6537505

MANIFOLD Supply

14

HOSE NLA - Order Ref. 52 - 37'' (940 mm) long

15

6628586

HOSE

16

6628587

HOSE

17

6628385

ADAPTER Bulkhead

18

6628386

ADAPTER Bulkhead

19

86F6

NUT

20

6800453

BUSHING

21

6646578

CHECK VALVE

22

6628461

TUBE

23

6628468

TUBE

24

6628467

TUBE

25

24K8

PLUG W/Ref. 26

26

79K12

O RING 10

27

6628469

TUBE

28

6675142

BLOCK Was 6667830 - A

29

6628721

PLATE

30

1CM875

BOLT

31

4DM8

NUT

32

15K5

FITTING W/Ref. 53

33

6628813

HOSE

34

30H36

CLIP

35

6667552

FILTER In-line

36

1CM855

BOLT

37

6668197

VALVE See Illustration CONTROL VALVE/ B25309 - Control

37

6669386

VALVE See Illustration CONTROL VALVE/ B25309 - Control

38

731794

CONNECTR W/Ref. 4

39

6670319

VALVE See Illustration CONTROL VALVE/ D2339 - Control

40

51DM8

NUT

41

6628423

PLATE

42

17K6

ELBOW W/Ref. 54

43

VALVE See Illustration ACCUMULATOR VALVE/ C3418 - NLA - Accumulator - Order 6675141 - Was 6667819 - A

43

6675141

VALVE See Illustration ACCUMULATOR VALVE/ C3418 - Accumulator - Order 6675141

44

6628388

PLATE

45

1CM1030

BOLT

46

1DM10

NUT

47

26GM10020

BOLT

48

29CM1025

BOLT

49

43DM10

NUT

50

29CM816

SCREW

51

29CM1020

BOLT

52

6673825

HOSE bulk - sold per foot - Was 1310909B - A

53

79K6

O RING 10

54

79K8

O RING 10

55

24K7

PLUG W/Ref. 4

56

6596791

TEE W/Ref. 6

57

6577697

CLAMP Was 6701893 - B

58

6652521

PLATE

59

6558510

ELBOW
