Запчасти Bobcat 331 HYDRAULIC CIRCUITRY (L.H. Joystick Controls - Swing Motor & Boom) (Standard Control Pattern) (S/N 512913001 - 512915199) HYDRAULIC SYSTEM

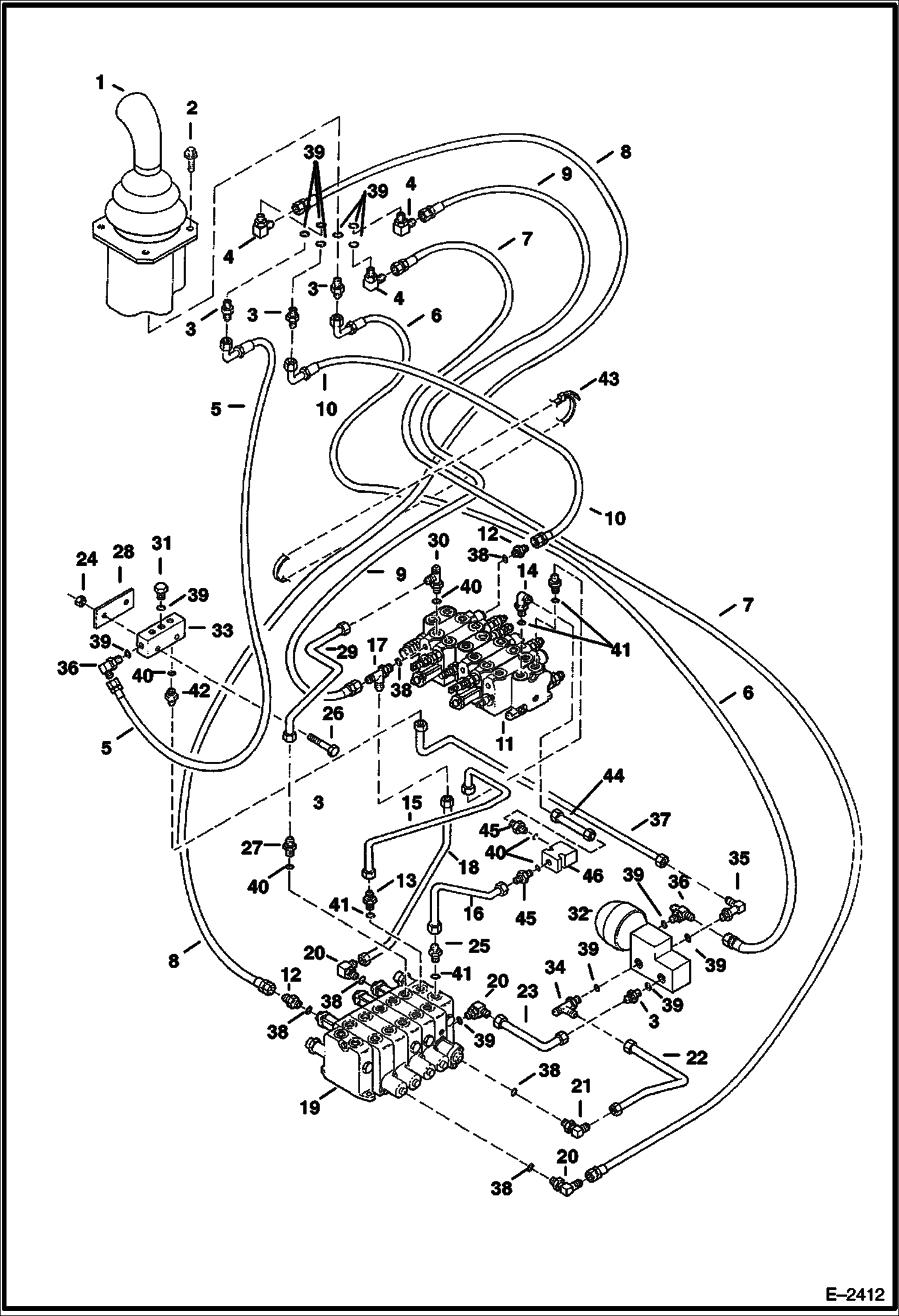

Схема запчастей Bobcat 331 - HYDRAULIC CIRCUITRY (L.H. Joystick Controls - Swing Motor & Boom) (Standard Control Pattern) (S/N 512913001 - 512915199) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

6667721

JOYSTICK See Illustration L.H. JOYSTICK CONTROLS/ B14600 - LH

2

26GM8020

SCREW

3

1308081

ADAPTER W/Ref. 39

4

1316049

ELBOW W/Ref. 39

5

6628664

HOSE

6

6628666

HOSE

7

6597583

HOSE

8

6628668

HOSE

9

6628667

HOSE

10

6628665

HOSE

11

6668197

VALVE See Illustration CONTROL VALVE/ B25309 - Control

11

6670320

VALVE See Illustration CONTROL VALVE/ B25309 - Control

12

15K3

CONNECTOR W/Ref. 38

13

6800567

ADAPTER W/Ref. 41

14

17K7

ELBOW W/Ref. 41

15

6628471

TUBE

16

6801029

TUBE

17

21K3

CONNECTOR W/Ref. 38 - flat boss face

17

21KB0404

FITTING, HYD TEE W/Ref. 38 - tapered boss face - Was 21KN00003B - A

17

97K4

O'RING flared end

18

6628672

TUBE

19

6670319

VALVE See Illustration CONTROL VALVE/ D2339 - Control

20

17K3

ELBOW W/Ref. 38

21

17KB0604

ELBOW UNION W/Ref. 38 - Was 6579647 - A

22

6628671

TUBE

23

6800090

TUBE

24

4DM8

NUT

25

15K7

FITTING W/Ref. 41

26

1CM875

BOLT

27

6656391

CHECK VALVE W/Ref. 40

28

6628721

PLATE

29

6628464

TUBE

30

21K6

FITTING W/Ref. 40

31

24K5

PLUG W/Ref. 39

32

VALVE See Illustration ACCUMULATOR VALVE/ C3418 - NLA - Accumulator - Was 6667819 - A

32

6675141

VALVE See Illustration ACCUMULATOR VALVE/ C3418 - Accumulator - Order 6675141

33

6675142

BLOCK Was 6667830 - A

34

21K5

TEE W/Ref. 39

35

6558510

ELBOW W/Ref. 39

36

17K5

ELBOW W/Ref. 39

37

6628562

TUBE

38

79K4

O RING 10 flat boss face

38

99K4

O'RING tapered boss face

39

79K6

O RING 10

40

79K8

O RING 10

41

79K10

O RING 10

42

743108

FITTING W/Ref. 40

43

6624289

STRAP, TIE

44

6628551

TUBE

45

731793

CONNECTR W/Ref. 40

46

6676658

VALVE assy - Was 6669593 - A

46

6672514

VALVE check

46

6672515

KIT, SEAL
