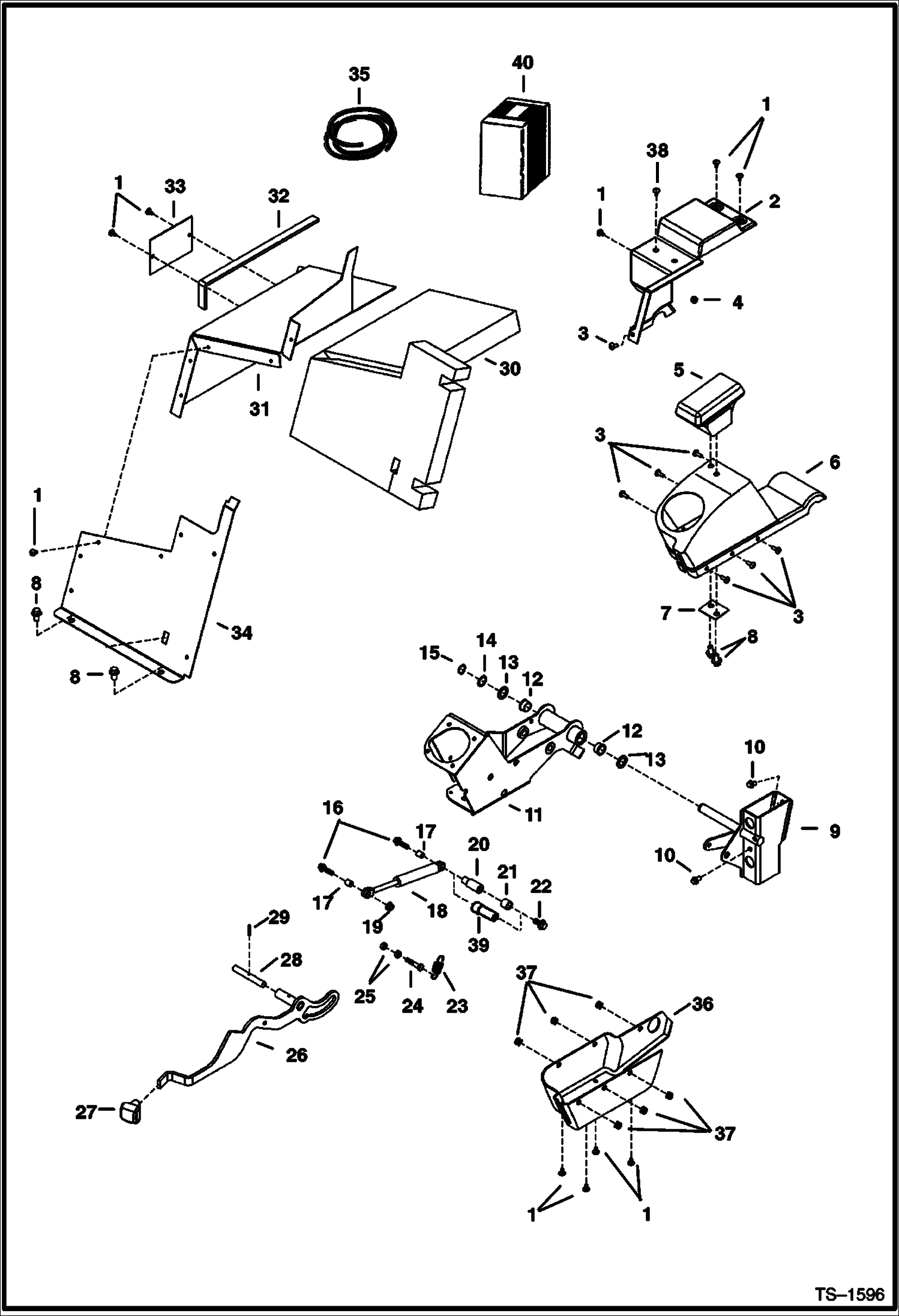

Запчасти Bobcat 331 L.H. CONTROL CONSOLE (S/N 512915200 & Above, 517711001 & Above, and 516711001 & Above) CONTROLS

1

6589675

SCREW

2

6803196

COVER W/Decals

3

6803202

SCREW

4

43DM6

NUT

5

6801672

ARM REST

6

6803194

COVER W/Decals

7

6802644

PLATE

8

26GM10020

BOLT

9

6802639

MOUNT L.H. Console

10

26GM8016

SCREW

11

CONSOLE NLA - L.H. - Uses Gas Spring - Order 6809265 - Was 6802640 - A

11

6809265

CONSOLE L.H. - Also Order 6808369, 6808840, 6809325, 15EM-200, 13JM-20025, 6808167, 29CM-835, 6808749, 6EM00100B & 6651530

12

6536801

BUSHING

13

6587481

WASHER

14

6536802

WASHER

15

6651530

SNAP RING

16

29CM830

CAPSCREW

17

6588293

BUSHING

18

6670863

SPRING gas spring

19

43DM8

NUT

20

SPACER NLA - Order Ref. 39 - Was 6803225 - A

21

BEARING NLA - Needle - Order Ref. 39 - Was 6671965 - A

22

29CM1020

BOLT

23

6563128

SPRING

24

1CM840

BOLT

25

4DM8

NUT

26

6808303

LEVER Console Release - Was 6802641 - A

27

6803199

HANDLE

28

6597977

PIN

29

14J1816

PIN ROLL

30

6803377

INSULATION

31

6803353

PANEL

32

FOAM NLA - Order Ref. 35 - 17'' (432 mm) long

33

6802666

COVER

34

6802649

COVER W/O Heater

35

7001454

SEAL, BULK/FT bulk - sold per foot - Was 6803188 - A

36

6801127

COVER Lower Console

37

6671569

NUT Clip on

38

6670761

CAP Use W/Canopy only

39

6809906

BEARING

40

6811226

KIT Use to convert gas spring console 6802640 to mechanical spring
