Запчасти Bobcat 331 CONTROL CONSOLE, FLOORBOARDS AND SEAT (S/N 512913001 - 512915199) CONTROLS

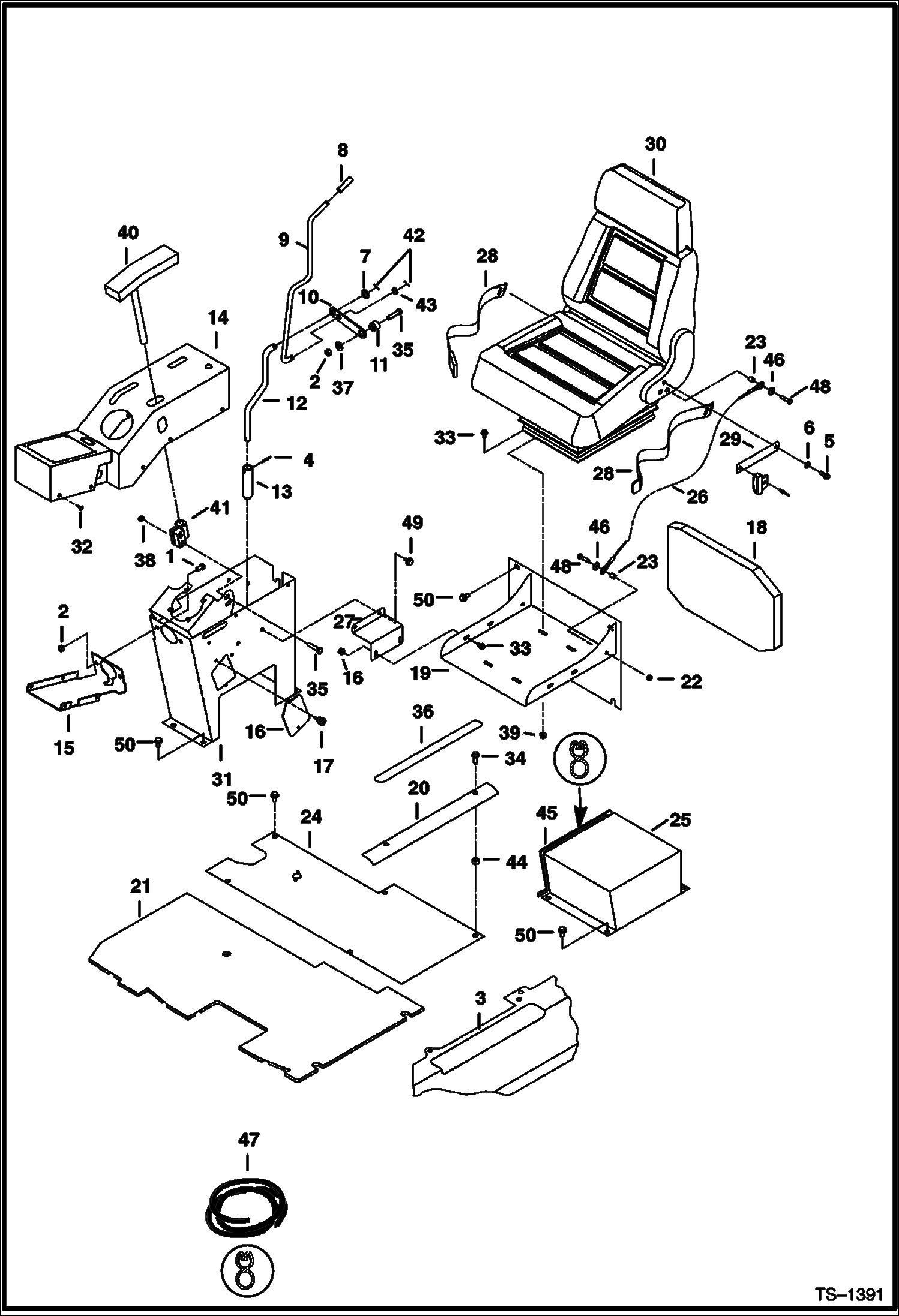

Схема запчастей Bobcat 331 - CONTROL CONSOLE, FLOORBOARDS AND SEAT (S/N 512913001 - 512915199) CONTROLS

Артикул

Название

Примечание

Количество

1

29CM1020

BOLT

2

1DM10

NUT

3

6588953

TREAD Attaches to upperstructure

4

14J1820

PIN

5

29CM825

BOLT

6

6EM80

WASHER, SPRING

7

15EM160

WASHERS

8

KNOB NLA - Was 6658108 - A

9

6588777

ROD

10

6586716

PLATE

11

6539769

BUSHING

12

6588555

ROD

13

6586717

PIN Swing lock

14

6596556

COVER

15

6588551

BRACKET Gauge panel

16

6537544

COVER

17

6631000

THUMBSCREW

18

6596354

INSULATION

19

6628650

MOUNT Seat

20

6588552

ANGLE

21

FLOORMAT See BTIE-048 - NLA - Cab - Order 6800529 & Modify to fit

21

6800529

FLOORMAT Cab

21

FLOORMAT See BTIE-048 - NLA - Canopy - Order 6800528 & Modify to fit

21

6800528

FLOORMAT Canopy

22

49DM8

NUT

23

6608719

SPACER

24

PLATE See BTIE-048 - NLA - Floorboard

24

6800527

FLOOR PLATE Floorboard

25

6588691

COVER Swing motor

26

6589689

TETHERS

27

6588790

BRACKET Support

28

6564774

SEAT BELT

29

GUIDE NLA - Assy. - Seat belt - Order 6539095, (2) 6630207 & (2) 6565355 - Was 6539096 - A

29

STRAP NSS - Belt guide - Order 6539096

29

GUIDE NLA - yellow plastic - Order 6703703 - Was 6565355 - A

29

1662965

RIVET

30

6660414

SEAT See Illustration SEAT/ D2132

31

6597286

CONSOLE R.H.

32

6589675

SCREW Self tapping

33

29CM816

SCREW

34

26GM10030

BOLT Was 26CM-10030 - D

35

1CM1045

BOLT

36

6593245

TREAD

37

27E6

WASHER 5

38

49DM10

NUT

39

45DM8

NUT 10

40

6537510

ARM REST

41

6537514

MOUNT Arm Rest

42

13JM20025

COTTERPIN

43

15EM120

WASHER

44

6503451

SPACER

45

SEAL NLA - 24'' long (600mm) - Order Ref 47

46

25E16

WSHR

47

6513152

SEAL bulk - sold per foot

48

1CM835

BOLT

49

26GM8016

SCREW Self Tapping

50

26GM10020

BOLT Self Tapping

Выбрано товаров: 57
