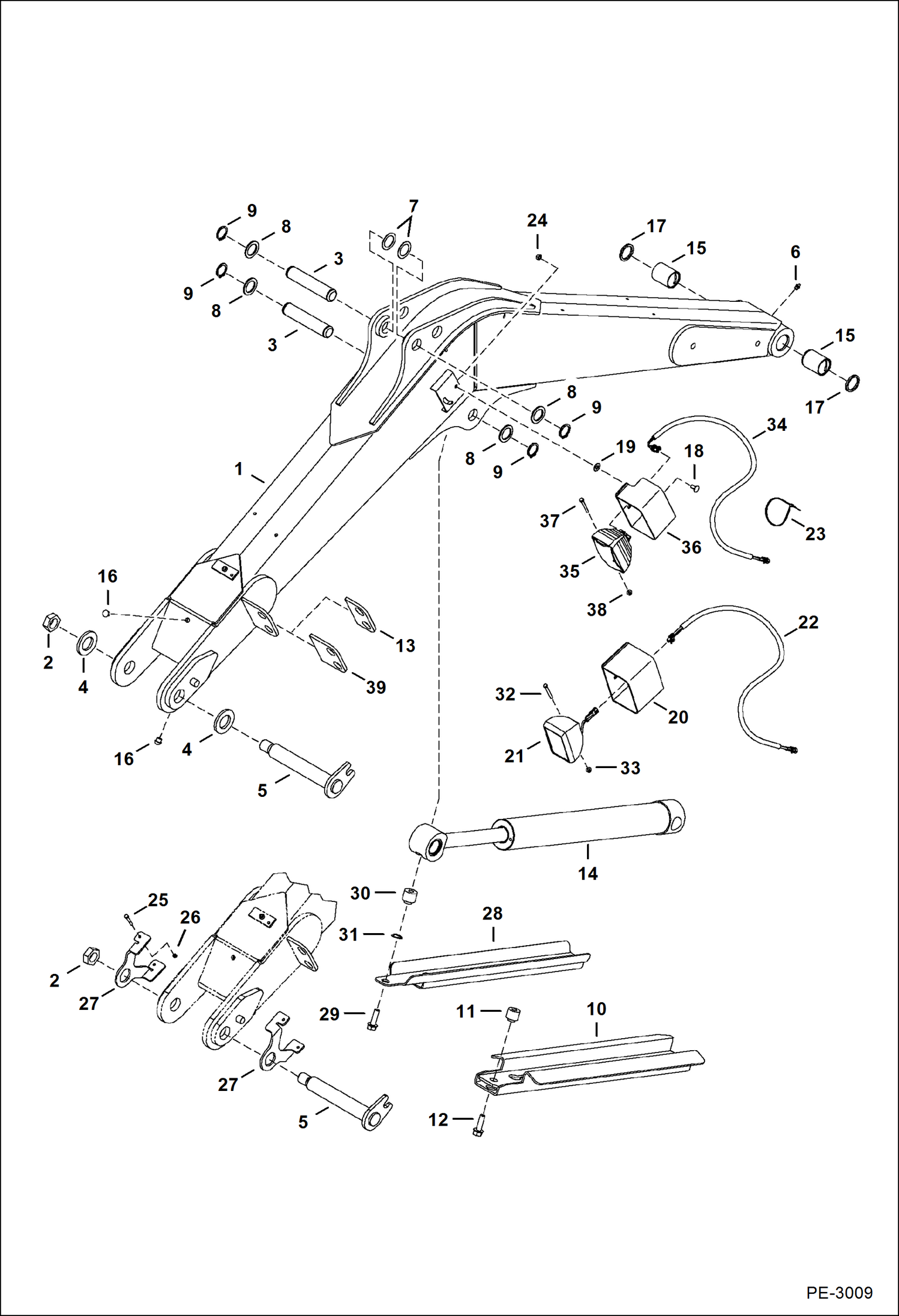

Запчасти Bobcat 331 BOOM WORK EQUIPMENT

1

BOOM See Illustration HYDRAULIC CIRCUITRY/ B18104 - NLA - W/Ref. 13 - Order 7139952 boom, (4) 6535312 washers (for boom base pivot), Ref. 15, 17, 7139955 tubeline, & 7139956 tubeline - If equipped wit

1

7139952

BOOM, DIPPER ARM W/Ref. 39 - Also Order Ref. 15, 17, & (4) 6535312 washers (for boom base pivot) - If equipped with extendable arm, Also Order (2) of Ref. 25-27 (to replace Ref. 4)

2

39DM30

NUT

3

6596216

PIN

4

1EM380

WASHER Use on machines with bucket hoses routed through the end the arm

5

6596238

PIN, PIVOT Mounting

6

10H25

FITTING, GREASE 5

7

6811636

SPACER

8

6534111

WASHER

9

6534154

RING

10

SHIELD NLA - Order 7130856 shield - also order Ref. 29-31 - Was 6596493 - A

11

6596506

SPACER, SHIELD for Use W/Ref.10 (NLA/6596493 shield)

12

59CM1245

BOLT for Use W/Ref.10 (NLA/6596493 shield)

13

6628560

PLATE welded onto boom - 2.95'' (74.9 mm) x 4.72'' (119.9 mm)

14

CYLINDER See Illustration BOOM CYLINDER/ C3501 - Boom

15

6815277

BUSHING Was 6803207 - B

16

6597572

BUMPER

17

6660075

SEAL dust

18

28CM820

BOLT Was 21CM820 - B

19

6675859

RETAINER

20

HOUSING NLA - Order Ref. 35 - 38 - Was 6808258 - A

21

6675938

LIGHT W/pigtail - Use W/Ref. 20

21

6667934

BULB Was 6677934 - D

21

6676724

BEZEL Was 6676203 - A

21

6676204

NUT

22

HARNESS NLA - work light - 153'' (3886mm) long - Order Ref. 34 - Was 6808415 - A

23

6610510

TIE Was 1715312B - A

24

51DM8

NUT Was 4DM8 - B

25

1CM650

SCREW

26

53DM6

NUT

27

7126461

BRACKET Use in place of Ref. 4 on machines with bucket hoses routed outside the arm or machines with extendable arm

28

7130856

SHIELD, W/A

29

7131273

SCREW for Use W/Ref. 28

30

7131109

SPACER for Use W/Ref. 28

31

6536803

WASHER spring washer - for Use W/Ref 28

32

17C532

BOLT 5 for light W/pigtail

33

61D5

NUT for light W/pigtail

34

7135896

HARNESS work light - 156'' (3962 mm) long

35

6691410

LIGHT W/O pigtail - Use W/Ref. 36

35

6692400

BULB

36

7133077

HOUSING, W/A W/notch in side

37

1CM655

SCREW for light W/O pigtail

38

51DM6

NUT for light W/O pigtail

39

6597688

PLATE welded onto boom - 3.86'' (98 mm) x 4.95'' (125.8 mm)
