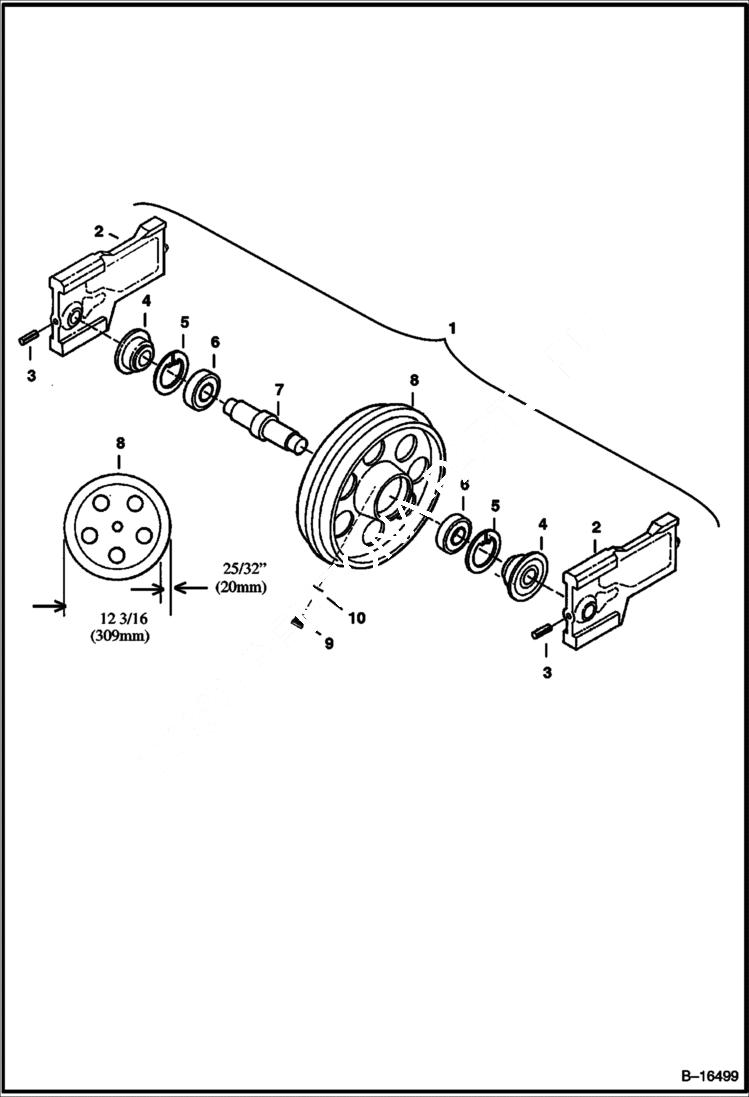

Запчасти Bobcat 331 FRONT IDLER (W/ Holes In Idler) (S/N 512920149 & Above, 517711393 & Above, 516712420 & Above) UNDERCARRIAGE

1

IDLER ASSY See Illustration FRONT IDLER/ NA6085 NLA - Ref. 2-8 - Rubber Track W/12 -3/16'' (309 mm) diameter - Was 6815117 - A

1

IDLER See Illustration FRONT IDLER/ NA6085 NLA - Ref. 2-8 - Steel Track W/11- 5/8 '' (295 mm) diameter - Was 6815121 - A

2

6596481

BLOCK

3

2JM1060

PIN

4

6679881

SEAL, OIL Was 6725082 - A

5

7JM72

SNAP RING

6

6684339

BEARING Was 6655856 - A

7

6588997

SHAFT

8

IDLER NLA - Order 6815118 & (6679881 seal qty. 2) - Rubber Track - W/12 -3/16'' (309 mm) diameter - Order 6815117 - Was 6807910 - A

8

IDLER NLA - Steel Track - W11- 3/4'' (295 mm) diameter - Order 6815121 - Was 6588998 - A

8

6815118

IDLER Was 6814881 - A

9

90K3

PLUG Was 90KV3 - D

10

95K4

O-RING
