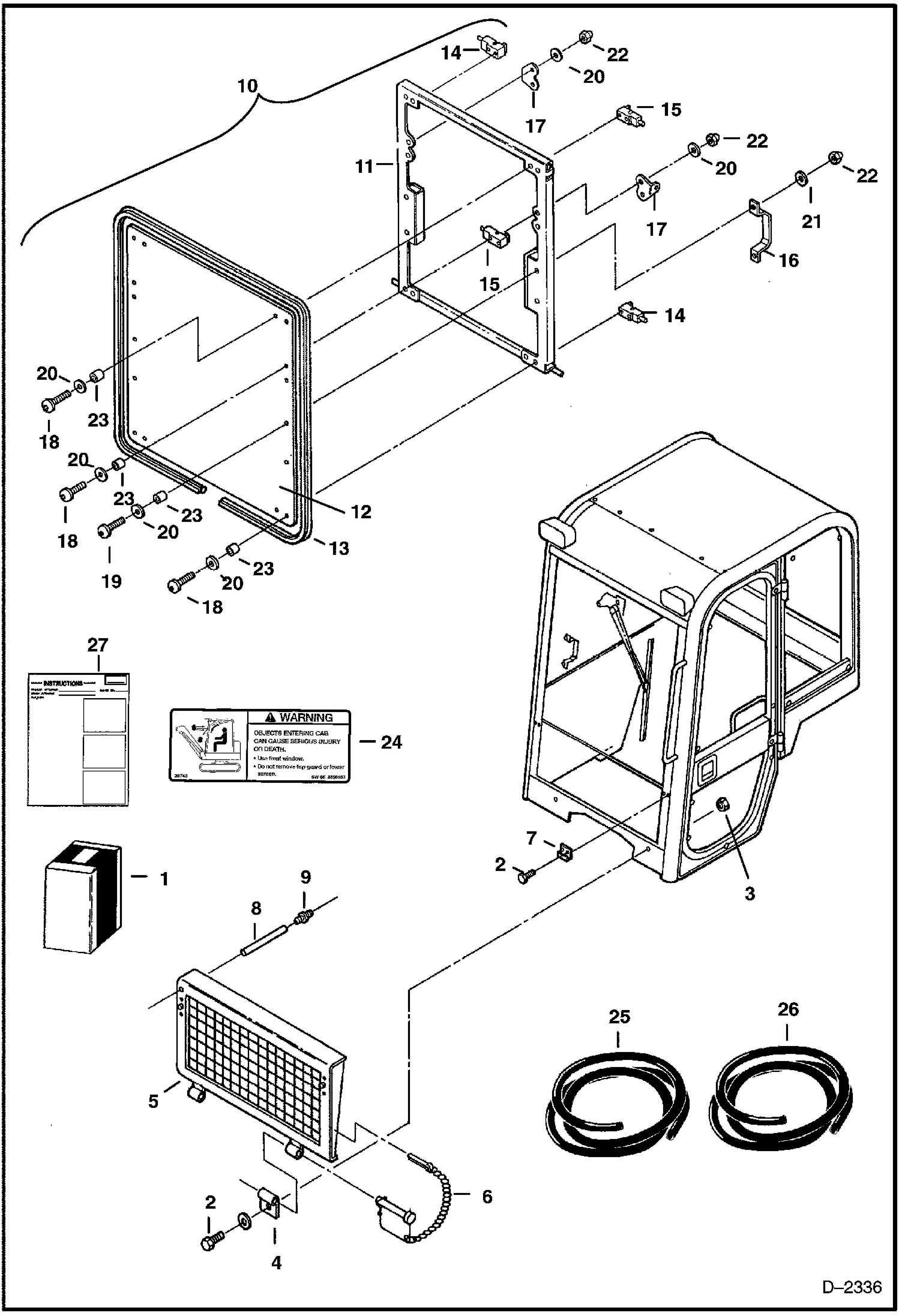

Запчасти Bobcat 331 SPECIAL APPLICATION KIT (Cab) ACCESSORIES & OPTIONS

1

6666533

KIT Special application - W/Refs. 2-24 & 27 - Also Order FOPS Kit 6595975 to meet ISO 10262

2

6667855

BOLT 5/8'' long

3

6648390

NUT

4

6808924

HINGE Was 6667854 - A

5

6667857

SCREEN

6

6808926

PIN Was 6667852 - A

7

6667858

PLATE Striker

8

HOSE NLA - Window washer extension - 24'' (610mm) long - Order Ref. 25

9

6667859

ADAPTER Washer hose splice

10

6667856

GUARD Top - W/Refs. 11-

11

6809886

FRAME Was 6667863 - A

12

6667864

WINDOW Lexan

13

SEAL NLA - 135'' (3430mm) long - order Ref. 26

14

6667193

LATCH

15

6667192

LATCH

16

6664109

HANDLE Grab

17

6664151

HINGE

18

25G416

BOLT 1'' (25.4mm) long - Was 6664067 - A

19

6664066

BOLT 2.00'' long

20

6664090

WASHER

21

6664065

WASHER

22

7031515

NUT Acorn 1/4'' - Was 6664056 - A

23

6664085

BUSHING

24

6596163

DECAL

25

6664052

HOSE Bulk - Sold Per Foot

26

6664088

SEAL Bulk - Sold Per Foot

27

6724454

INSTRUCTIONS
