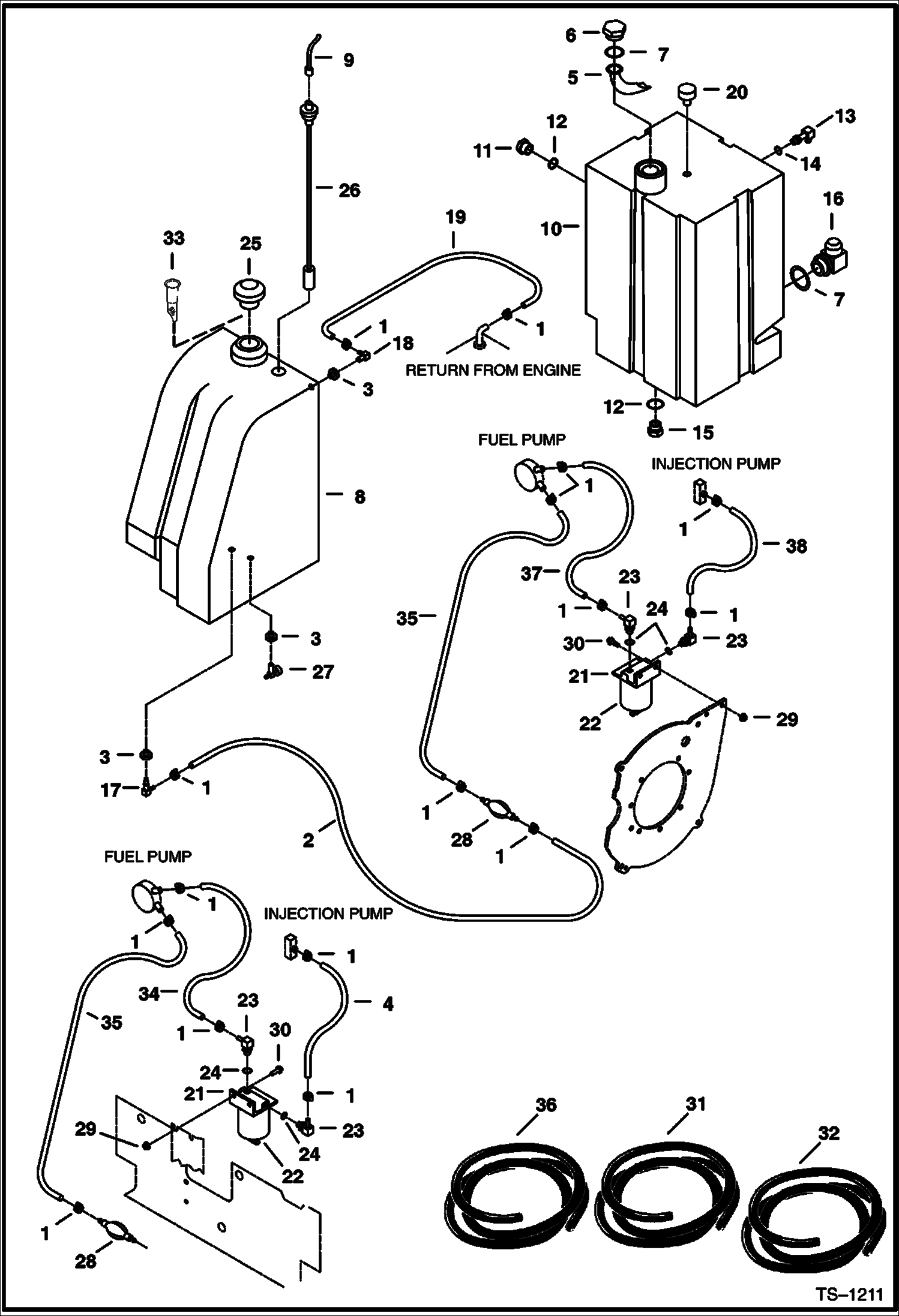

Запчасти Bobcat 331 FUEL SYSTEM AND TANKS POWER UNIT

1

42HS04

CLAMP, HOSE Was 6515575 - A

2

HOSE NLA - 60''(1530mm) long - Order Ref. 31

3

6553411

BUSHING 0.38'' ID

4

HOSE NLA - 15''(380mm) long - Order Ref. 31

5

7134222

SCREEN fill - Was 6587168 - A

6

6587467

PLUG W/Ref. 7

7

79K20

O RING 10

8

6587548

TANK Fuel

9

6588351

HARNESS Fuel sender

10

6597263

TANK Hydraulic - W/Ref. 11-15 - Was 6588484 - A

11

6665915

GAUGE Was 6656338 - A

12

79K12

O RING 10

13

6558510

ELBOW W/Ref. 14

14

79K6

O RING 10

15

24K8

PLUG W/Ref. 12

16

17K11

FITTING W/Ref. 7

16

6596791

TEE W/Ref. 7

17

6553412

ELBOW Was 6598908 - D

18

6630041

ELBOW

19

HOSE NLA - 110''(2800MM) LONG - Order Ref. 32

20

7025626

VENT, BREATHER - Was 6684923 - A

21

6667353

FILTER ASSY Assy.- W/Ref. 22 - Was 6657020 - A

21

6658180

PLUG, BLEED

22

6667352

FILTER, FUEL W/SEPARATOR 12 Was 6647773 - A

23

ELBOW NLA - W/Ref. 24 - flat boss face - Was 6657083 - A

23

6715183

ELBOW W/Ref. 24 - check boss face to determine correct replacement o-ring

24

79K5

O RING 10 flat boss face

24

99K5

O-RING tapered boss face

25

6665423

CAP Fuel - Was 6661114 - B

26

7179840

SENSOR FUEL W/ O-ring - Was 6680440 - A

26

79K14

O RING 10 Was 25K040102B - B

27

6663951

VALVE Shut off

28

6667170

PUMP 193 mm (7.6'') long - Was 6657734 - A

29

43DM8

NUT Was 42DM00008B - A

30

29CM830

CAPSCREW Was 29CM00825B - B

31

6577822

HOSE bulk - sold per foot

32

6578169

HOSE bulk - sold per foot - 0.19'' ID

33

6595036

SCREEN Fuel -not supplied with excavator available thru Chicago Parts only

34

HOSE NLA - 7'' (180mm) long - Order Ref. 31

35

HOSE NLA - 9'' (230mm) long - Order Ref. 36

36

6577821

HOSE bulk - sold per foot

37

HOSE NLA - 11'' (280mm) long - Order Ref. 31

38

HOSE NLA - 13'' (331mm) long - Order Ref. 31
