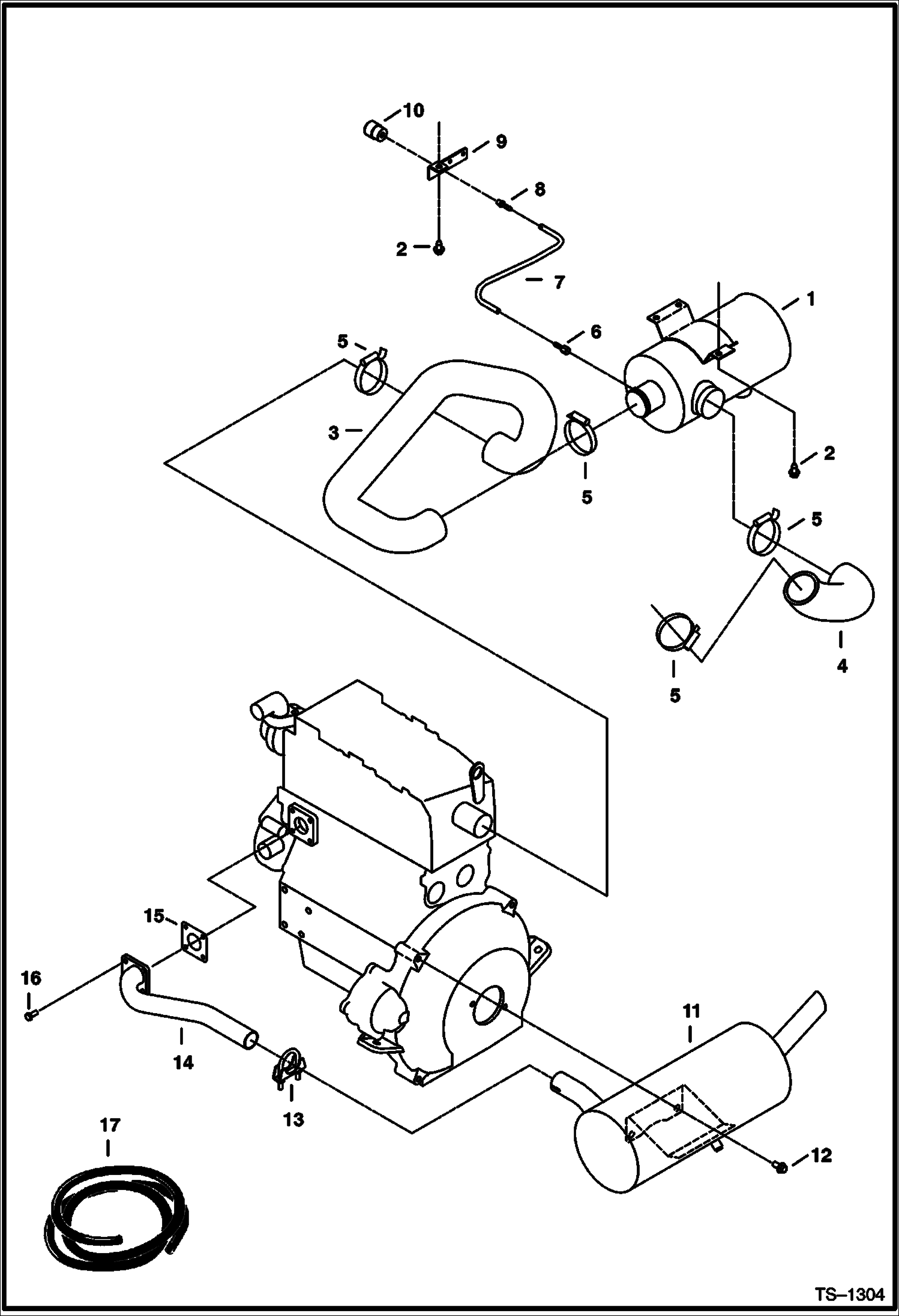

Запчасти Bobcat 331 AIR CLEANER AND MUFFLER MOUNTING (S/N 512912001-512912999) POWER UNIT

1

6666647

AIR CLEANER See Illustration AIR CLEANER/ B14150A See Illustration AIR CLEANER/ B14150

2

26GM10020

BOLT

3

6596878

HOSE

4

6595839

HOSE

5

42H40

HOSECLAM5

6

6563452

FITTING

7

HOSE NLA - 11'' (280mm) long - Order Ref. 17

8

6505813

CONNECTOR

9

6596829

BRACKET

10

6515007

GAUGE Air filter condition

11

6667290

MUFFLER Factory Installed

11

6667417

MUFFLER, PURIFIER Field Installed Only - Was 6667416 - D

12

29CM1020

BOLT

13

710706

CLAMP Assy.

14

6589114

TUBE Exhaust

15

6575580

GASKET muffler

16

6701123

SCREW

17

6557720

HOSE Bulk - Sold Per Foot
