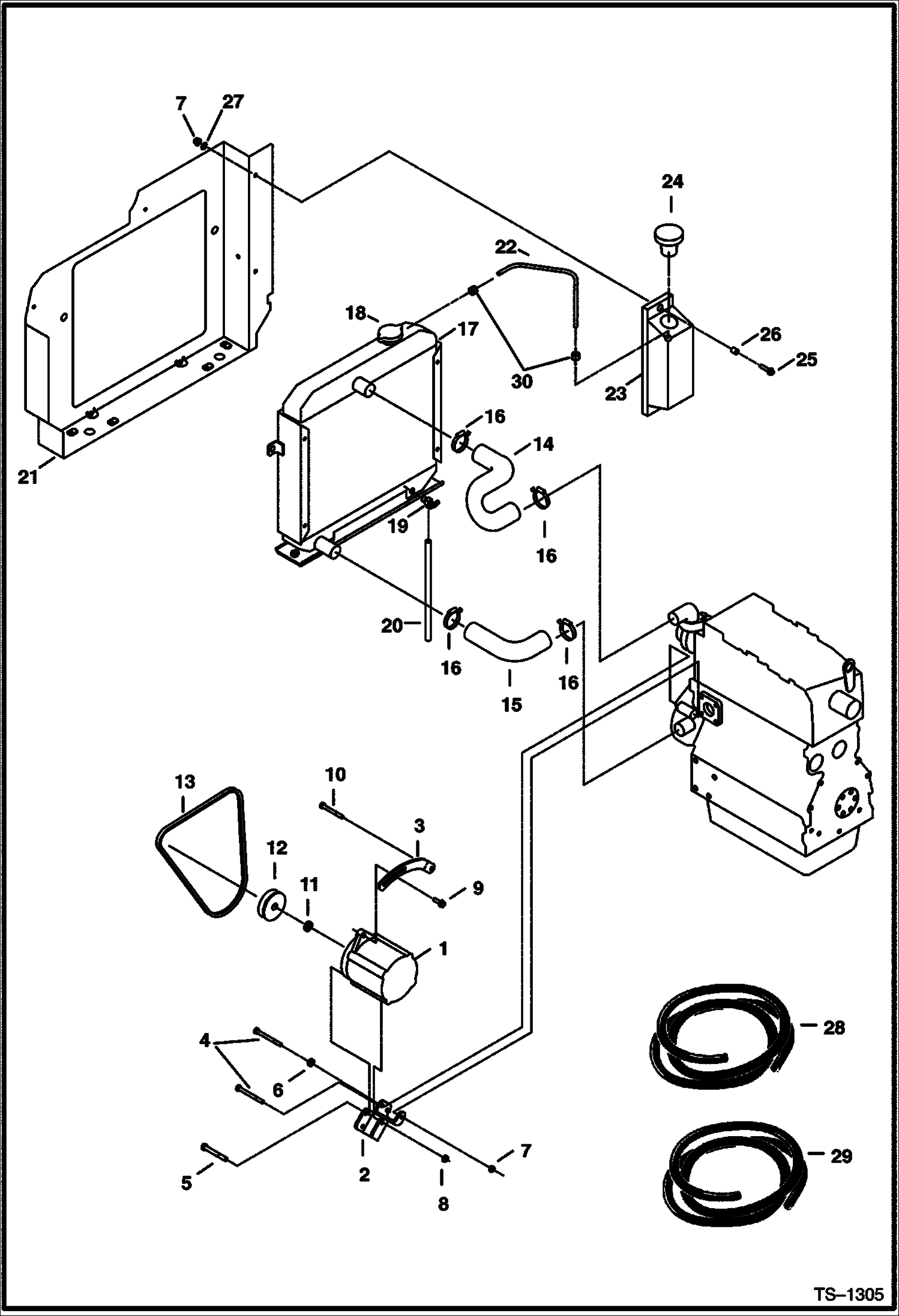

Запчасти Bobcat 331 ALTERNATOR MOUNTING & RADIATOR HOSES (S/N 512912001 & Above) POWER UNIT

1

ALTERNATOR See Illustration ALTERNATOR/ B25158 See Illustration ALTERNATOR/ D1760 - Was 6661611 - B

2

6803397

BRACKET Was 6596746 - A

3

6596745

RETAINER

4

1CM885

BOLT

5

1C648

BOLT

6

6568877

WASHER

7

4DM8

NUT Was 1DM00008B - B

8

95D6

NUT Was 85D000006B - B

9

35C516

BOLT 10

10

1CM870

BOLT

11

6571554

SPACER

12

6571536

PULLEY Alternator - not supplied with alternator

13

6657279

BELT

14

6664452

HOSE Upper

15

6664451

HOSE Lower

16

5HM44

CLAMP Was 42H000024B - A

17

6666682

RADIATOR

18

3974310

CAP Radiator

19

6513679

VALVE Drain

20

HOSE NLA - 13'' (330) long - Order Ref. 29

21

MOUNT See Illustration RADIATOR & MOUNTING/ TS1208 - Radiator

22

HOSE NLA - 18'' (456mm) long - Order Ref. 28

22

VENT NLA - Order Ref. 29 (6577822 Hose) - 18'' (456 mm) long

23

6593012

TANK

24

6702797

CAP

25

29CM835

BOLT

26

6593013

SPACER

27

7EM80

WASHER Was 45DM00008B - A

28

6577821

HOSE bulk - sold per foot - .25'' ID

29

6577822

HOSE bulk - sold per foot - .3125'' ID

30

5HM14

CLAMP
