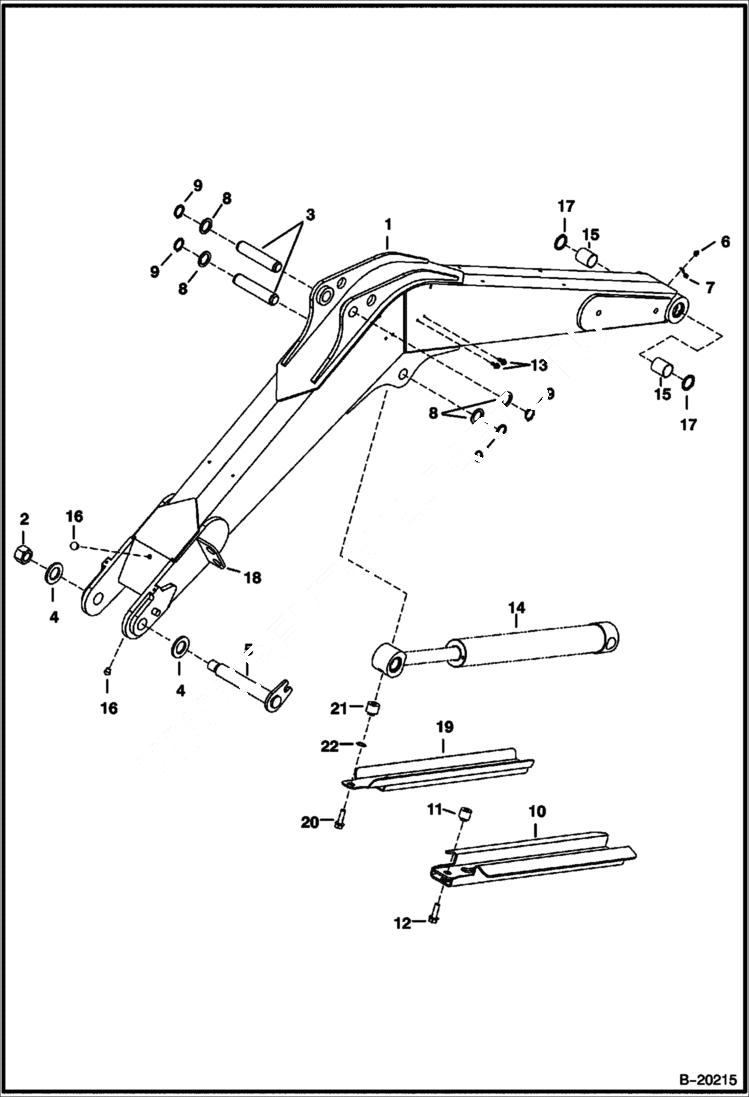

Запчасти Bobcat 331 BOOM (S/N 512912000 & Above) WORK EQUIPMENT

1

BOOM NLA - W/Ref. 15 - Order 6803804 and Ref. 17 - Was 6628561 - A

1

6803804

BOOM W/Ref. 15 - Also Order Ref. 17

2

53DM30

NUT Was 39DM00030B - B

3

6596216

PIN

4

1EM380

WASHER

5

6596238

PIN, PIVOT Mounting

6

10H25

FITTING, GREASE 5

7

6652943

COVER grease fitting

8

6534111

WASHER

9

6534154

RING

10

SHIELD NLA - Order 7130856 shield - also order Ref. 20-22 - Was 6596493 - A

11

6596506

SPACER, SHIELD for Use W/Ref.10 (NLA/6596493 shield)

12

59CM1245

BOLT for Use W/Ref.10 (NLA/6596493 shield) - Was 29CM01245B - B

13

29CM820

SCREW

14

CYLINDER See Illustration BOOM CYLINDER/ C3397 - Boom

15

6539110

BUSHING, PRESS FIT Incl W/Boom 6628561 - 1.90'' (48mm) Long

15

6815277

BUSHING Incl. W/Boom 6803804 - 2.00'' (51mm) Long - Was 6803207 - A

16

6597572

BUMPER Was 6597345 - A

17

6660075

SEAL Use W/Boom 6803804 only

18

6628560

PLATE welded onto boom

19

7130856

SHIELD, W/A

20

7131273

SCREW for Use W/Ref. 19

21

7131109

SPACER for Use W/Ref. 19

22

6536803

WASHER spring washer - for Use W/Ref 19
