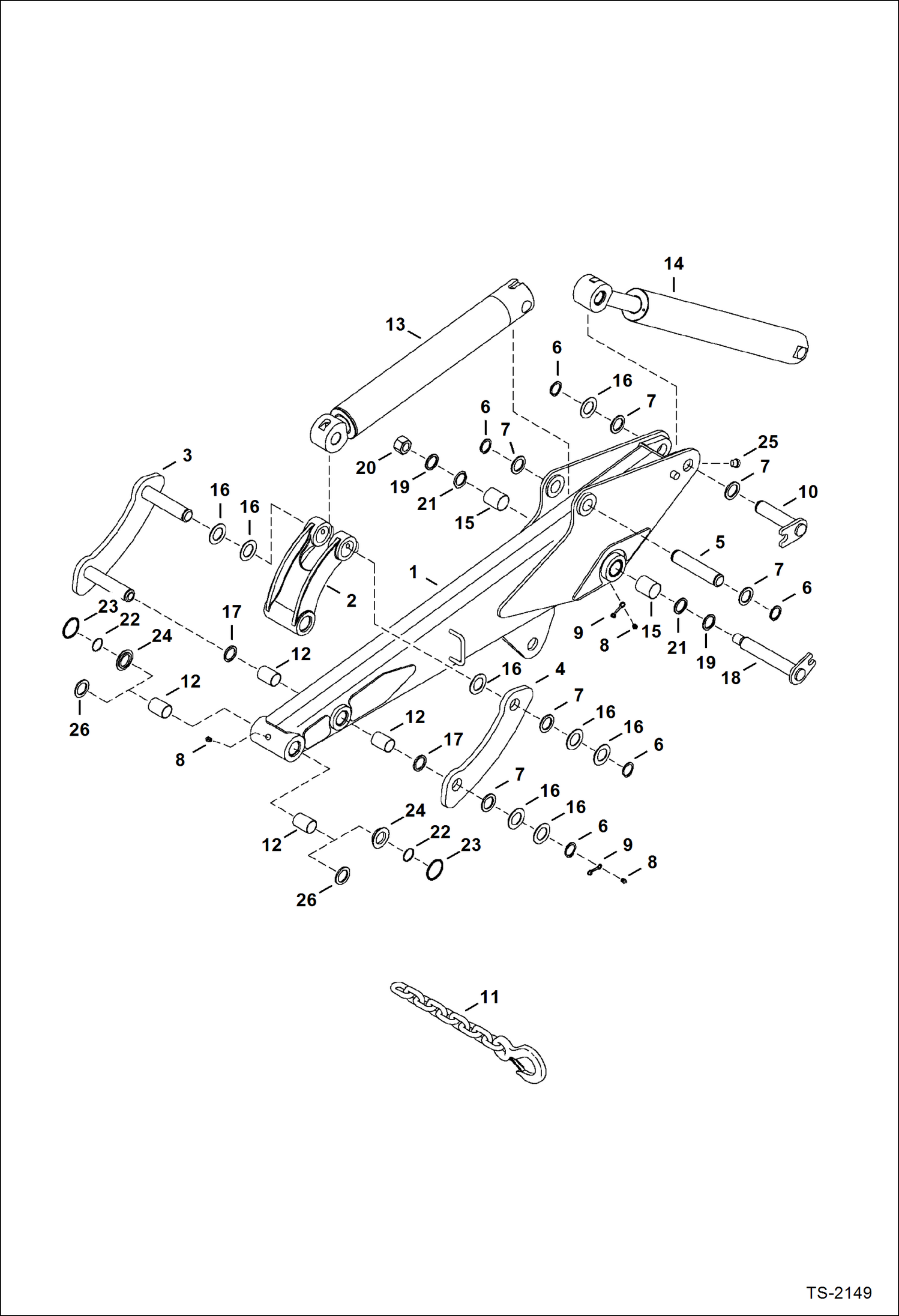

Запчасти Bobcat 331 ARM (S/N 512912000 & Above) WORK EQUIPMENT

1

6812290

ARM standard arm - Also Order (4) of Ref. 12, (2) of Ref. 15,17,21,22, & 24 - Also Order (2) of Ref. 23 & (2) 6810525 bushings if 6812421 latching or 6812423 bolt on X-Change is used - Was 6803893 - A

2

6805374

LINK

3

7173235

LINK, GUIDE W/A Was 7127600 - A

4

7173234

LINK, GUIDE Was 7129624 - A

5

6596216

PIN

6

6534154

RING

7

6534111

WASHER

8

10H25

FITTING, GREASE 5

9

6652943

COVER grease fitting

10

6595222

PIN arm mounting

11

6665374

CHAIN

12

6539825

BUSHING, PRESS FIT 1.772'' (45 mm) x 1.762'' (44.75 mm)

12

6803213

BUSHING, PRESS FIT 1.578'' (40 mm) x 2'' (51 mm)

13

CYLINDER See Illustration BUCKET CYLINDER/ C3396 - Bucket

14

CYLINDER See Illustration ARM CYLINDER/ B20421 - Arm

15

6539110

BUSHING, PRESS FIT Use W/Arm 6595344 - 1.89'' (48 mm) x 1.97'' (50 mm)

15

6815277

BUSHING 2'' (51 mm) long - Was 6803207 - A

16

6535313

SHIM install as required

17

6652915

SEAL, OIL dust

18

6596238

PIN, PIVOT

19

1EM380

WASHER

20

53DM30

NUT

21

6660075

SEAL dust

22

25K40112

O RING 10 Use on 6812290 arm W/Ref. 23 & 24

23

6811260

O-RING Use on 6812290 & arm W/Ref. 22 & 24 if 6812421 latching or 6812423 bolt on X-Change is used

24

6810627

WASHER Use on 6812290 & arm W/Ref. 22 & 23

25

6597572

BUMPER

26

6652915

SEAL, OIL dust - used on arms prior to 6812290
