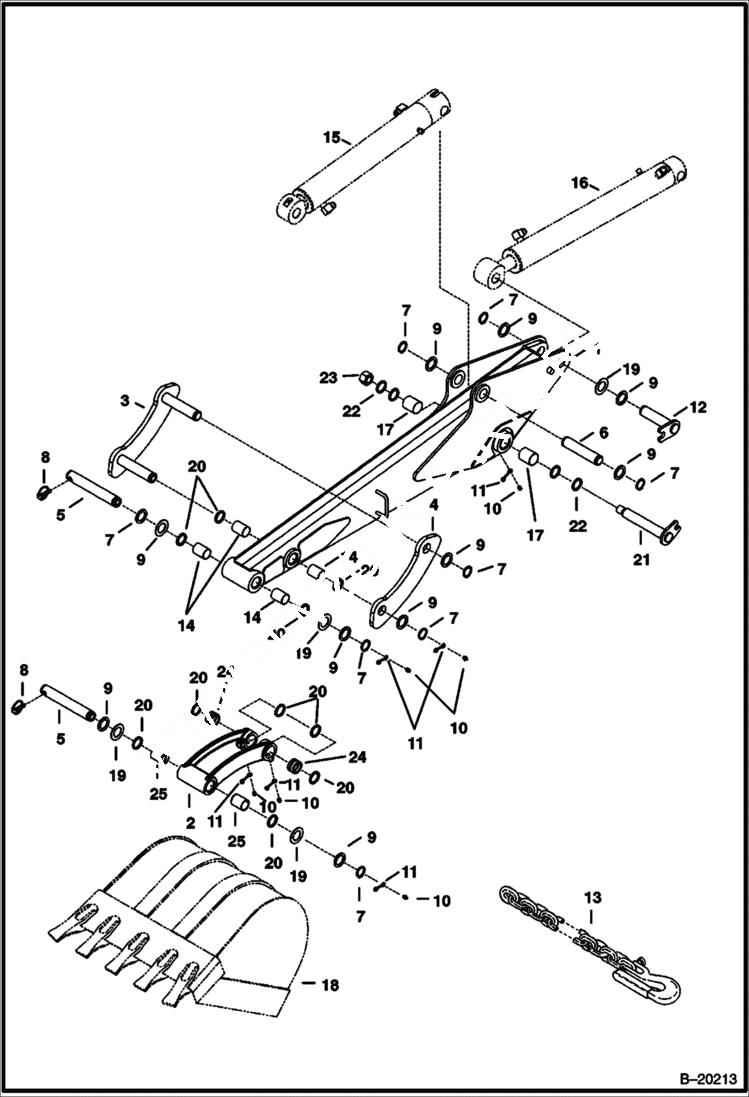

Запчасти Bobcat 331 ARM & BUCKET LINK (NAP Arm) (S/N 512912000 & Above) WORK EQUIPMENT

1

ARM NLA - W/Ref. 14 & 17 - ER 6803893 - WAS 6595344 - A

1

6803893

ARM W/Ref. 14 & 16 - Was 6803808 - A

2

LINK NLA - Order 6805374 - Was 6803212 - A

2

6805374

LINK Was 6803212 - A

3

7173235

LINK, GUIDE W/A Was 7127600 - A

4

7173234

LINK, GUIDE Was 7129624 - A

5

6534115

PIN, PIVOT

6

6596216

PIN Was 6595660 - A

7

6534154

RING

8

6560382

PIN, LOCK Lock Ring

9

6534111

WASHER

10

10H25

FITTING, GREASE 5

11

6652943

COVER grease fitting

12

6595222

PIN Arm mounting

13

6665374

CHAIN

14

6539825

BUSHING, PRESS FIT Incl. W/Arm 6595344 - 1 3/4 '' (45mm) Long

14

6803213

BUSHING, PRESS FIT Incl. W/Arm 6803808 - 2'' (51mm) Long

15

CYLINDER See Illustration BUCKET CYLINDER/ C3396 - Bucket

16

CYLINDER See Illustration ARM CYLINDER/ B20421 - Arm

17

6539110

BUSHING, PRESS FIT Incl. W/Arm 6595344 - 1.9'' (48mm) Long

17

6815277

BUSHING Incl. W/Arm 6803808 - 2'' (51mm) Long - Was 6803207 - A

18

BUCKET

19

6535313

SHIM

20

6652915

SEAL, OIL seal

21

6596238

PIN, PIVOT pin

22

1EM380

WASHER

23

53DM30

NUT nut

24

6803309

BUSHING, PRESS FIT Use W/Link 6803212

25

6803213

BUSHING, PRESS FIT Use W/Link 6803212
