Запчасти Bobcat 331 BUCKET CYLINDER (S/N 512912000 & Above) HYDRAULIC SYSTEM

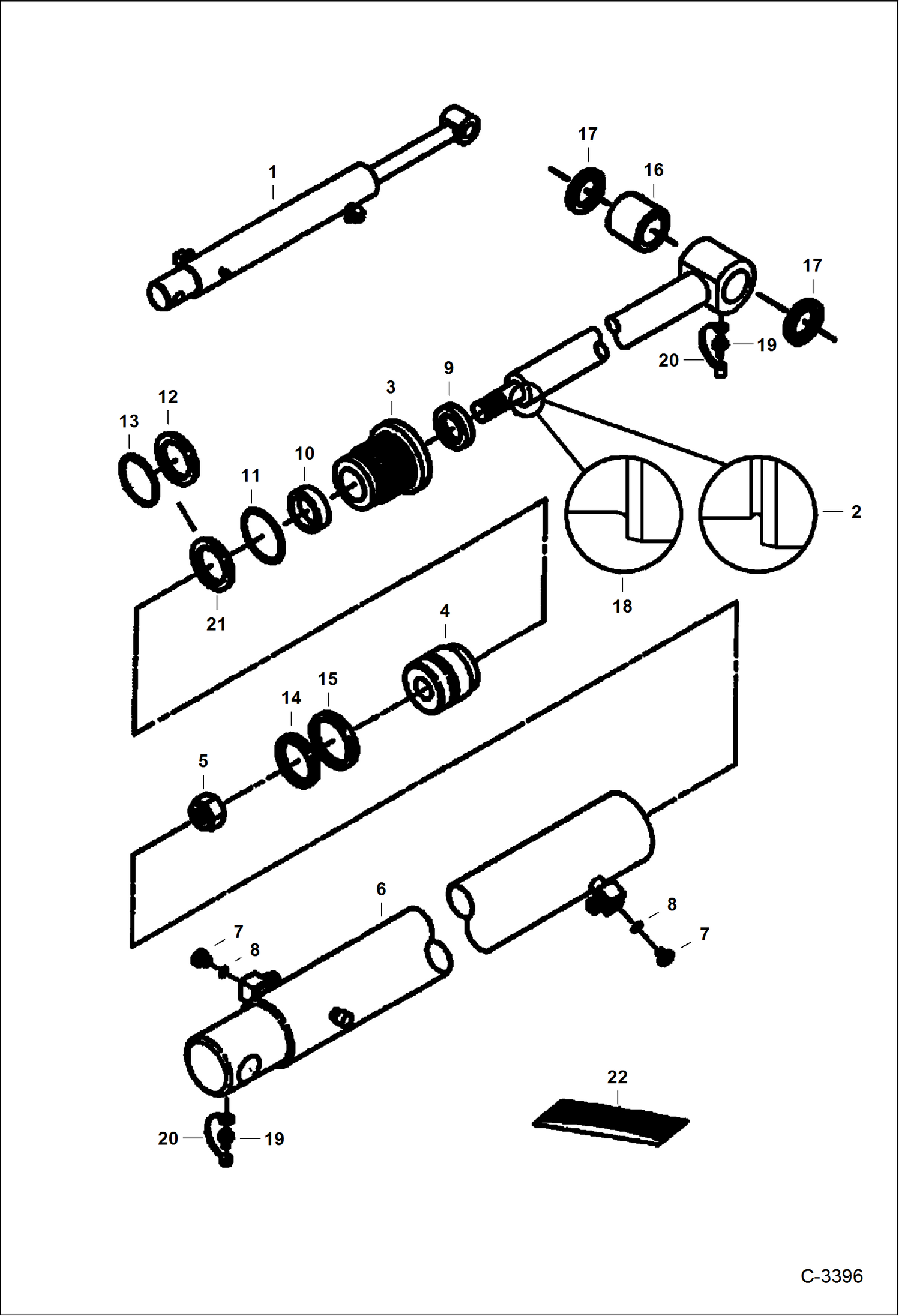

Схема запчастей Bobcat 331 - BUCKET CYLINDER (S/N 512912000 & Above) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

CYLINDER NLA - W/Ref. 2-15, 19 & 20 - Order 7147899 - Also Order Ref. 16 & 17 - Was 6806102 - A

1

7147899

CYLINDER W/Ref. 3-15, 18 & 19 - Also Order Ref. 16 & 17

2

ROD NLA - Order 7147445 rod & 7147314 piston - Also Order Ref. 16, 17 & 19 - Was 6803810 - A

3

6537294

HEAD

4

7147314

PISTON Was 6809560 - A

5

6810540

NUT Was 92D20 - D

6

6806103

HOUSING W/Ref. 7 & 8 - Was 6596727 - A

7

PLUG NLA - W/Ref. 8 - flat boss face - Was 47K5 - A

7

90KV5

PLUG W/Ref. 8 - tapered boss face

8

79K6

O RING 10 flat boss face

8

95K6

O'RING tapered boss face - A

9

6686998

WIPER, ROD CYL Was 6666545 - A

10

6667328

SEAL

11

82K236

O-RING Was 58K000236B - A

12

73K234

BACK-UP RING back-up - Was 80K234 - A

13

58K234

O RING 10 Was 54K40300 - B

14

25K30226

O RING 10 Was 54K30226 - B

15

6513466

PISTON RG piston

16

6804139

BUSHING Was 6803683 - D

17

6652915

SEAL, OIL Dust

18

7147445

ROD Also Order Ref. 16, 17 & 19

19

10H25

FITTING, GREASE 5

20

6652943

COVER grease fitting

21

7008354

SEAL, QUAD

22

7137966

SEAL KIT W/Ref. 5, 9-11, 14, 15, & 21 - Was 6810470 - A

Выбрано товаров: 25
