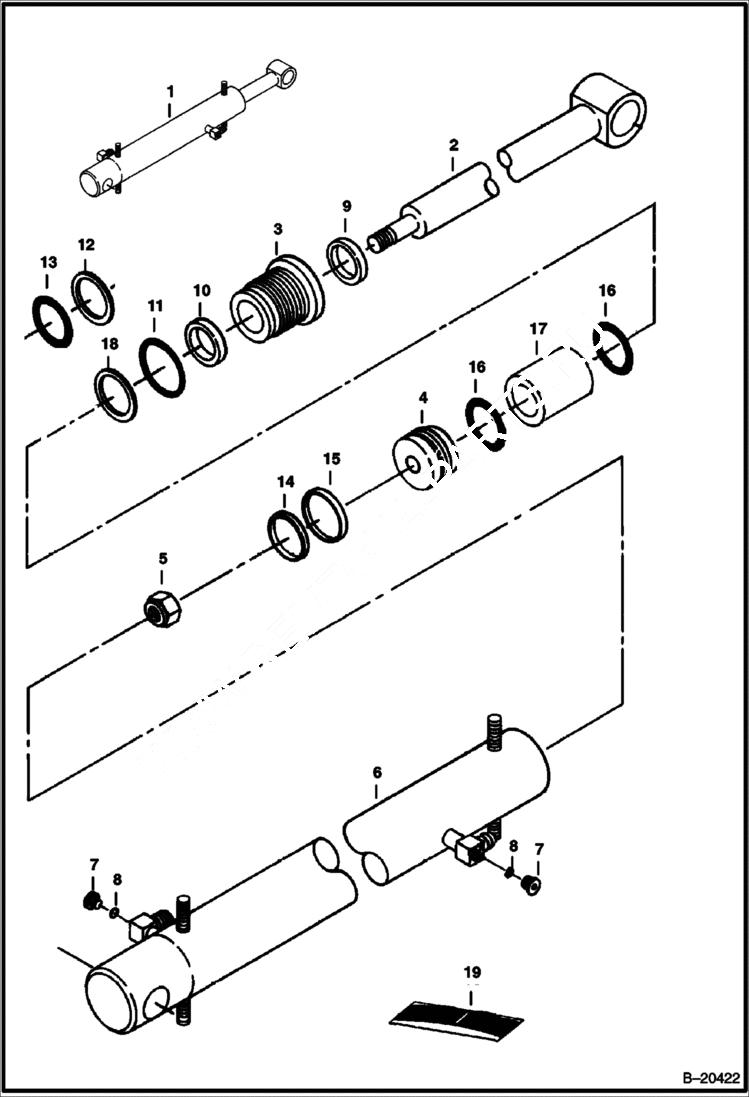

Запчасти Bobcat 331 BLADE CYLINDER HYDRAULIC SYSTEM

1

6595987

CYLINDER Ref. 2-17

2

6537568

ROD

3

6534985

HEAD

4

6537179

PISTON

5

92D16

NUT

6

6596076

HOUSING W/Ref. 7 & 8

7

PLUG NLA - W/Ref. 8 - flat boss face - Was 47K000002B - A

7

90KV2

PLUG tapered boss face - Was 90KV00005B - D

8

79K3

O RING 10 flat boss face - Was 79K000006B - D

8

95K3

O'RING tapered boss face - Was 95K000006B - D

9

6686999

WIPER, ROD CYL Was 6666544 - A

10

6667327

SEAL Was 6538140 - A

11

82K238

O-RING - A

12

RING NLA - back-up - Order Ref. 18 - Was 73K338 - B

13

O RING 10 NLA - Order Ref. 18 - Was 58K338 - B

14

25K30300

O RING 10 Was 54K30300 - A

15

1530265

PISTON SEAL Seal

16

25K40124

O RING 10 Not included with seal kit

17

6595990

SPACER

18

7008353

SEAL, QUAD

19

7196896

KIT, SEAL Ref. 5, 9-11, 14, 15 & 18 - Was 7138009 - A
