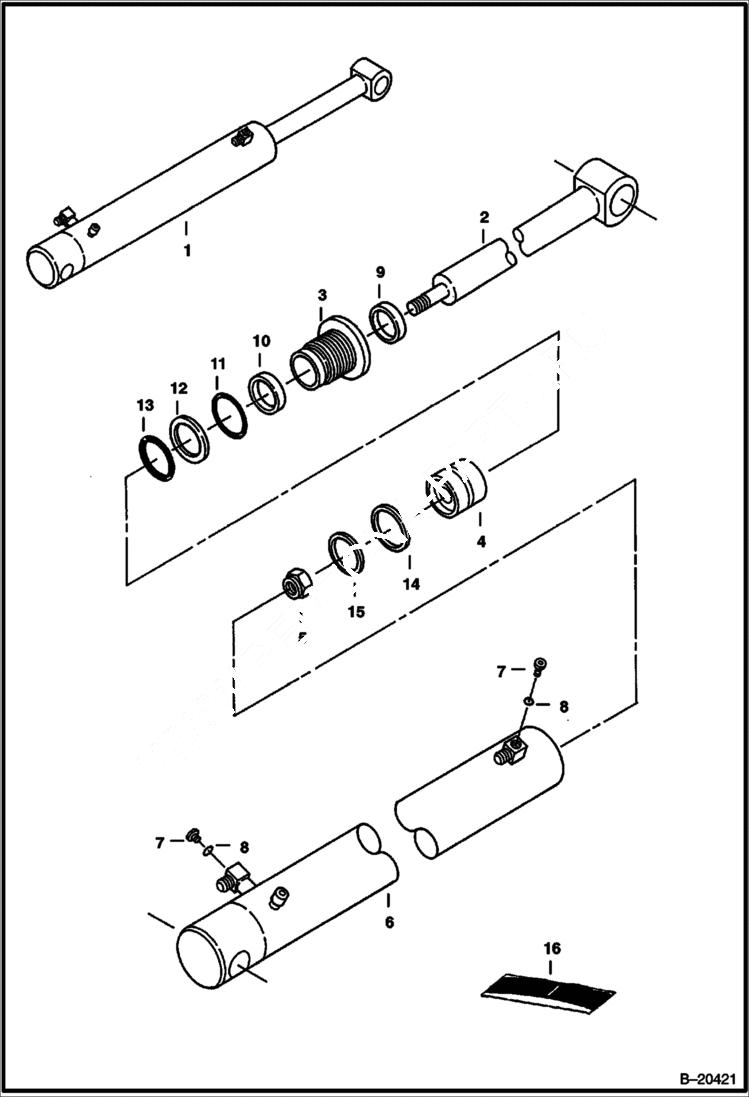

Запчасти Bobcat 331 ARM CYLINDER (S/N 512912000 & Above) HYDRAULIC SYSTEM

1

CYLINDER NLA - W/Ref. 2-15 - Order 6803798 - Was 6595863 - A

2

6596701

ROD

3

6586568

HEAD

4

6589401

PISTON

5

6810539

NUT Was 6804592 - A

6

HOUSING NLA - Was 6596700 - A

7

PLUG NLA - W/Ref. 8 - flat boss face - Was 47K000005B - A

7

90KV5

PLUG tapered boss face

8

79K6

O RING 10 flat boss face

8

95K6

O'RING tapered boss face

9

6686999

WIPER, ROD CYL Was 6666544 - A

10

6667327

SEAL Was 6538140 - A

11

58K234

O RING 10 Was 54K40300 - B

12

73K232

RING, BACK-UP back-up - Was 80K232 - A

13

25K40224

O RING 10 Was 54K40224 - B

14

25K30218

O RING 10 Was 54K30218 - B

15

947088

RING, BACK-UP

16

6804603

SEAL KIT W/Refs.5, 9-15 - Was 6803269 - A
